Most important advantages:
Belt metal grinding machine SM75 is intended for rough grinding, metal edge processing, welding seams grinding, etc.
Various materials can be ground with the help of the machine. The resulting sparks and smoke can be easily removed by additionally connecting the extractor of the MDC750 series to the grinding machine. Simple and convenient operation, at the same time quiet and robust during operation.
Well-balanced rollers ensure vibration-free operation.
Significantly saves time when grinding.
Enclosed on/off switch conforming to IP54 standard with low voltage cut-out switch
The machine must be operated in indoor conditions.
Powerful 3-phase voltage electric motor.
Quick and easy sanding belt change.
Large grinding surface, adjustable limiters - universal purpose.
Design and technology

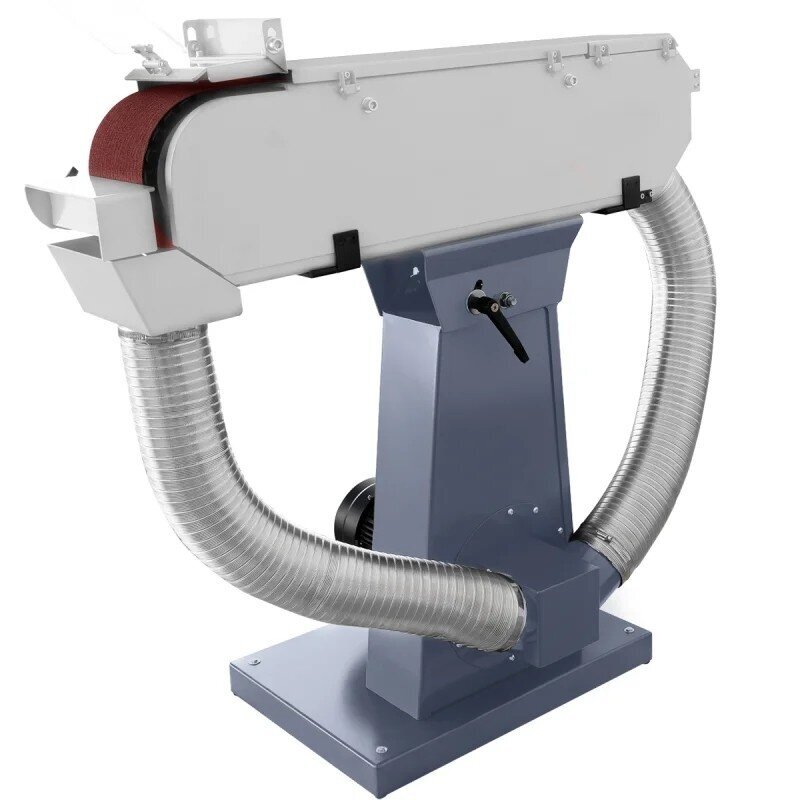

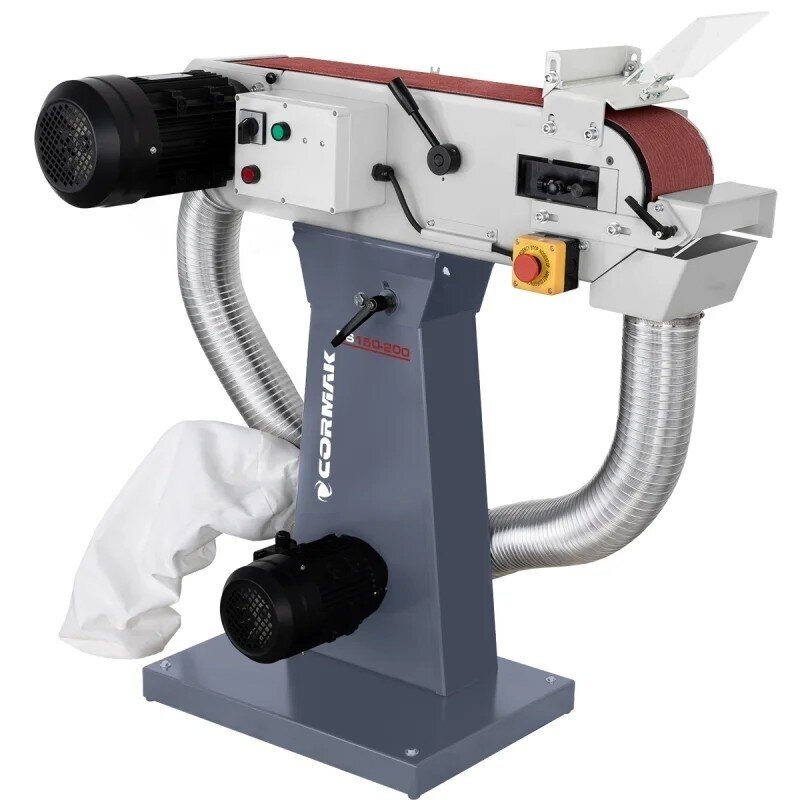

The stationary grinder CORMAK BS150-200 is built on a welded steel frame ensuring rigidity and resistance to dynamic loads. The integrated extraction system with a 0.37 kW motor and two Ø100 mm nozzles guarantees high dust and grinding chip removal efficiency. The main 3.0 kW motor provides sufficient power for the most demanding machining tasks.
Precision and performance

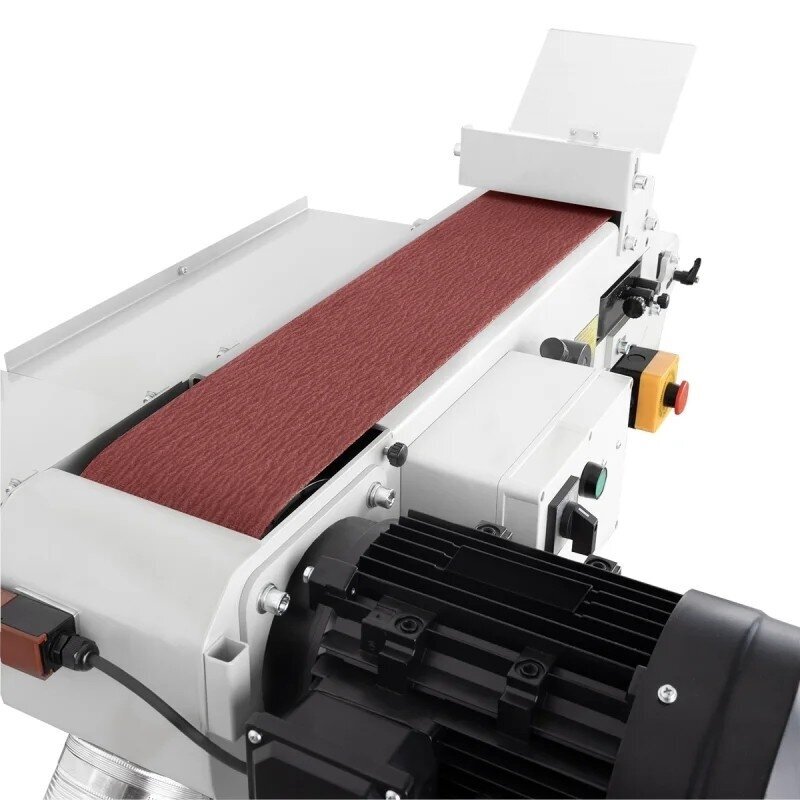

With a belt width of 150 mm and length of 2000 mm, the machine offers a large contact area, shortening processing time and increasing efficiency. Two working speeds allow quick switching between rough grinding and fine finishing. The ergonomic design and spring belt tensioning system maintain correct tension throughout the working cycle.
Applications
The CORMAK BS150-200 belt grinder for metal is suitable for:
production facilities processing steel, stainless steel, and aluminium,
welding and locksmith workshops,
surface preparation and finishing areas,
edge, weld, and flat surface grinding.
Standard equipment
Stable steel base with tilt adjustment
Abrasive belt 2000 × 150 mm
Built-in extraction system with bag and Ø100 mm connectors

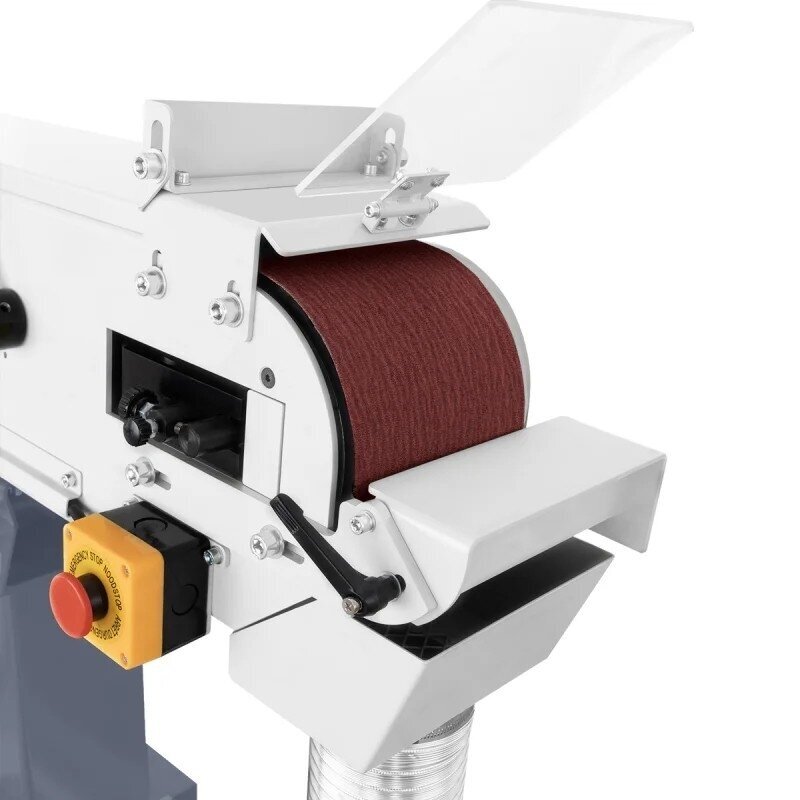

Anti-spark and dust protection cover
Tilting protective shield
Technical data
|
Worktable size |
480 × 150 mm |
|
Belt speed |
15/30 m/s |
|
Grinding belt dimensions (L×W) |
2000×150 mm |
Power supply
|
3-phase, 400 V
|
|
Motor speed |
1400 / 2800 rpm |
|
Total power / Extraction motor power |
3 kW / 0,37 kW |
|
Extraction nozzle diameter |
2 × Ø100 mm |
|
Chip bag diameter |
Ø 320 mm |
|
Chip bag length |
650 mm |
Dimensions
|
1000 × 650 × 1150 mm |
|
Weight |
117 kg
|
