Most important advantages:

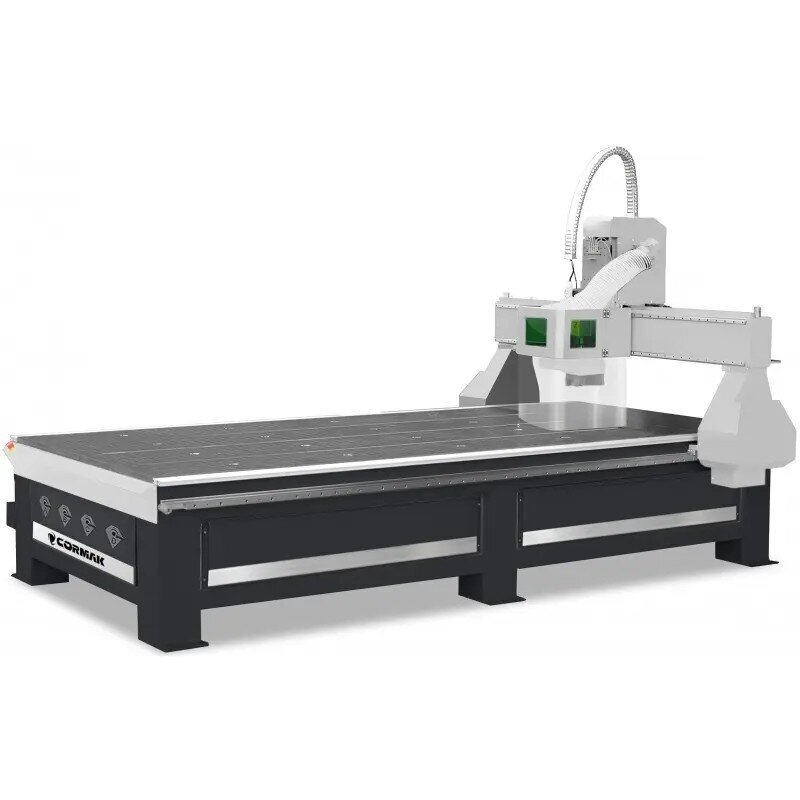

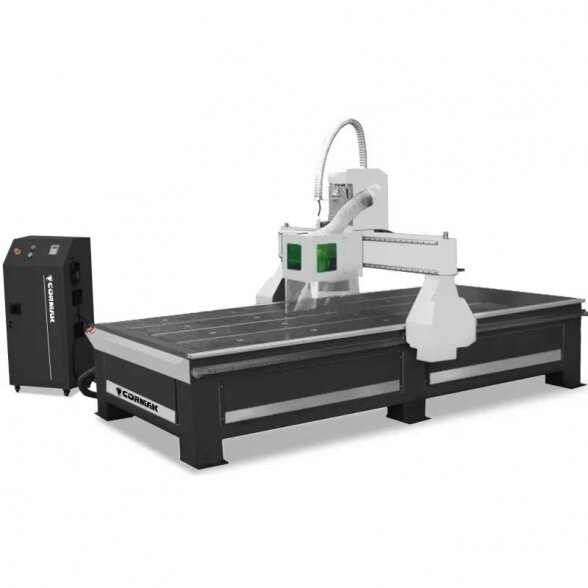

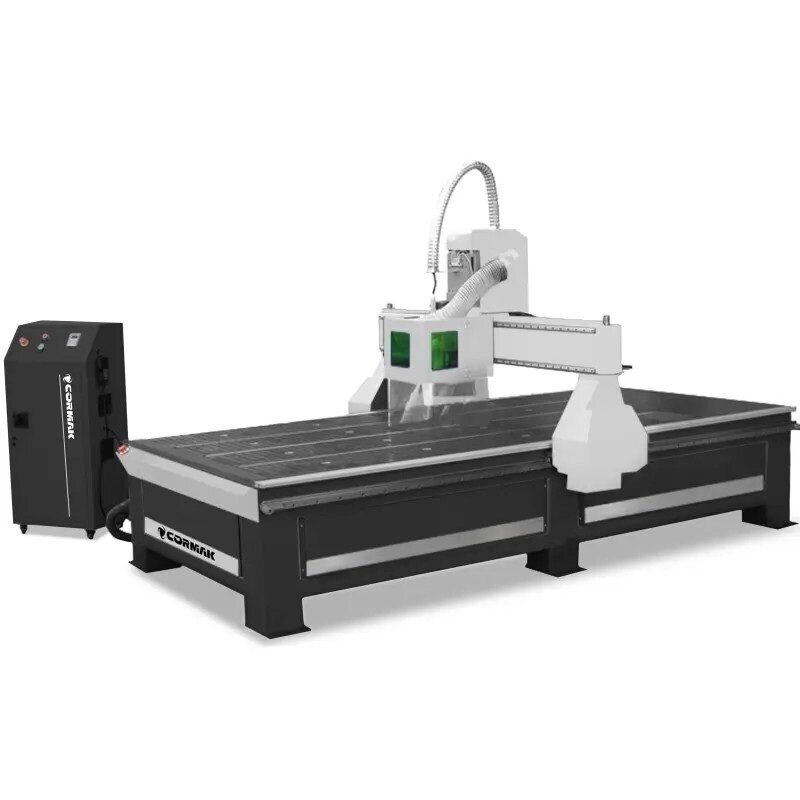

Construction

Welded steel rigid structure,
The arms of the gate are made of hardened, thick, powder-coated sheet metal, which has increased stiffness, which translates into the quality of the processed detail.

Workbench

The work table was made in hybrid technology,
It has T-slots for manual fastening of material with dimensions of 1500 x 2000mm,

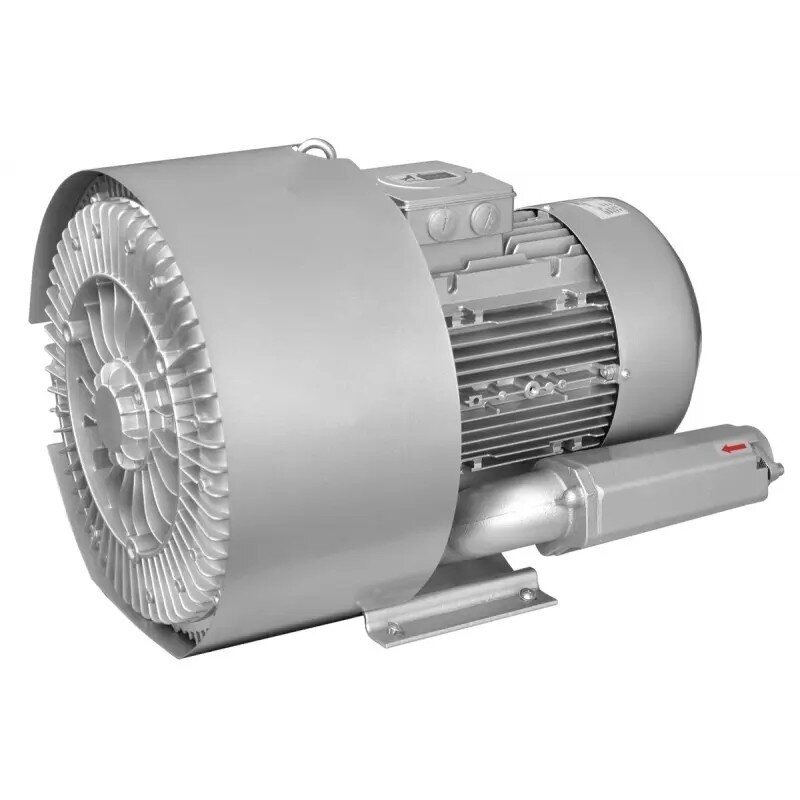

An autopsy table with four independent vacuum sections.

Drive

SERVO motors used to drive high-power machine tools, ensure appropriate acceleration and speed in individual directions.
The X and Y axes feature high-quality toothed bars praised by users, which ensure high durability and precision,
The Z axis is driven by a high quality ball screw.

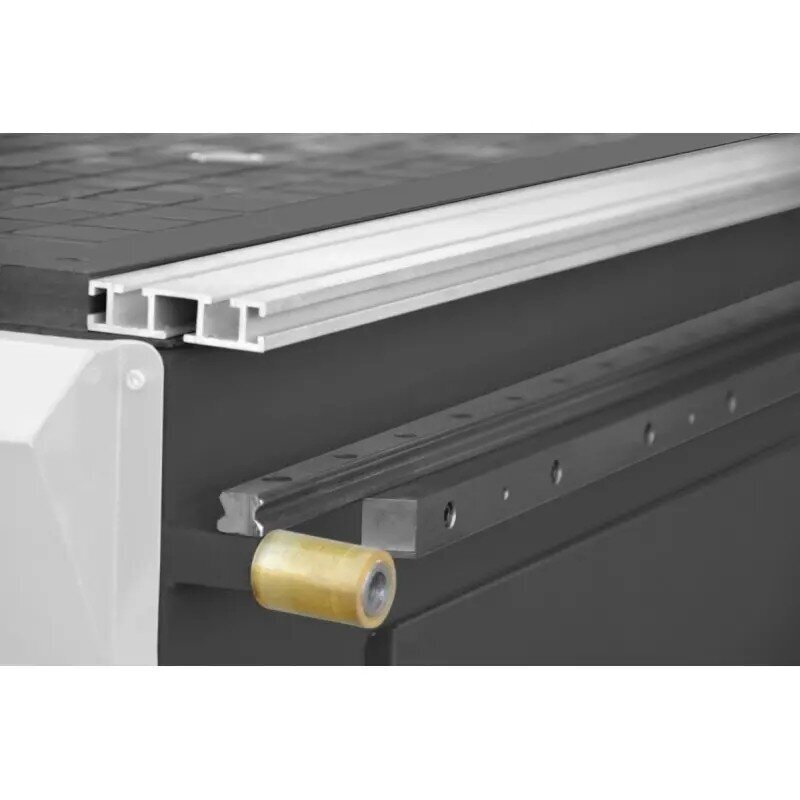

All axes move on rail guides.

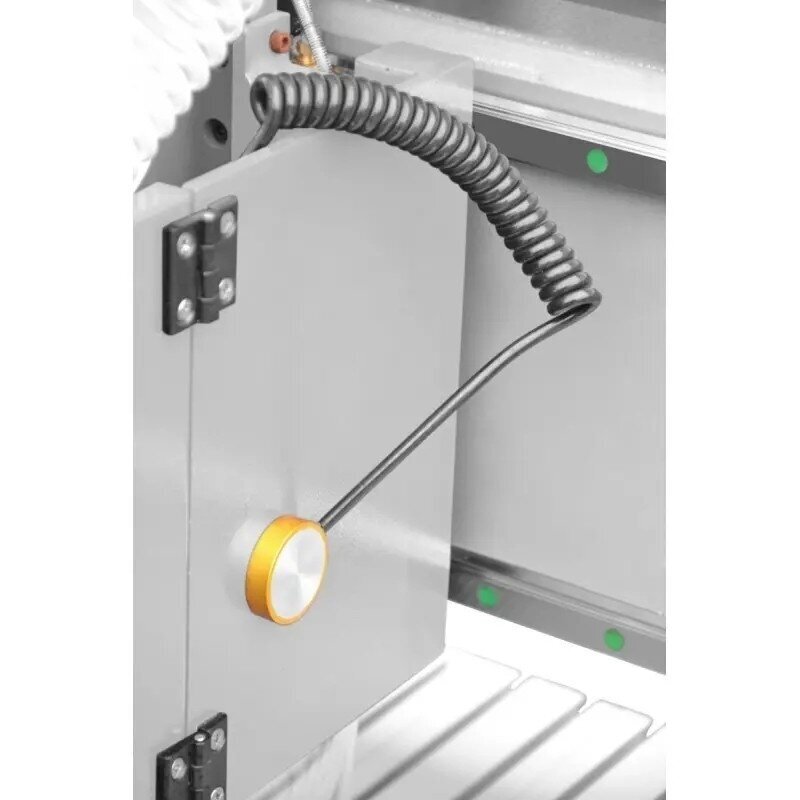

Machine equipped with tool height sensor
Linear bearings: trapezoidal rails, Hiwin carriages

Spindle

High-end brushless spindle that is durable.
Additionally equipped with an innovative AIR / non-liquid cooling system!
The construction of the spindle uses high-quality sealed bearings, characterized by very quiet operation and guaranteeing increased durability.
Tool height measurement sensor - included.
Spindle speed range is 4,500 to 18,000 rpm.
Tool clamping with 3 pcs ER32 collets, diameters 1/8", 1/2" and 5-6mm

Software

Software included in the price of the machine (the software provides the ability to import files from Corel, Autocad, etc. File import/export, text editor and input, and many other functions)
The software enables quick and easy design of elements, which the program then converts into the so-called. G-code. It is also possible to import ready-made files from other programs.

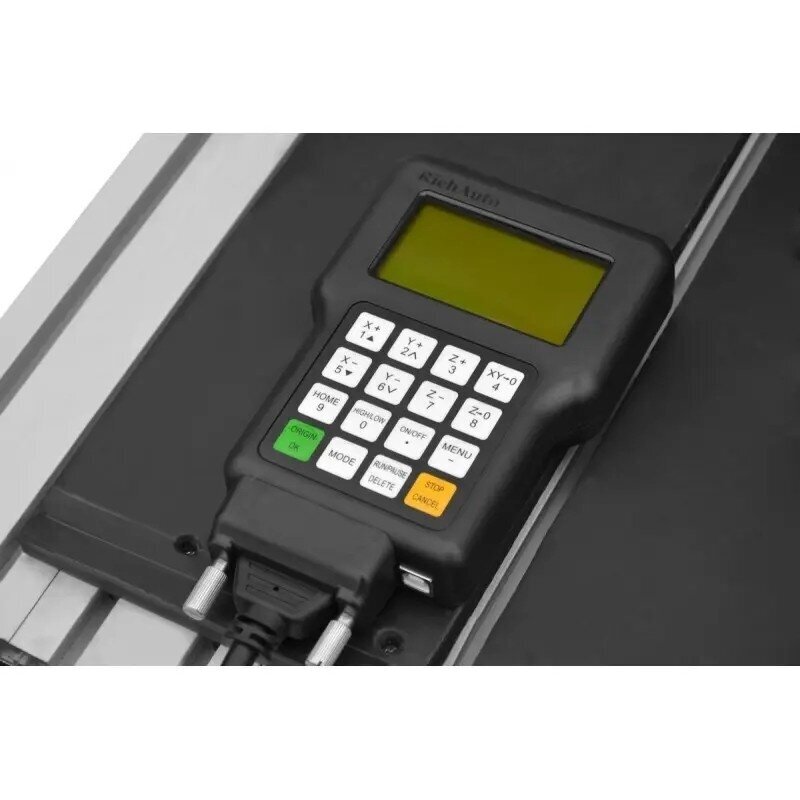

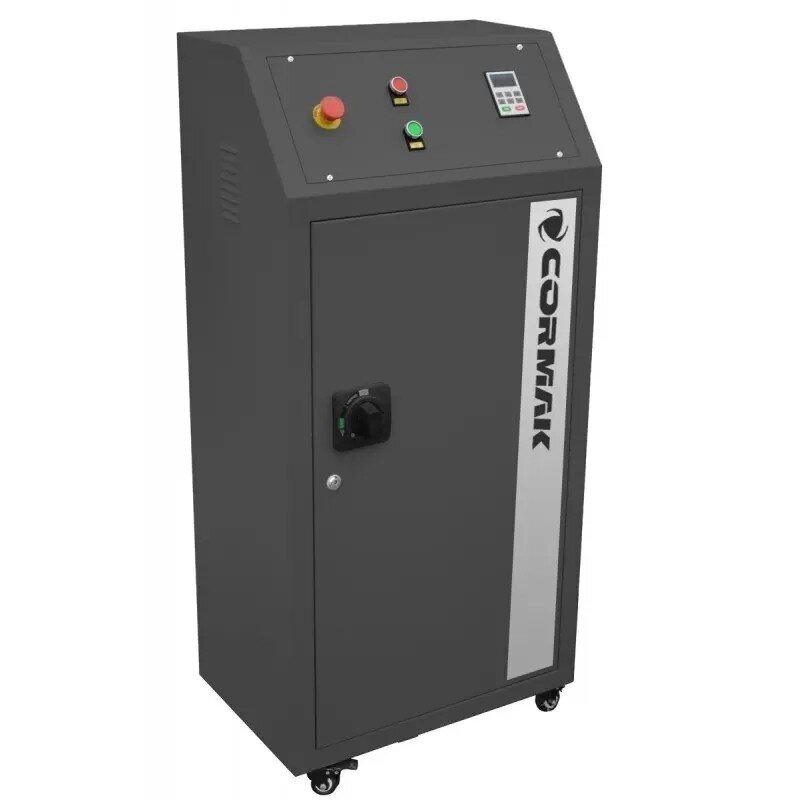

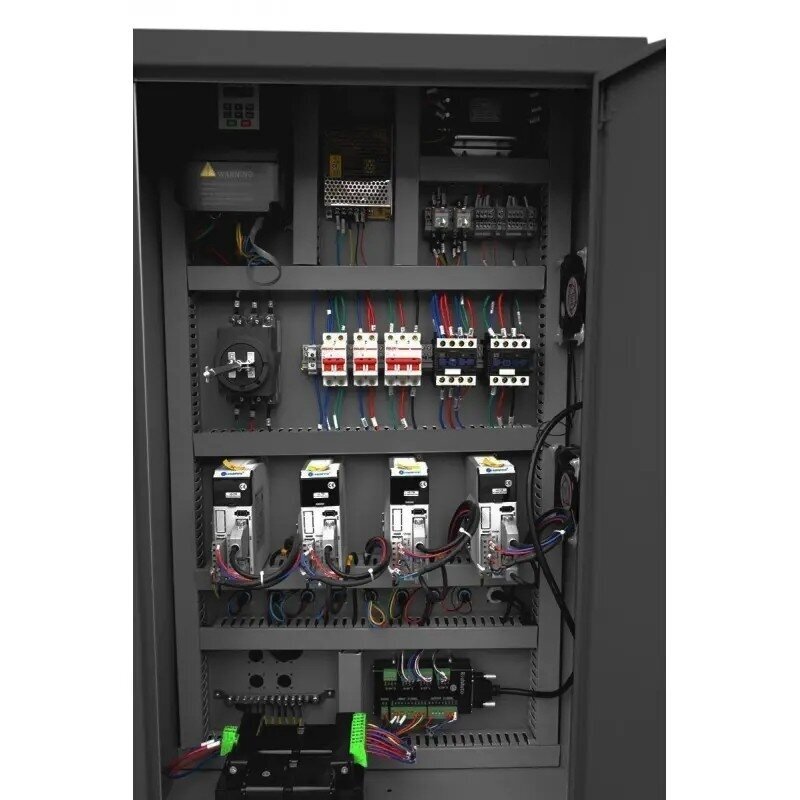

DSP control

Digital Signal ProcessingDigital Signal Processing
The DSP controller of the machine has its own processor and operating memory, which ensures trouble-free operation and simple operation of the machine.
The driver ensures smooth operation of the device and accuracy in machining.
There is no need to reinitialize the program after a power loss.
The memory built into the controller allows the machine to work without having to load the program each time.
