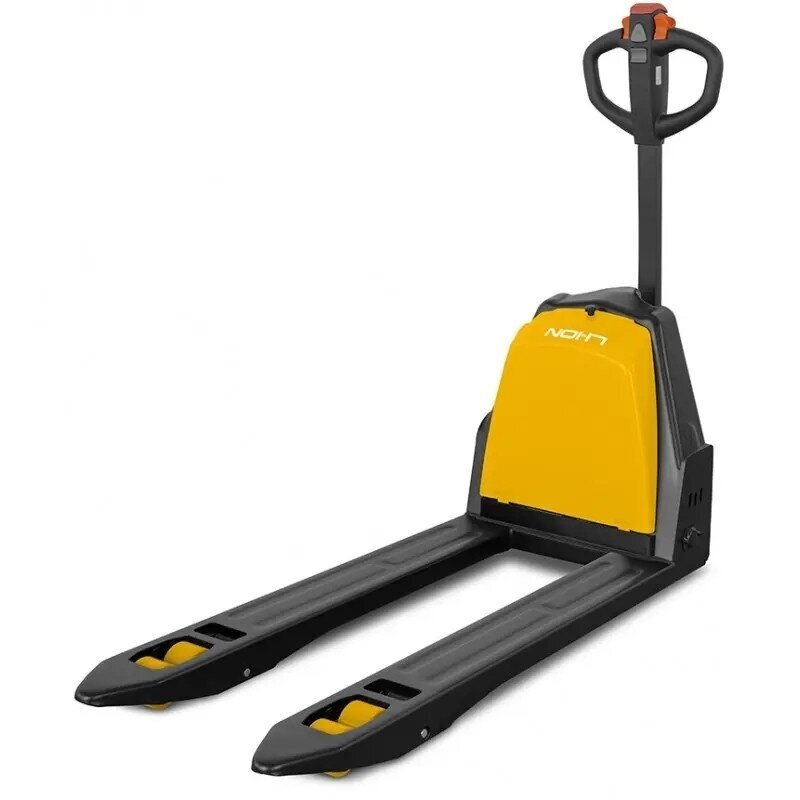

Cormak Electric Pallet Stacker Forklift Q15-3 1500kg Li-Ion

  • Cormak Electric Pallet Stacker Forklift Q15-3 1500kg Li-Ion

    980.00
    (809.92  VAT excl.)
    Want another price? Suggest yours!
    In stock.
    Manufacturer
    Cormak
    Brand
    Cormak
  • Most important advantages:

    The truck is equipped with an efficient 0.75 kW drive motor and a 0.8 kW lifting motor, which ensures smooth operation and high transport efficiency. The travel speed is 4.5 km/h with a load and 5 km/h without a load, which guarantees fast movement around a warehouse or other facility. The device has an electromagnetic brake, which increases the safety of use and allows precise stopping of the pallet truck.

    The reliable 48V 10Ah lithium-ion battery provides up to 3 hours of continuous operation. The efficient 48V 10Ah lithium battery (equivalent to a 24V 20Ah battery) has a lifespan of up to 2000 cycles when used correctly. Fast charging in 2.5 hours minimizes downtime, which is crucial in intensively used warehouses. The lithium-ion battery is characterized by a longer lifespan and greater efficiency.

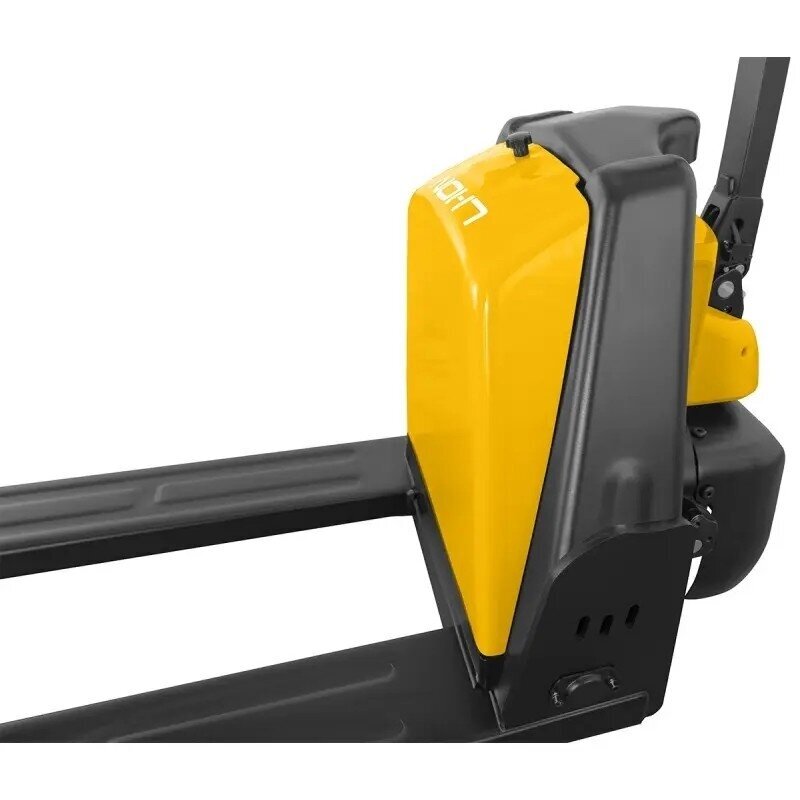

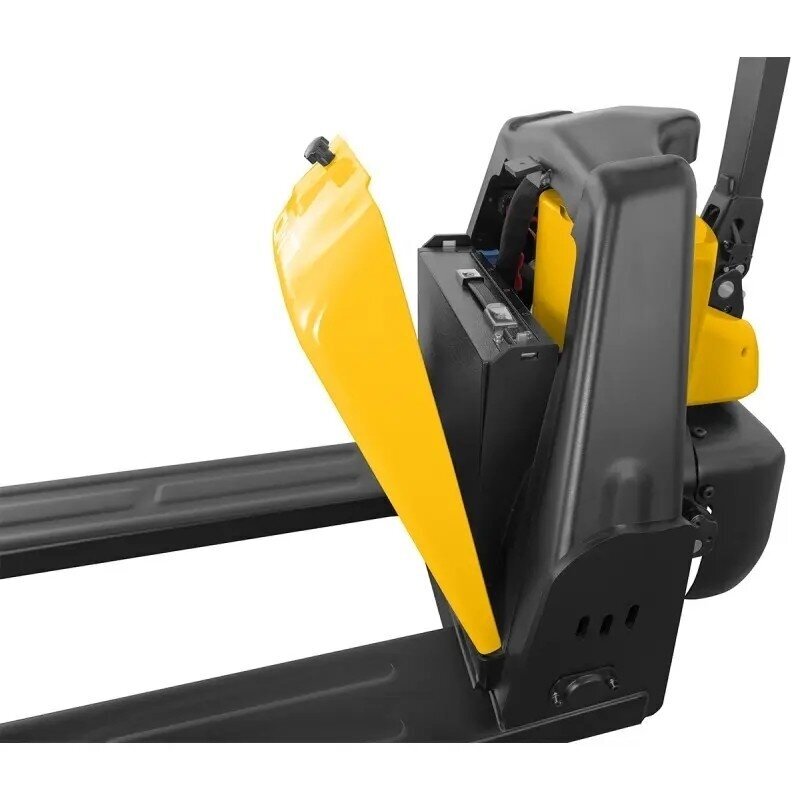

    The battery is placed under a cover, which protects it from damage and dirt. The design of the trolley allows for easy removal of the battery, which significantly facilitates its replacement or charging outside the device. This solution allows for quick preparation of the trolley for further work, eliminating the need for long operational downtimes.

    Technical data

    Payload
    1500 kg
    Turning radius
    1400 mm
    The height of the raised forks is 190 mm
    Lowered fork height 80 mm
    Fork length 1150 mm
    Fork width 560 mm

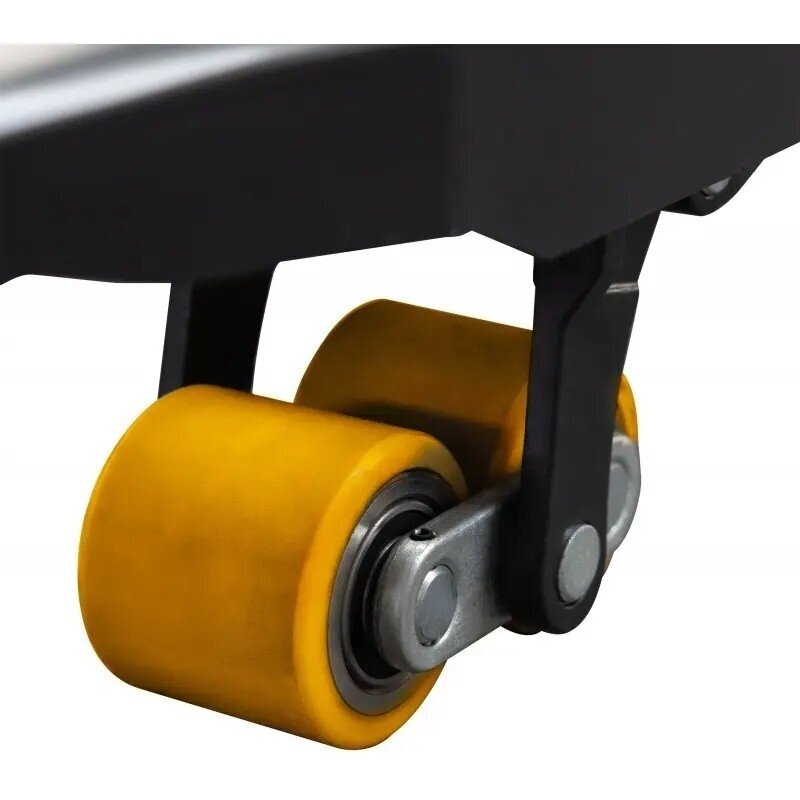

    Wheel diameter 80/190 mm
    Battery voltage / nominal capacity
    48/10 V/Ah Li-ion (equivalent to 24V/20Ah)
    Brake elektromechaniniai
    Travel speed with/without load 4,5 km/val
    Max Gradient Loaded/Unloaded 8/16 %
    Weight 115 kg
    Dimensions 1566 x 685 x 1200 mm
