Most important advantages:
Automatic band saw work on manual and automatic modes.
Manual mode allows you to perform all activities manually from the machine's desktop.
Automatic mode - after switching on the machine, the entire cutting cycle, i.e. fixing the cut detail in the vice, its shift to a specific dimension to the cutting tape, leaving the arm to cut and its raising to the desired height after finished cutting takes place without the operator's operation.
Cutting parameters, such as the number of pieces of cut details, their dimensions, the speed of the cutting band, the speed of the arm's descent, are set on the control panel. The device automatically stops when the series is cut, the cutting band breaks or another failure identified by the cutter's control system is detected.

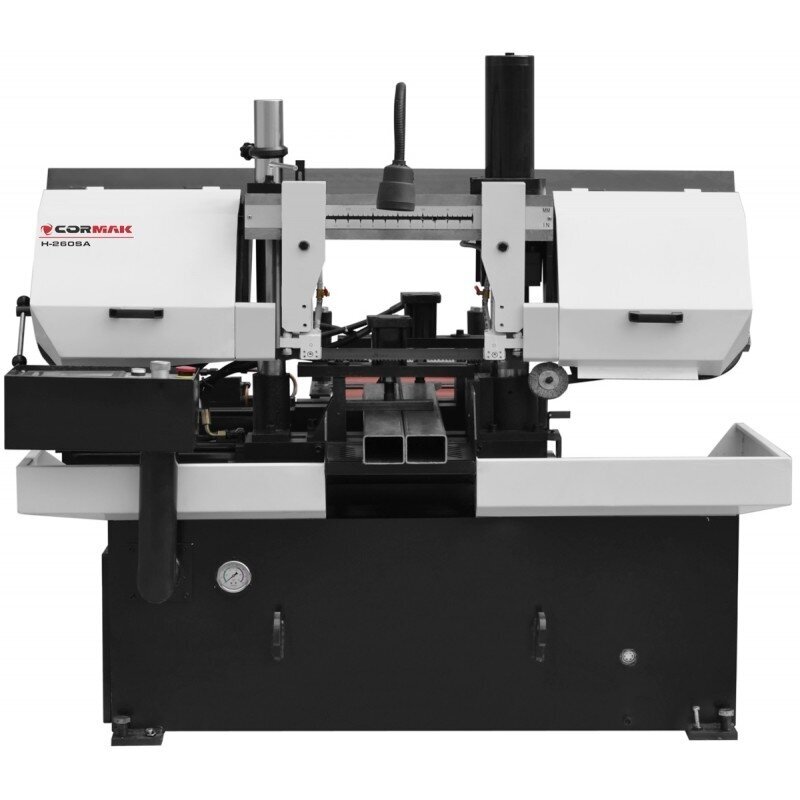

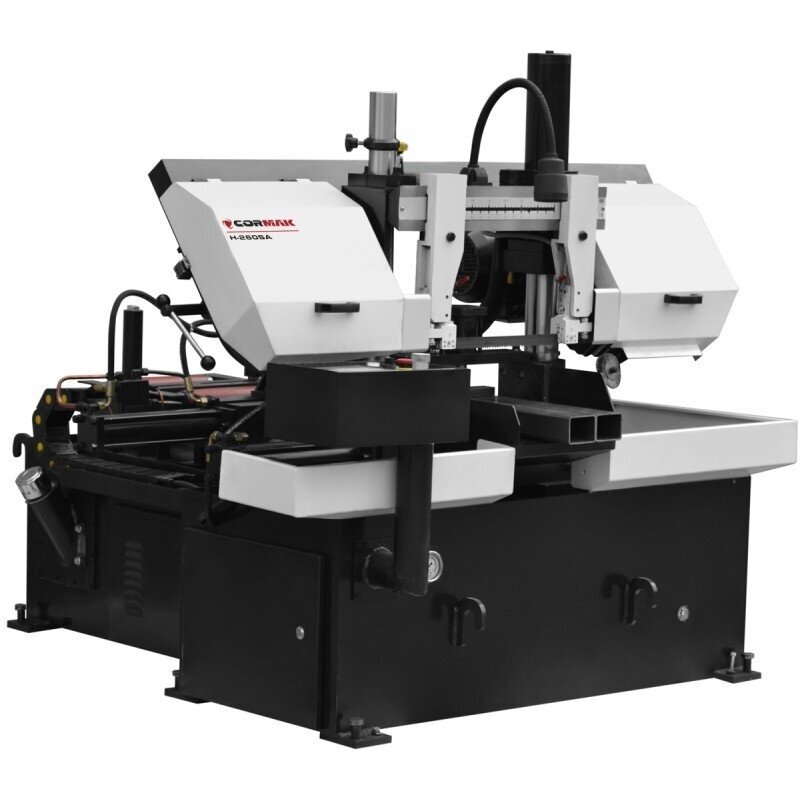

The body of the machine is a cast iron set on a rigid, spatial plate structure of the casing. Inside the housing there are: a hydraulic unit, a coolant tank with a pump and a chip feeder. The steel structure of the frame is inclined at an angle of 3 degrees to the surface of the feeding table, which is particularly beneficial when cutting rectangular elements and profiles.

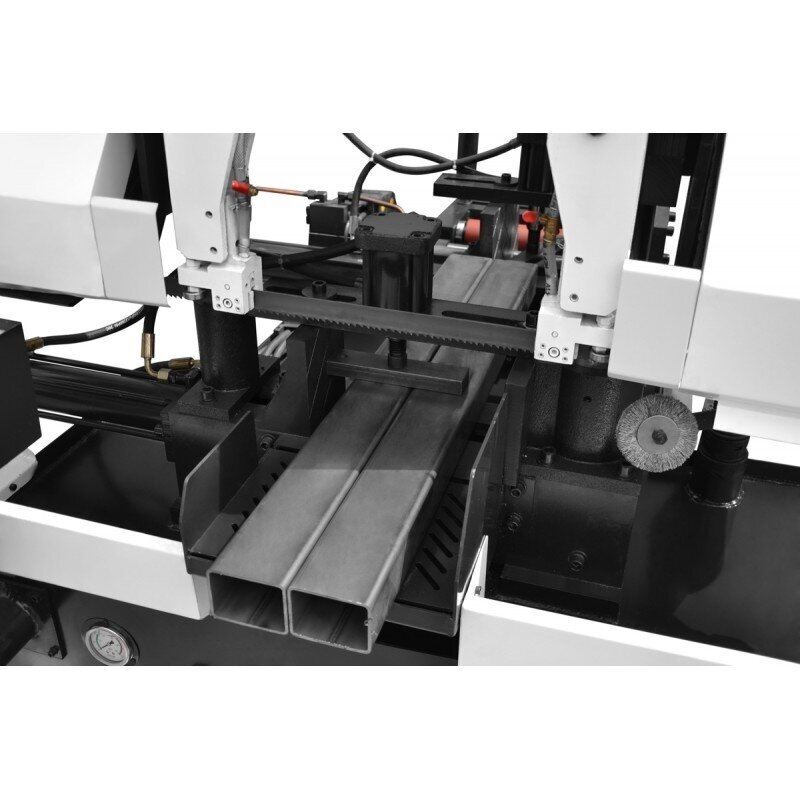

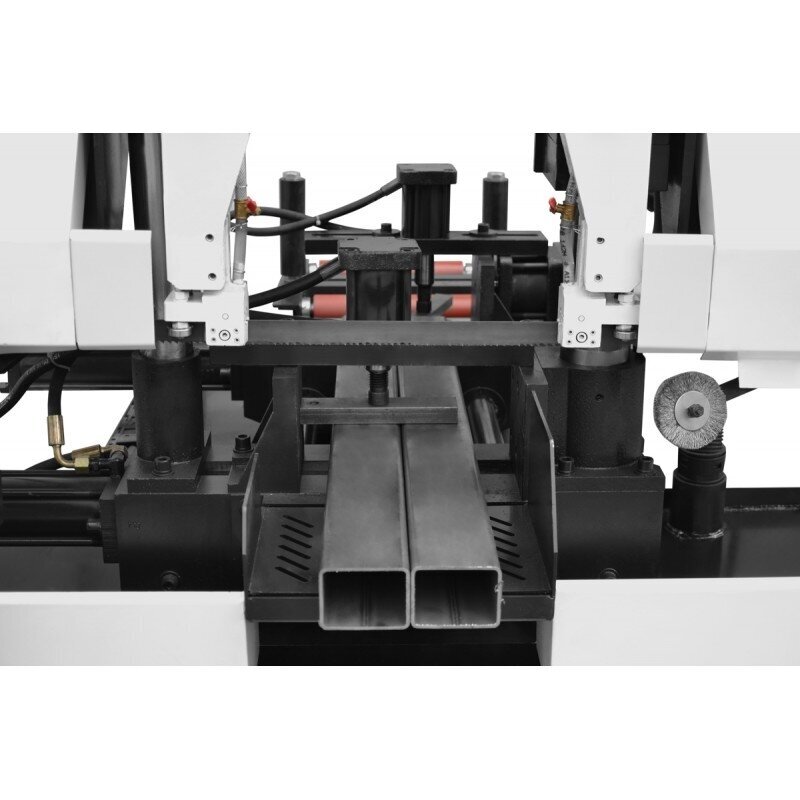

The drive of the cutting band based on an inverter-controlled motor ensures smooth regulation in a large range of speeds. The hydraulic tension of the belt allows for optimal working conditions of the belt. If the saw blade breaks, the machine stops automatically. Precise belt guidance is ensured by guides consisting of guide bearings and inserts made of sintered carbides. The movable tape guiding head is set depending on the size of the material to be cut, which increases the stability of the tape operation. Maximum cutting parameters and extended saw blade life are ensured by the cooling system and the cleaning brush.
The hydraulically forced lowering of the arm is regulated in a wide range by a precise throttle valve. The fast feed system allows you to shorten the time of cutting individual elements.

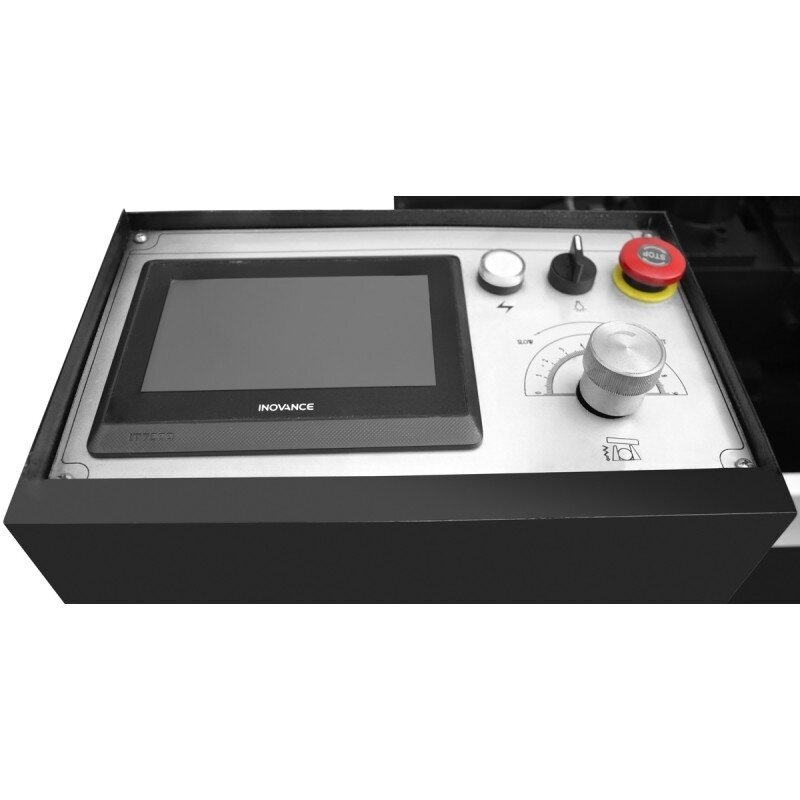

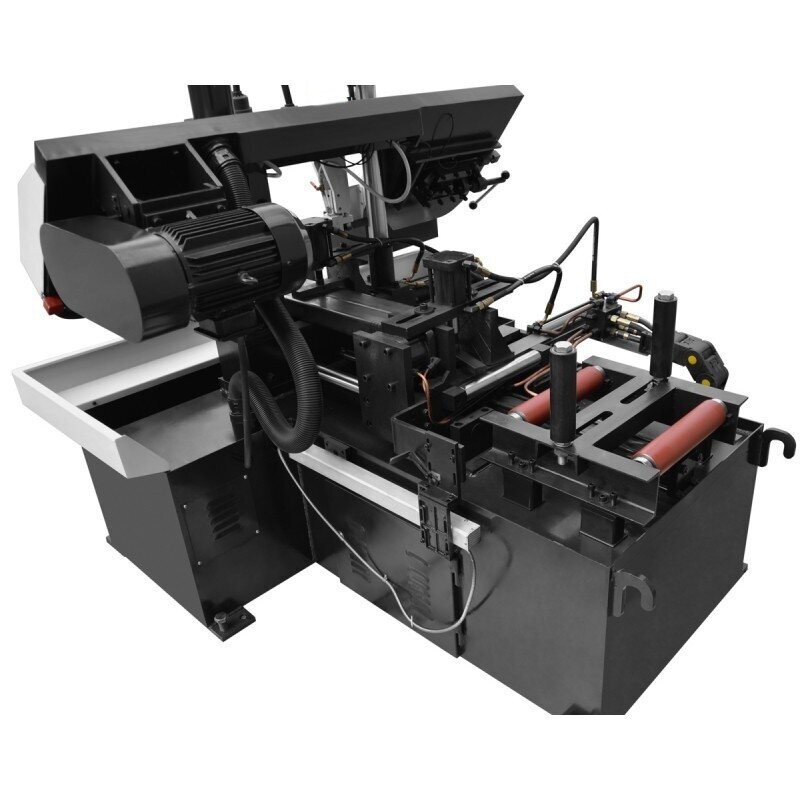

Hydraulic material feeding system ensures a fully automatic working cycle of the machine. The controller equipped with an LCD display allows you to program the operation of the saw, signals the end of the material, communicates errors and informs about the number of cut sections after the programmed time. The maximum material feed length in one stroke is 500 mm with an accuracy of +/- 0.2 mm per stroke.
Innovativeness and production of CORMAK semi-automatic and automatic series cutters according to norms and standards compliant with ISO:90001 and ISO:140001 certificates, guarantee safety, quality and product reliability. The use of motors licensed by a well-known and respected manufacturer on the global market, one of the world's leaders, ABB, guarantees long and trouble-free operation.
Technical data
Type
|
automatic
|
Cutting band size
|
3150×27×0.9 mm |
|
Band speed |
40 / 60 / 80 m/min
|
Power supply
|
3-phase, 400 V |
|
Total power |
2.2 kW |
Coolant pump power
|
0.09 kW |
Dimensions with base
|
1600х1800х1550 mm
|
|
Weight |
1000 kg
|
|
Angle |
 |
 |
|
0º |
ø260 |
260x260 |
