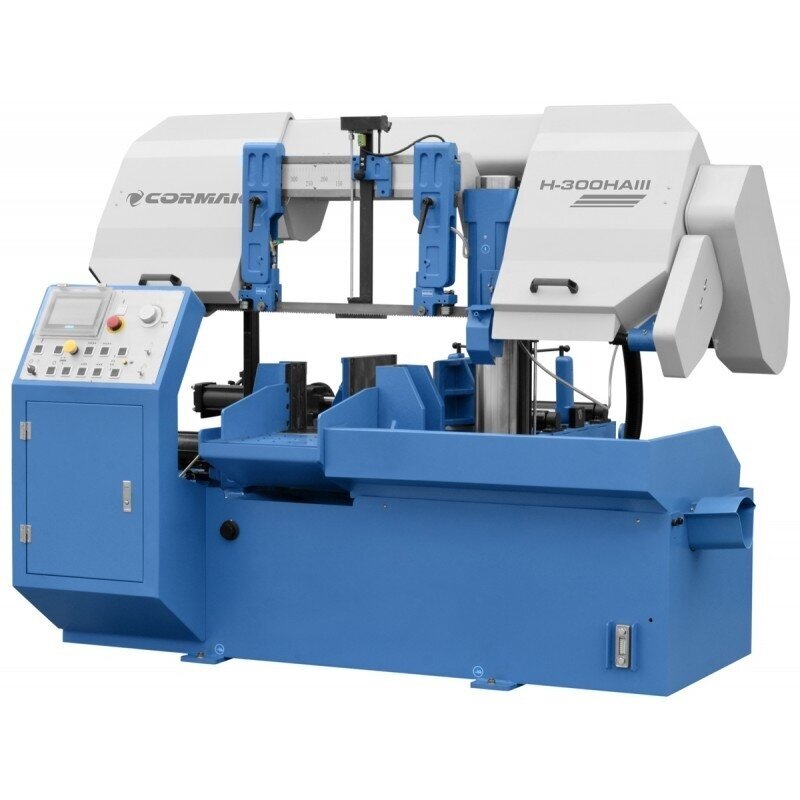

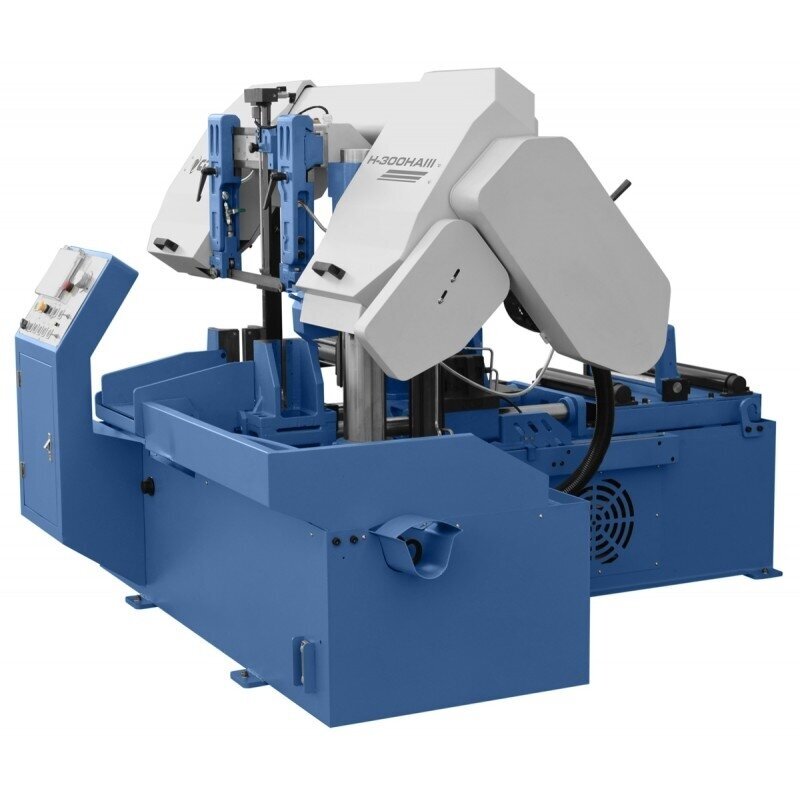

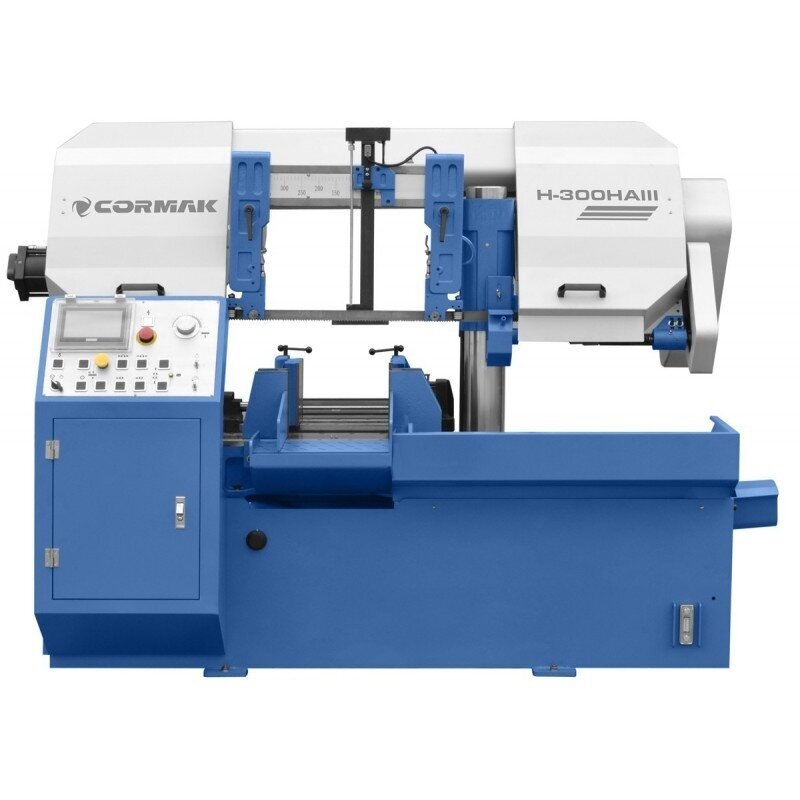

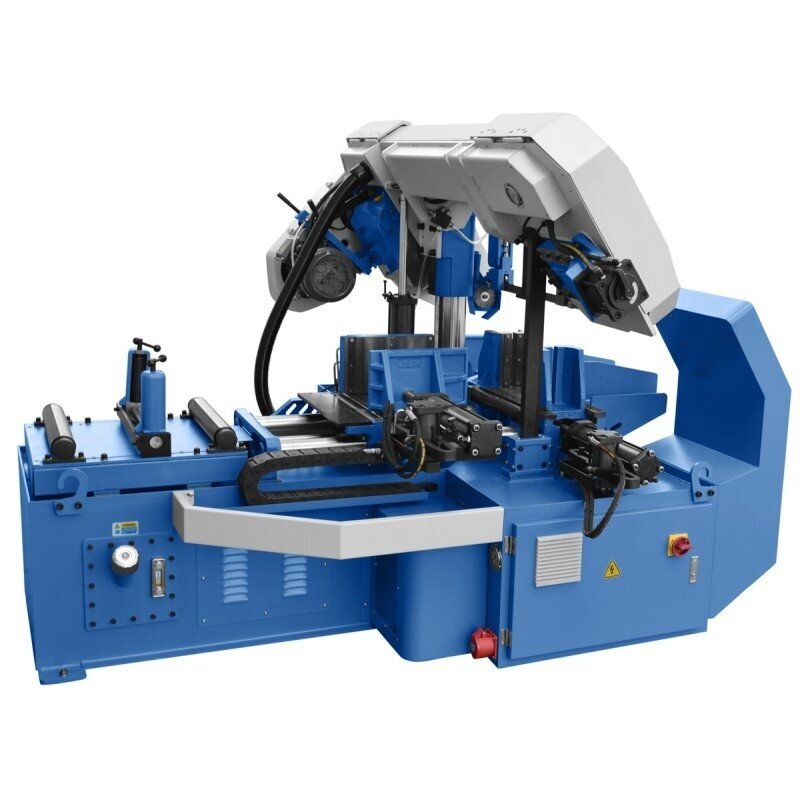

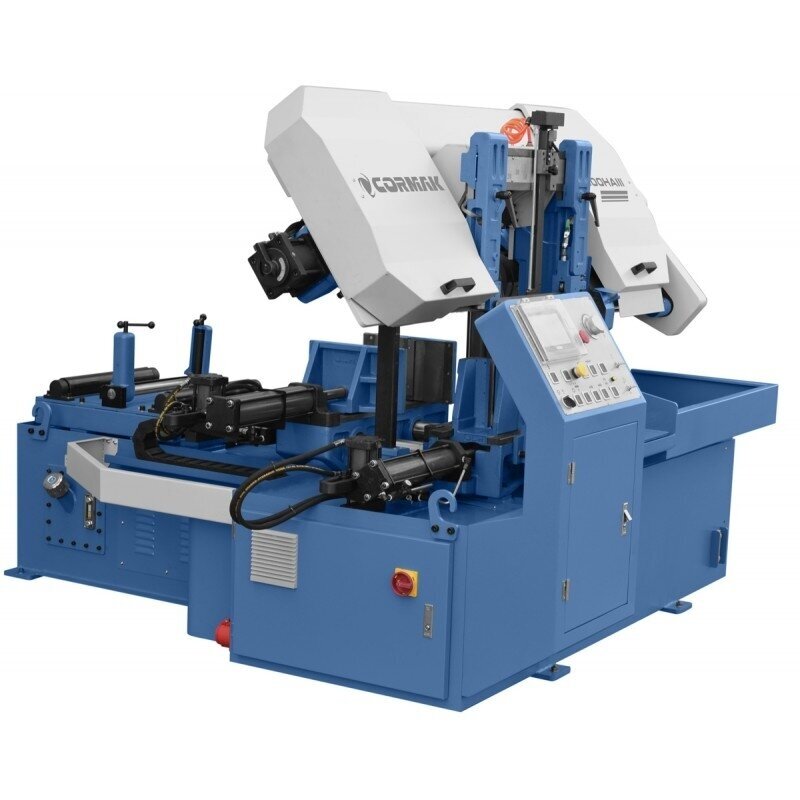

Cormak H 300 HA / C33 Automatic Column Band Saw

  • Cormak H 300 HA / C33 Automatic Column Band Saw

    18464.60
    (15260.00  VAT excl.)
    Want another price? Suggest yours!
    In stock.
    Manufacturer
    Cormak
    Brand
    Cormak
  • Most important advantages:

    This machine allows for cutting manually and automatically. Manual mode enables performing all activities manually, using machine's control panel. Automatic mode – after machine is switched on, the whole cutting process is done without its operator's interference, that is, mounting cut detail in the vice, its repositioning to set dimensions, lowering the cutting arm as well as its raising to the specified height after the cutting process is finished.
    Cutting parameters such as the number of cut details, their dimensions, cutting band speed and arm lowering speed are set on the control panel. Machine is stopped automatically when the cutting process is finished, the cutting band breaks or in the case of any other failure identified by the machine's operating system.

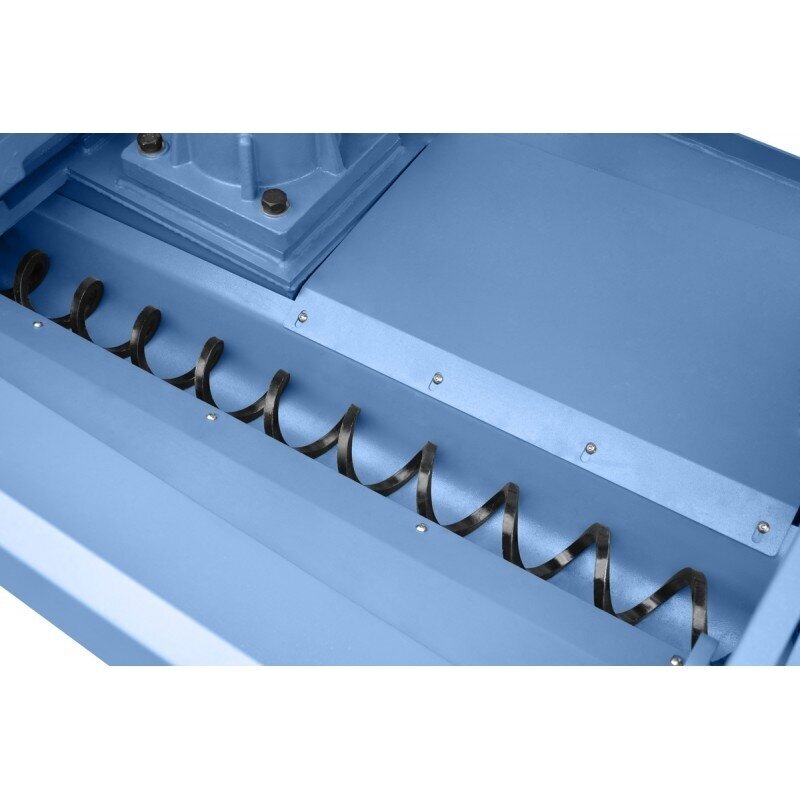

    Machine's body is made of cast iron, mounted on a rigid, spatial housing construction made of plates. The steel construction of the frame is inclined at an angle of 3º in relation to the feeding table surface, beneficial during cutting rectangular elements and shapes. Inside the housing are located: a hydraulic unit, a flood coolant container along with a pump and a chips container.

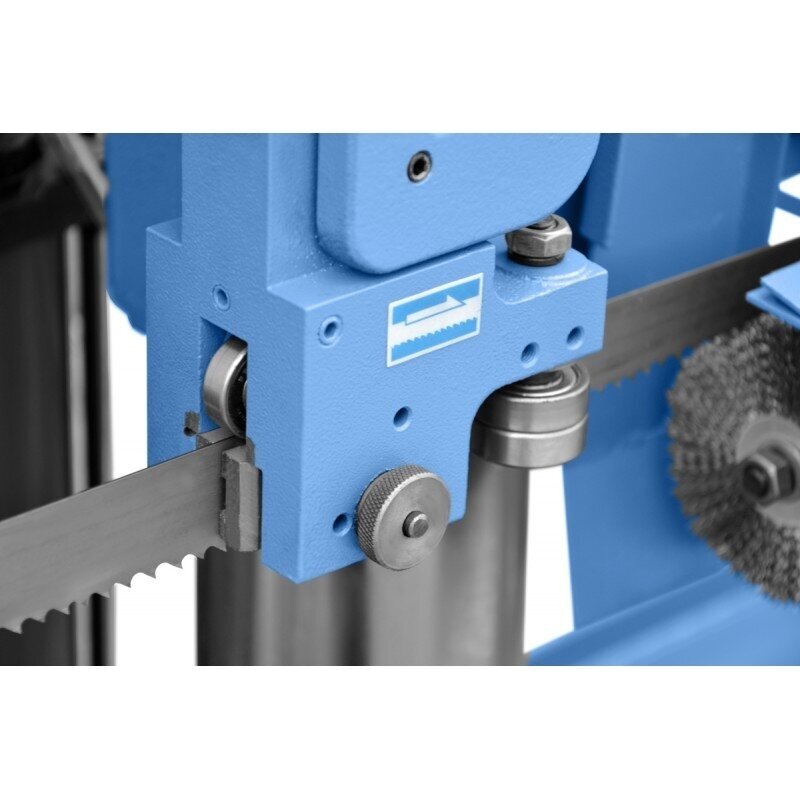

    Cutting band drive is based on a motor controlled with an inverter, providing smooth adjustment of a wide range of speed. Hydraulic band tensioning ensures optimum cutting band working conditions. In the case of band breakage the machine stops automatically. Precise band guiding is achieved by guides with bearings and cemented carbide inserts. Maximum cutting parameters and long-term reliability of the blade are achieved due to a cooling system and a cleaning brush.

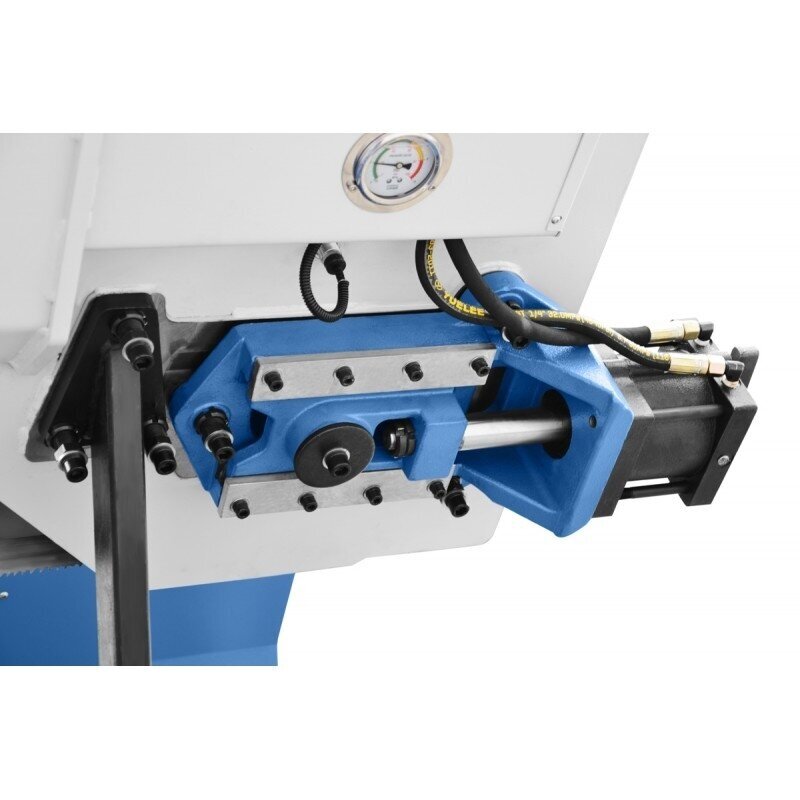

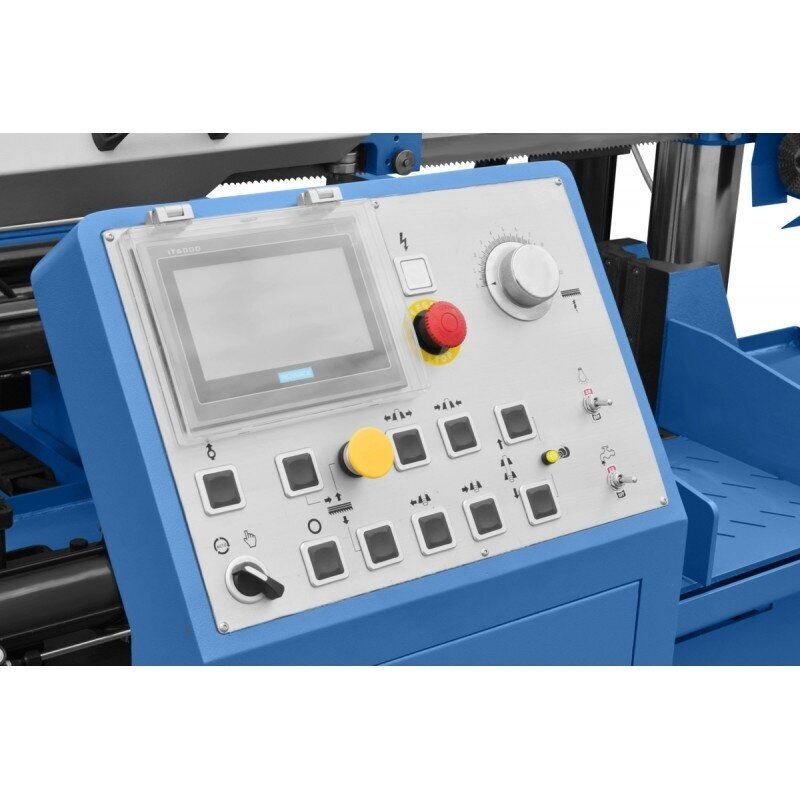

    Forced hydraulic arm lowering is adjustable by an accurate throttle valve. Quick feed system makes it possible to shorten the cutting time of some elements. Hydraulic material feeding system enables fully automatic working cycle of the machine. Controller, equipped with an LCD screen, is capable of programming the operation of the blade, indicates absence of material, provides errors and informs about the number of cut sections according to the time set. Maximum material feeding length in one stroke measures 500 mm, with +/- 0.2 mm margin for each stroke.
    The innovativeness and production of semiautomatic and automatic series "CORMAK-PREMIUM LINE" band saws, compliant with the norms and standards consistent with ISO:910001 and ISO:140001 certificates, warrant safety, quality and reliability of the product. M3V motors from ABB, a renowned worldwide manufacturer, warrant long-term reliability.

    Technical data

    Type
    automatic
    Cutting band size
    4115×34×1.1 mm
    Arm raising and lowering hydraulic, with smooth control
    Band speed 20-100 m/min

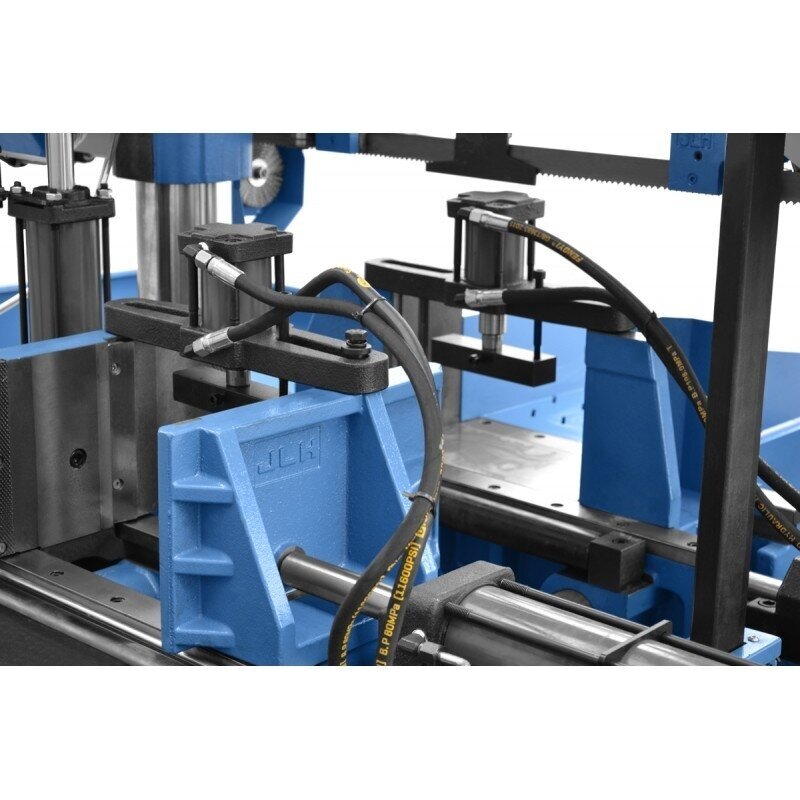

    Vice
    hydraulic
    Minimum cutting diameter
    Ø 5 mm
    Minimum material length in the vice
    30 mm
    Vice base height
    780 mm
    Power supply
    3-phase, 400 V
    Total power 4.4 kW
    Hydraulic unit power
    1.5 kW
    Coolant pump power
    0.75 kW
    Dimensions with base
    2300х1780х1650 mm
    Weight 1900 kg





















    Angle
    ø300 300x400
