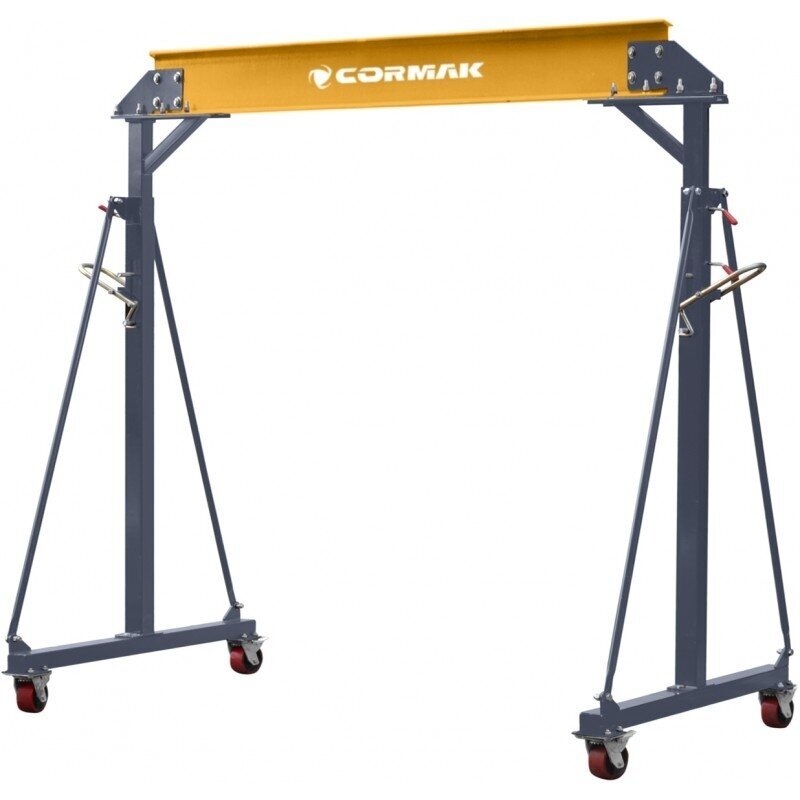

Cormak Mobile gantry crane 2 tons PK2
-
Cormak Mobile gantry crane 2 tons PK2
-
Description
Four deflection rollers ensure easy movement, and the installed parking brakes will be responsible for safe stopping.

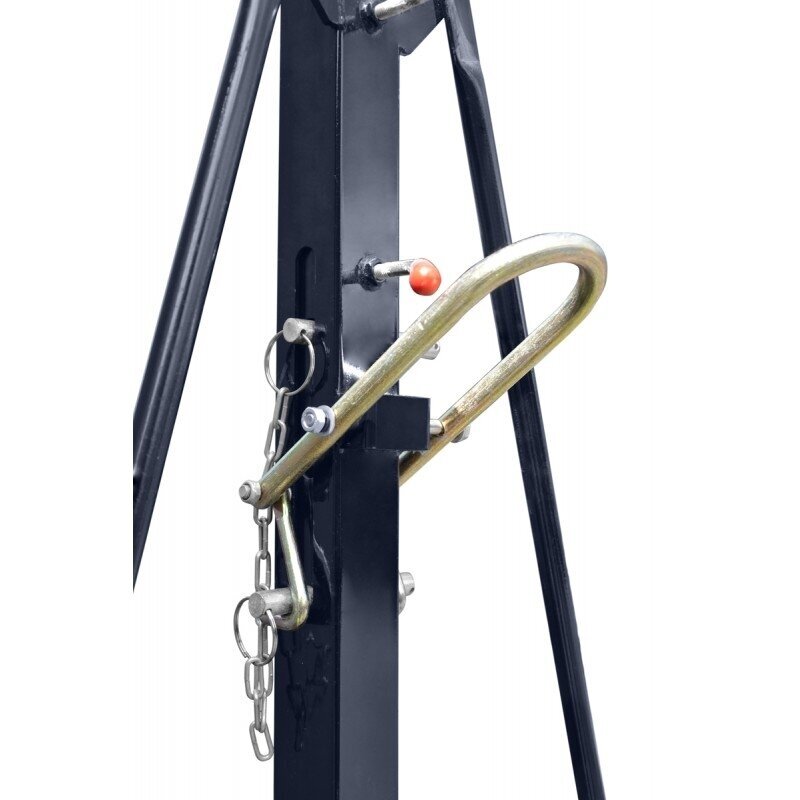

Height adjustment on the device is easy and safe while the lever is not loaded and with the help of two bolts securing each bracket.

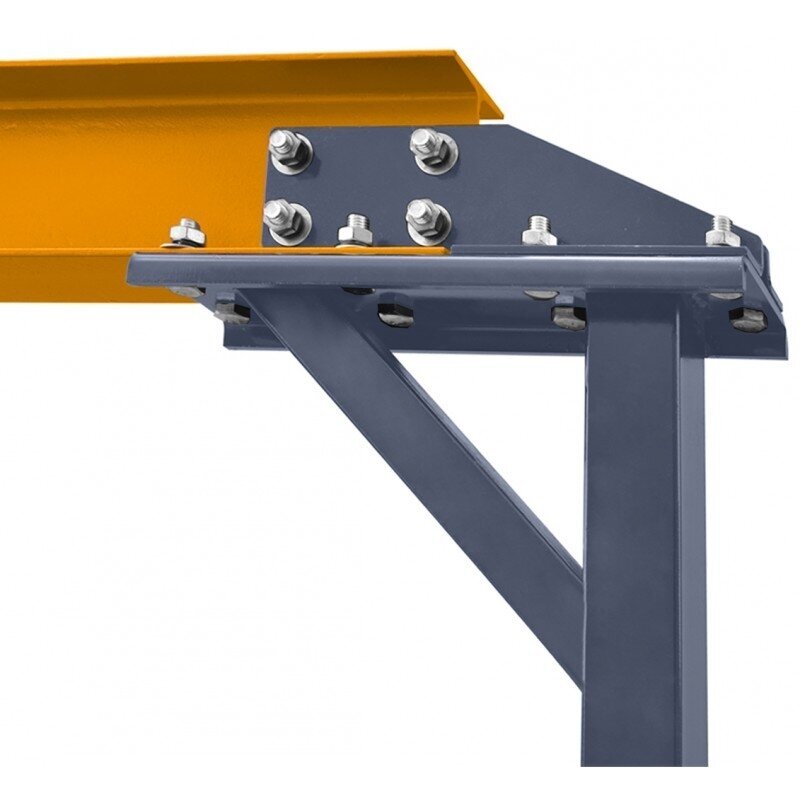

The model is durable and based on a stable structure; it is also resistant to twisting thanks to the use of additional cross struts.
Designed for loading and unloading, assembly, repair or warehouse work in workshops and halls on horizontal and smooth floors
Easy to move and install thanks to four deflection rollers with parking brakes
Easy and safe height adjustment in unloaded condition via a lever and two safety bolts per support leg
Stable and durable, torsion-resistant structure thanks to additional transverse struts
Possibility to install a trolley with a manual drive
The crane can be retrofitted with rope or chain winches after using a block or a trolley.
Crane without the winch shown in the photos
|
Capacity |
2000 kg |
|
Height |
2400 mm – 3600 mm |
|
Width |
2360 mm |
|
Double T carrier |
76 x 140 mm |
|
Overall width(base) |
2400 mm |
|
Top beam width |
2550 mm |
|
Total height |
2520 mm / 3720 mm |
|
Working width for the winch |
1750 mm |
|
Support frame tensioners |
4 units |
|
Transverse reinforcements on the bearing beam |
2 units |
|
Weight |
168 kg |
