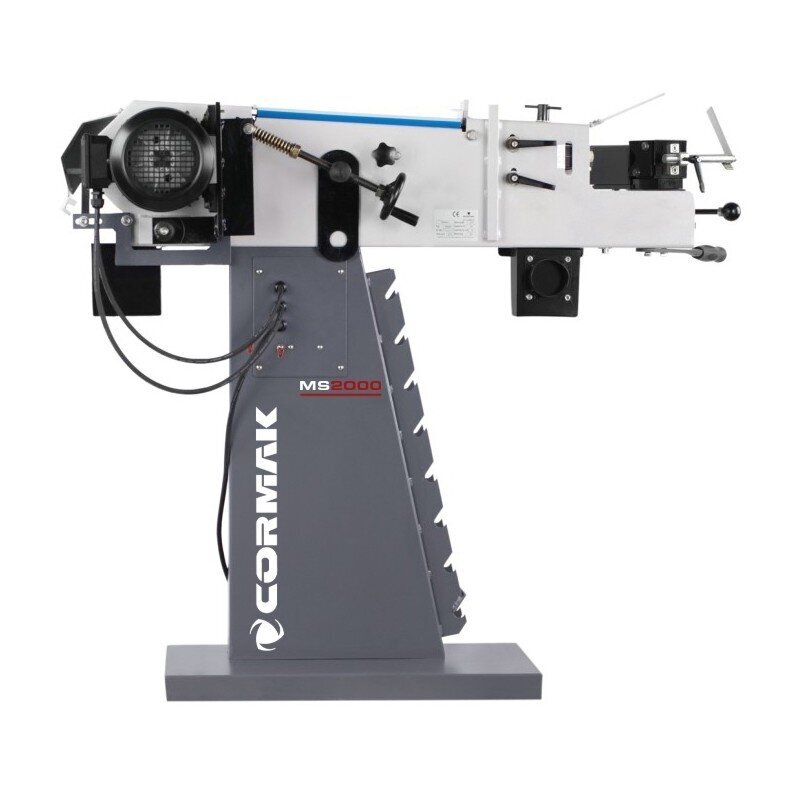

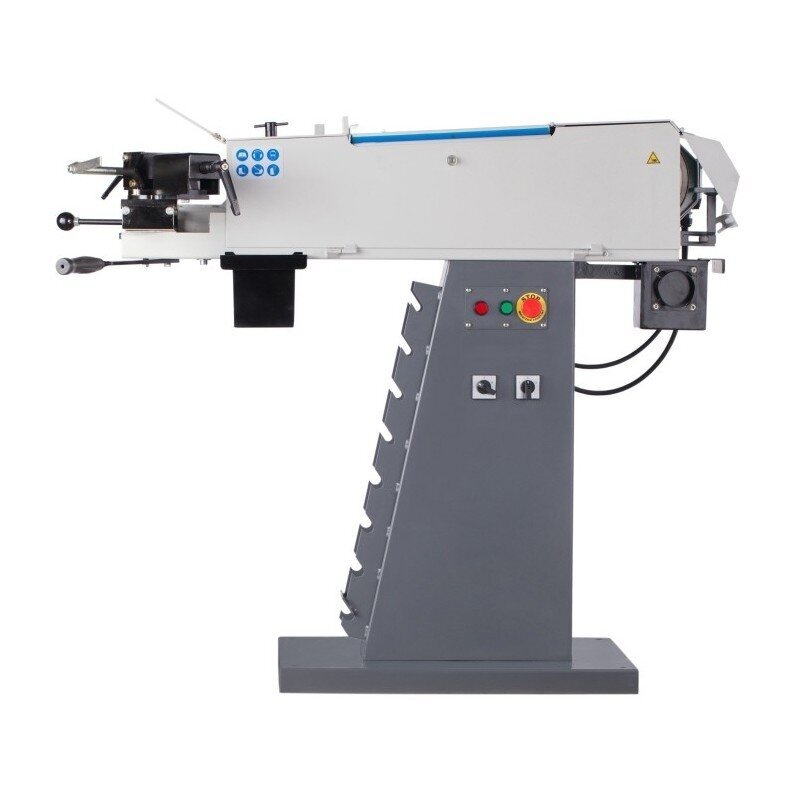

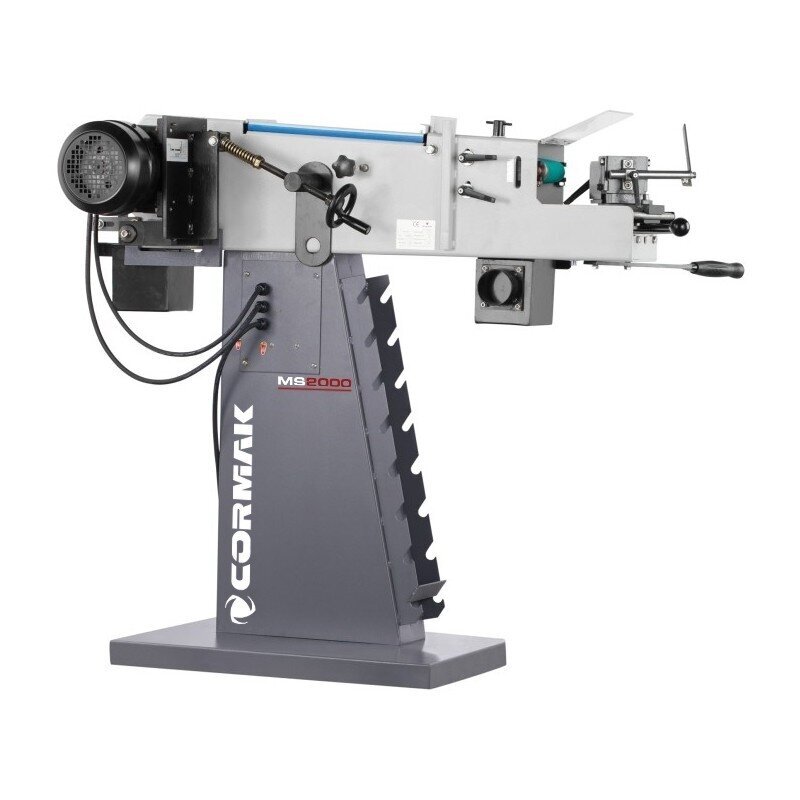

Cormak MS 2000 Belt Grinding Machine
-
Cormak MS 2000 Belt Grinding Machine
-
Most important advantages:
Belt metal grinding machine SM2000 is intended for rough grinding, forming, machining of metal edges, corners, inner semicircle in the pipe, grinding of welding seams, etc.

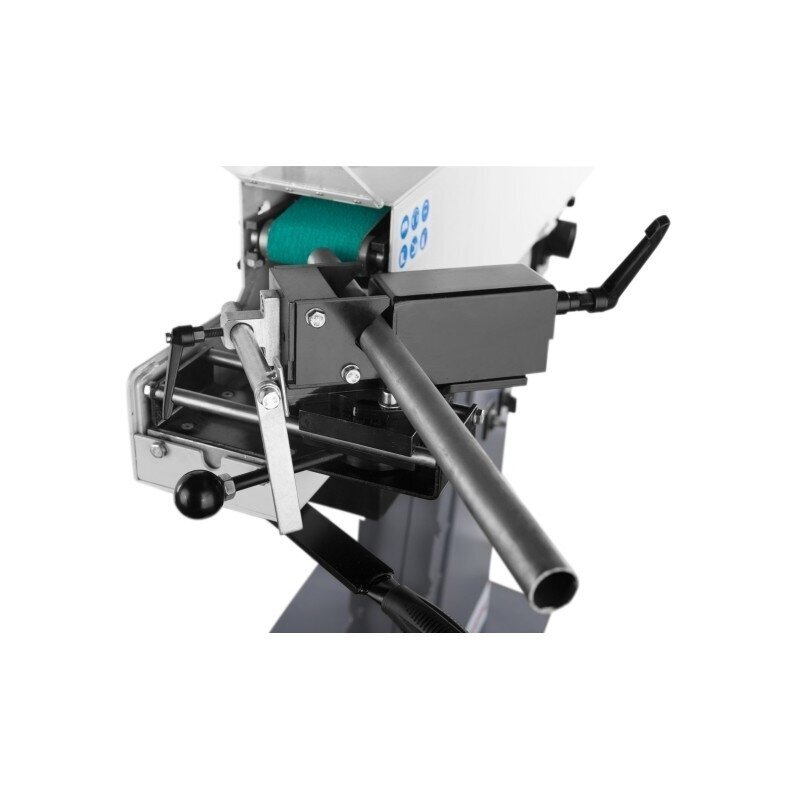

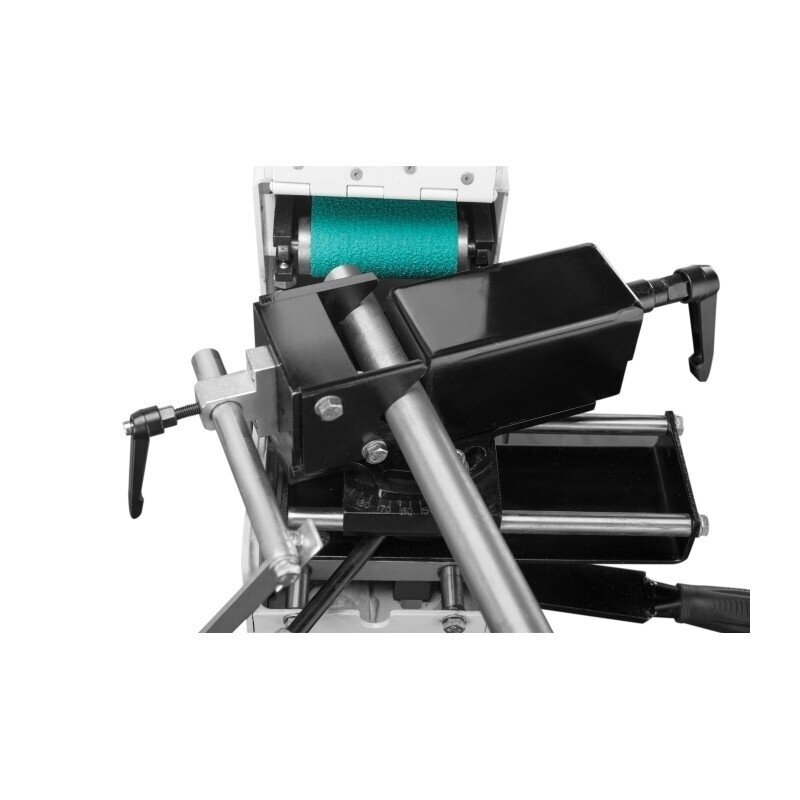

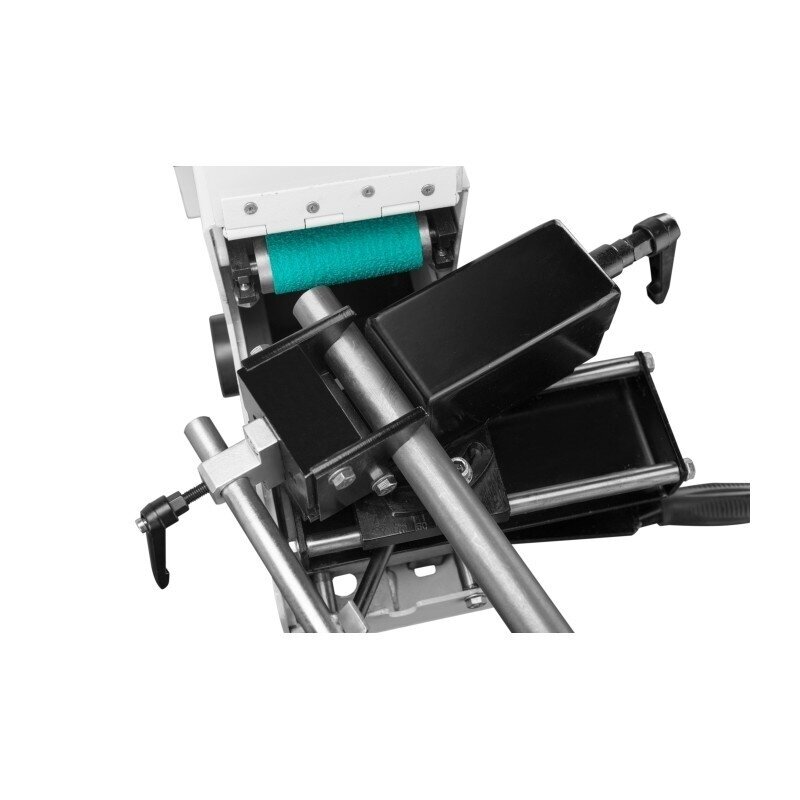

The machine can be used to grind various materials, and it is especially suitable for semi-circular grinding of the ends of a round pipe, when it is necessary to join two pipes at different angles. This belt sander is equipped with rollers of various diameters, with the help of which the operator carries out grinding of the ends of pipes of various diameters. The resulting sparks and smoke can be easily removed by additionally connecting the extractor of the MDC750 series to the grinding machine. Simple and convenient operation, at the same time quiet and robust during operation.
Well-balanced rollers ensure vibration-free operation.
Significantly saves time when grinding.
Enclosed on/off switch conforming to IP54 standard with low voltage cut-out switch
The machine must be operated in indoor conditions.

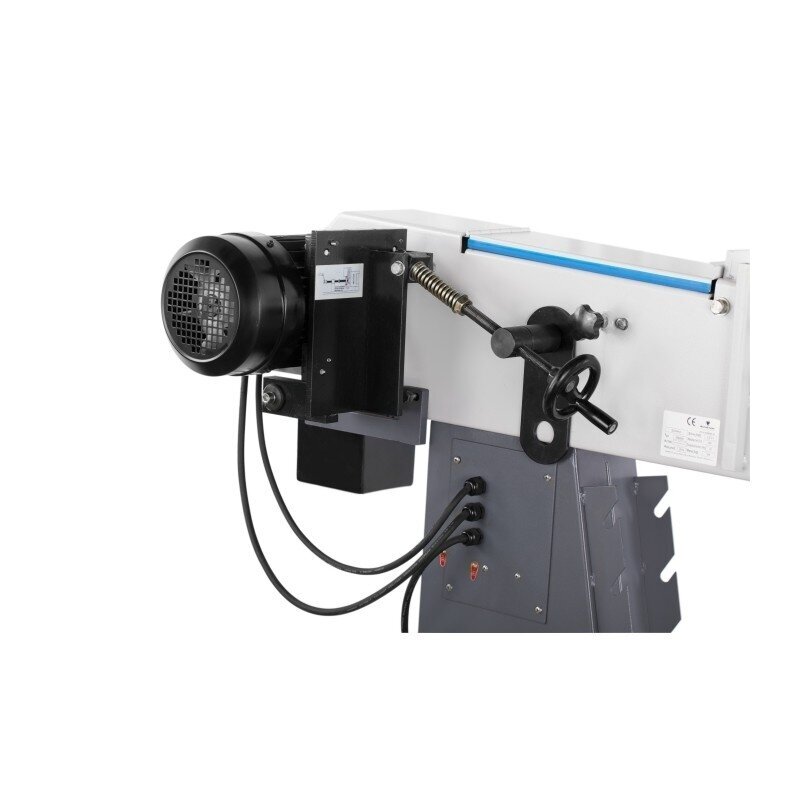

Powerful 3-phase voltage electric motor.
Quick and easy sanding belt change.

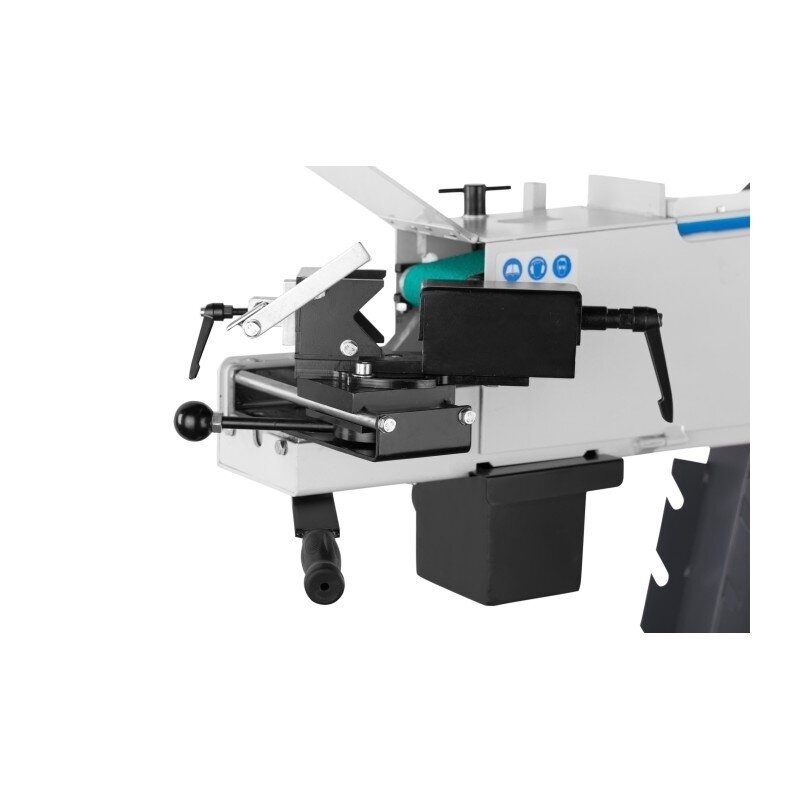

Large grinding surface, adjustable limiters - universal purpose.
Technical data
Diameter of grinding
|
20 - 76,1 mm
|
Adjust the angle
|
30 - 90 ° |
|
Belt speed |
860 / 1720 m/s |
|
Grinding belt dimensions (L×W) |
2000×100 mm |
Power supply
|
3-phase, 400 V
|
|
Total power |
2,5 kW |
Dimensions
|
1340x700x1210 mm |
|
Weight |
159 kg
|
-
-
