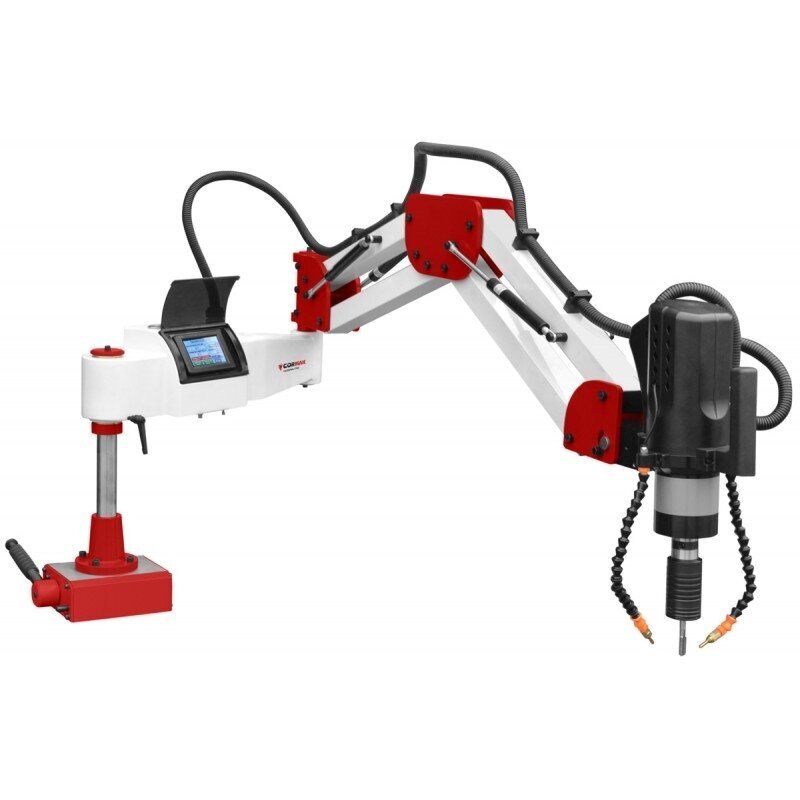

Most important advantages:

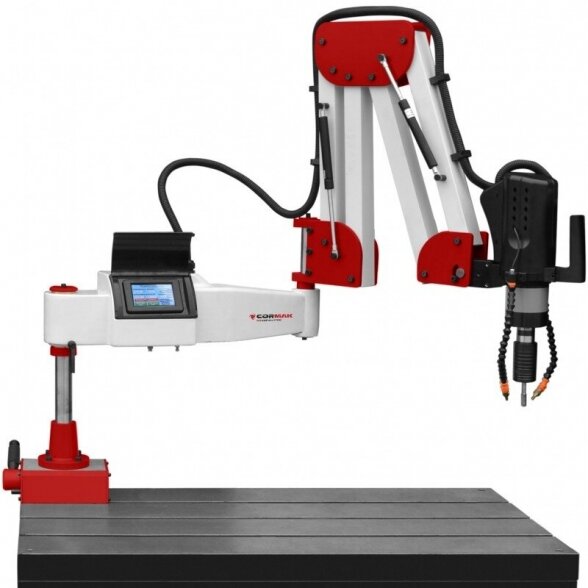

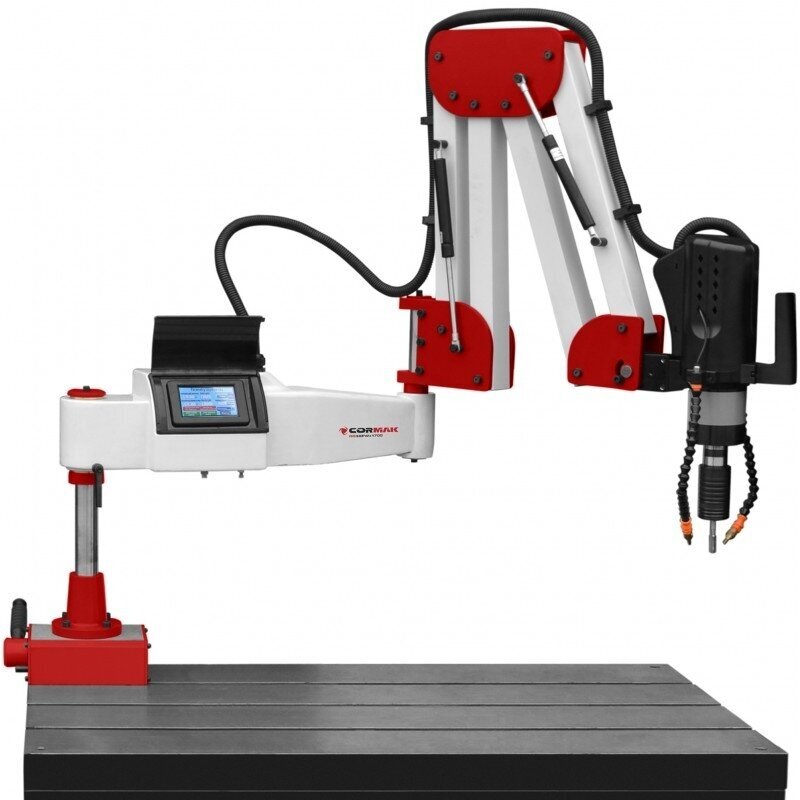

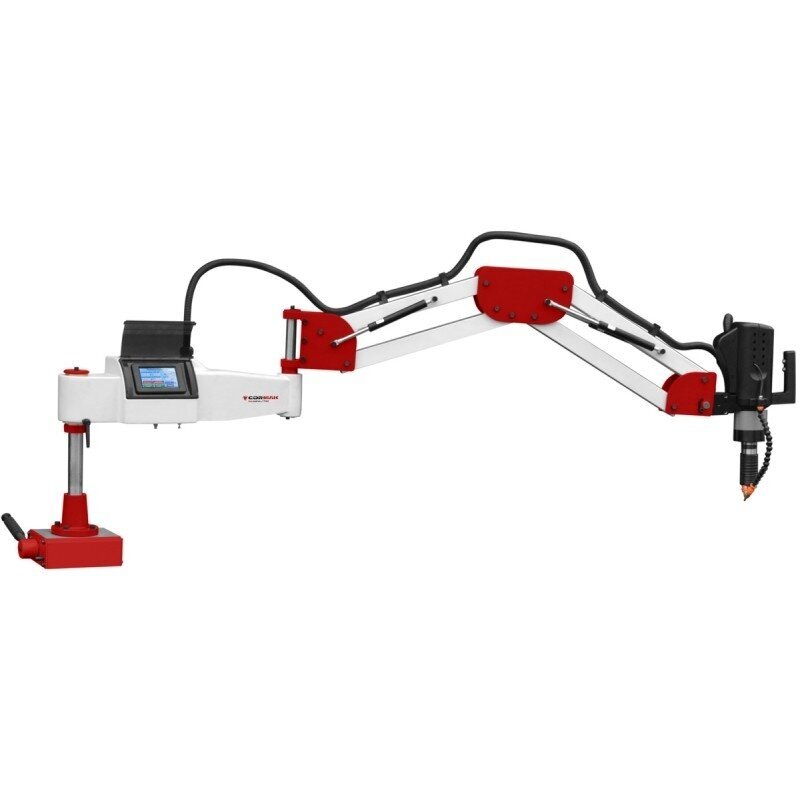

Arm reach of 1700 mm
It has an oil dispenser and a blower for blowing away chips

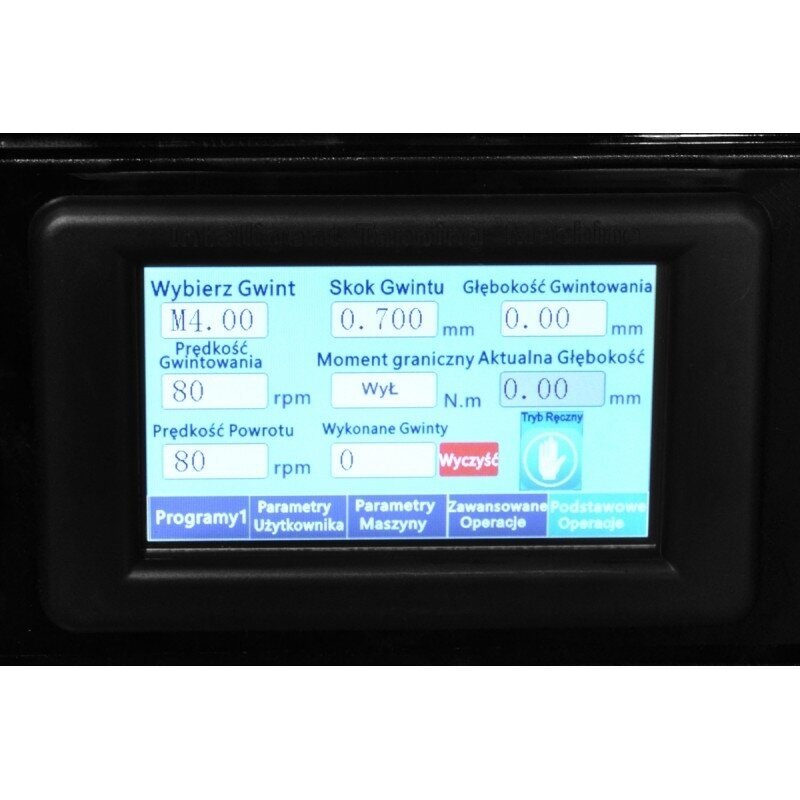

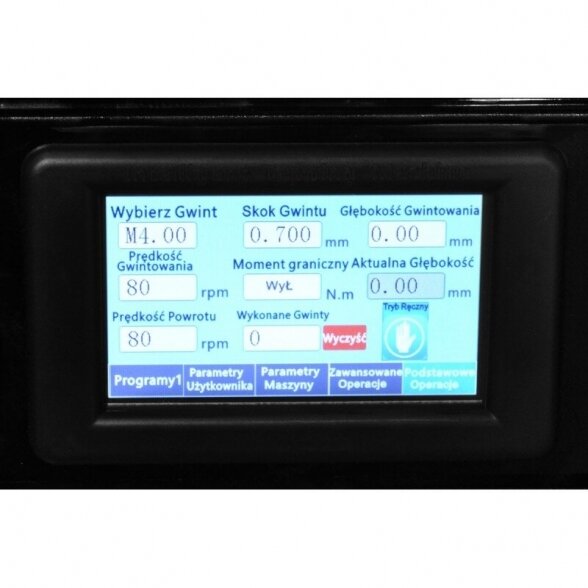

Touch control panel with menu in English and other languages
Two operating modes: automatic and manual

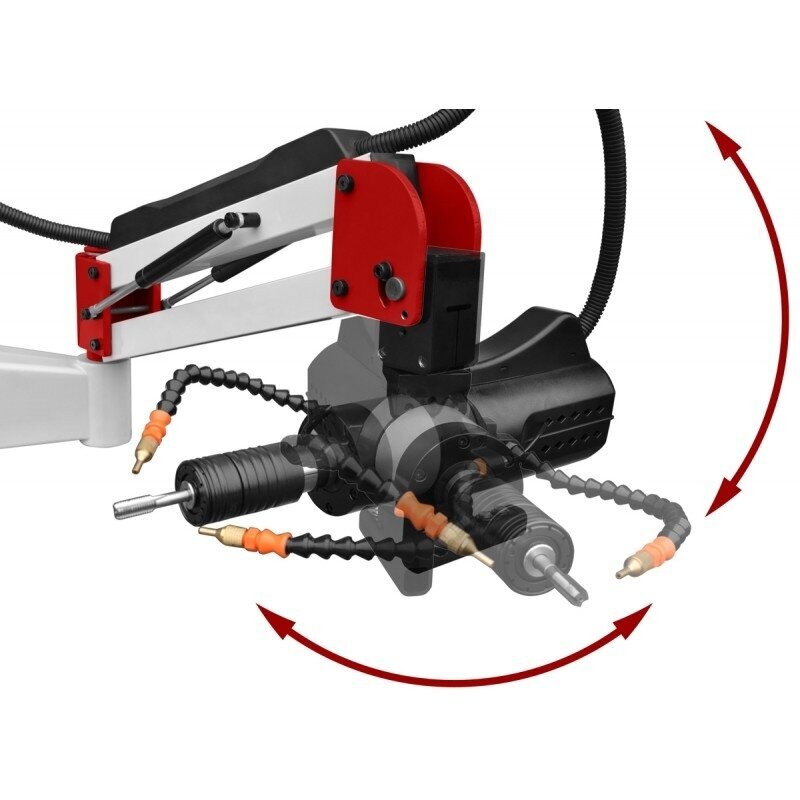

The threading machine head can be positioned: vertically or horizontally in the range of 90 °; right or left 180 °

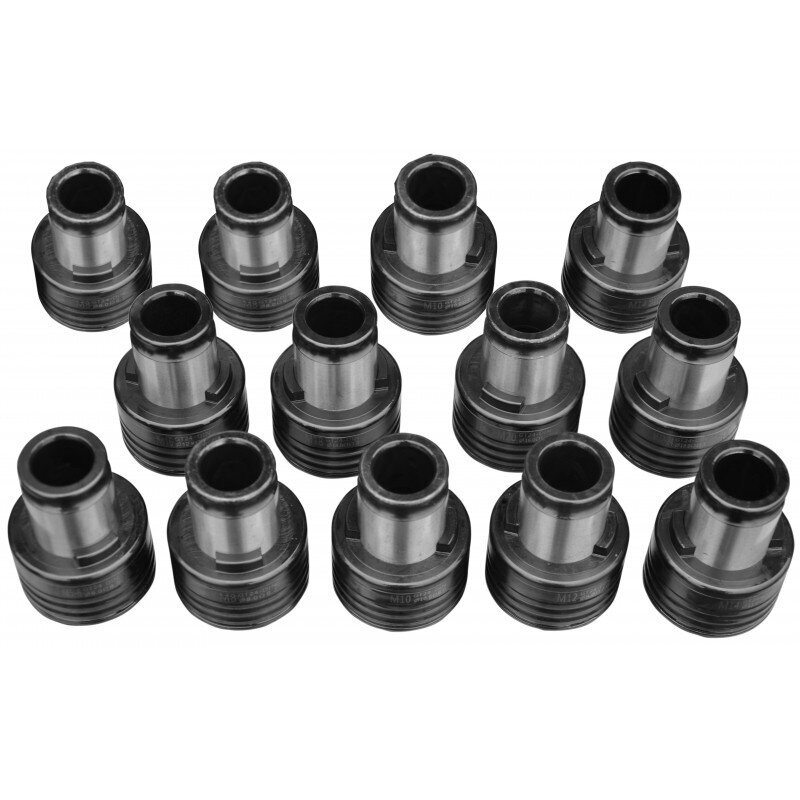

Holders for DIN taps included:
M5-6, M8, M10, M12, M14, M16, M18, M20, M22-24, M27, M30, M33, M36
The machine is equipped with a manual mode with the possibility of programming a cyclic change of direction in order to break the chip

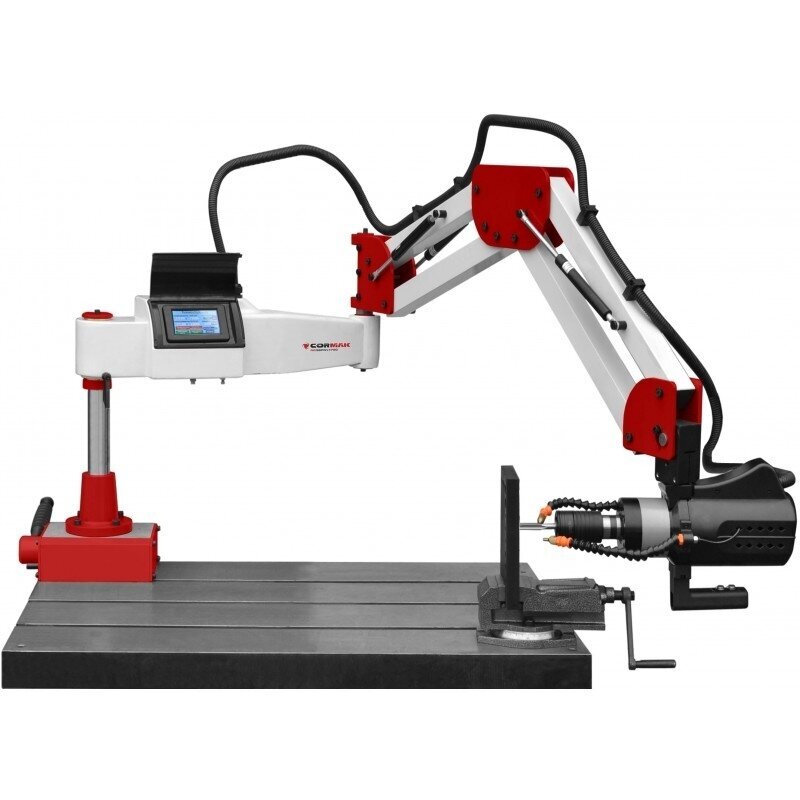

The machine is sold without a worktable, vice, taps and magnetic chuck
Technical data
|
Power |
1.2 kW |
|
Voltage |
230V |
|
Maximum arm range |
1700 mm |
|
Maximum speed |
156 rpm |
|
Weight |
60 kg |
