Most important advantages:

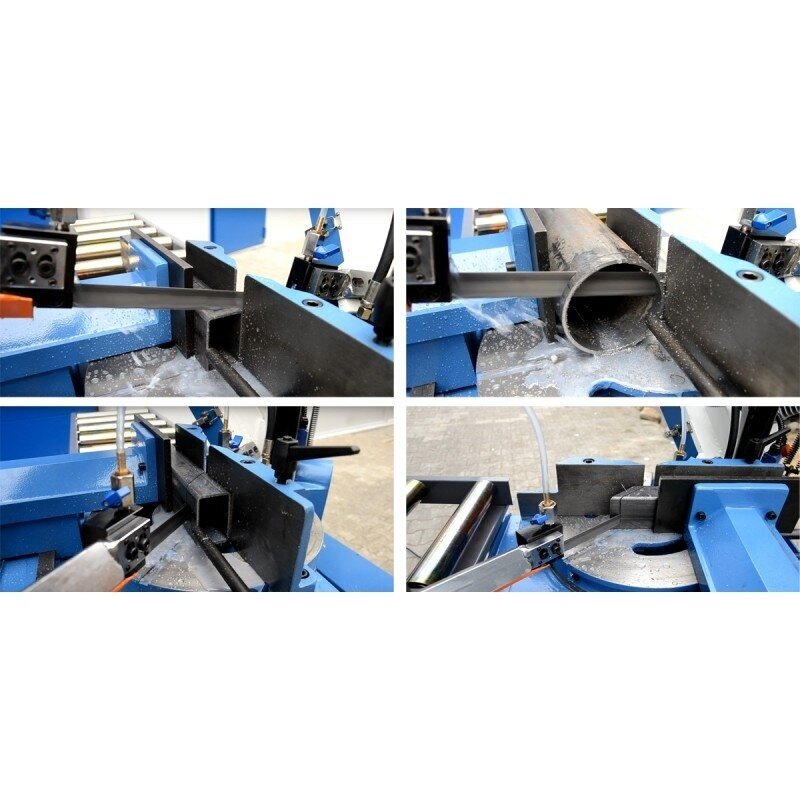

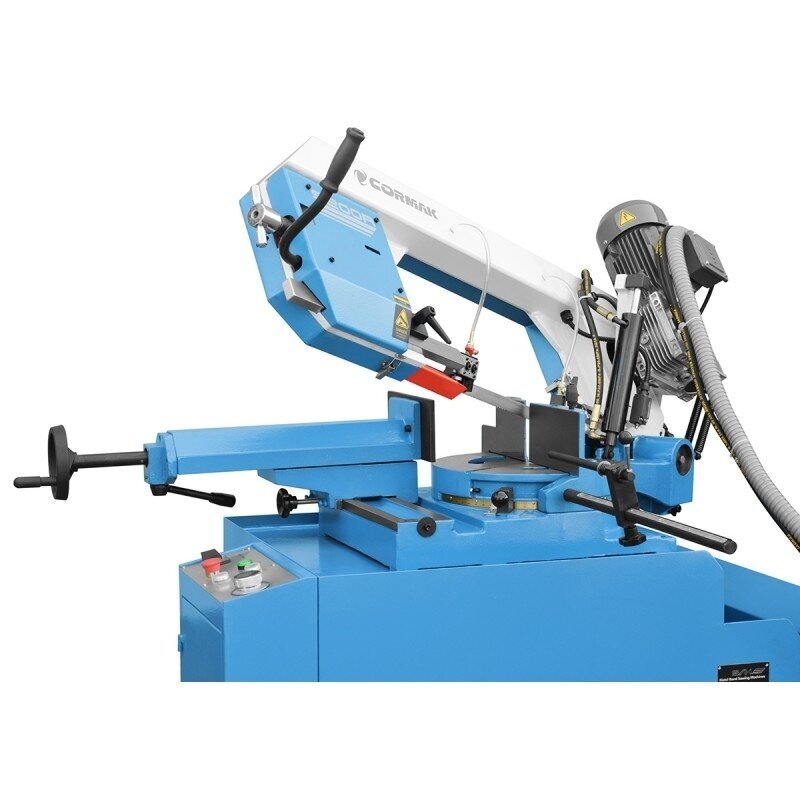

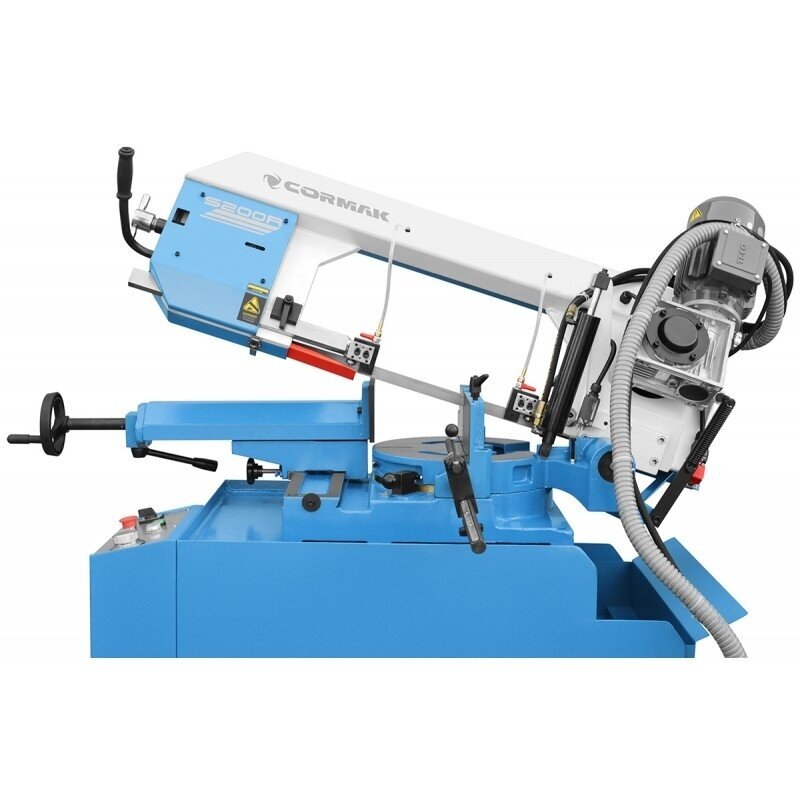

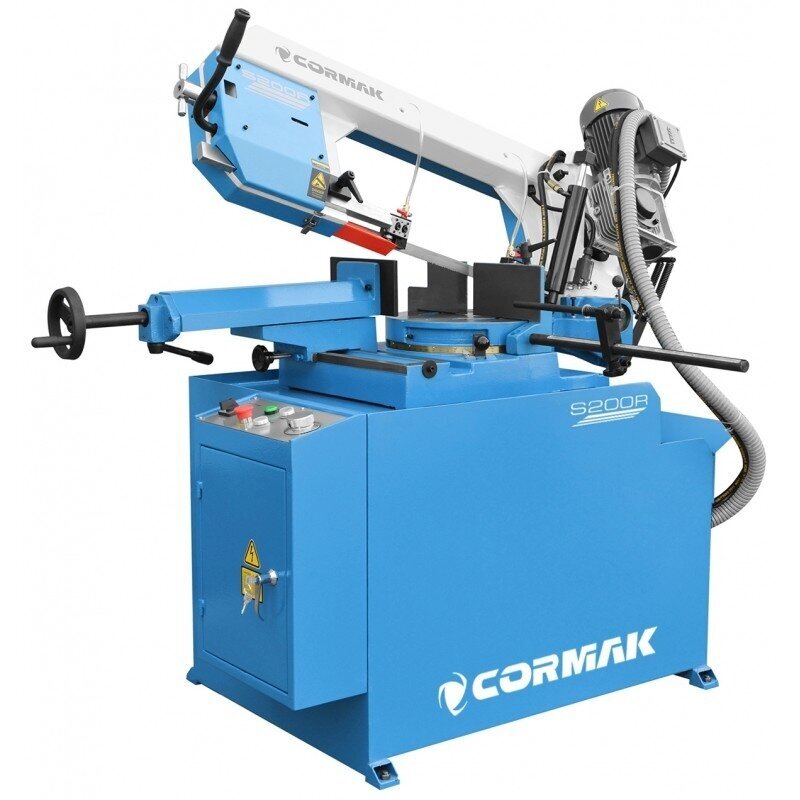

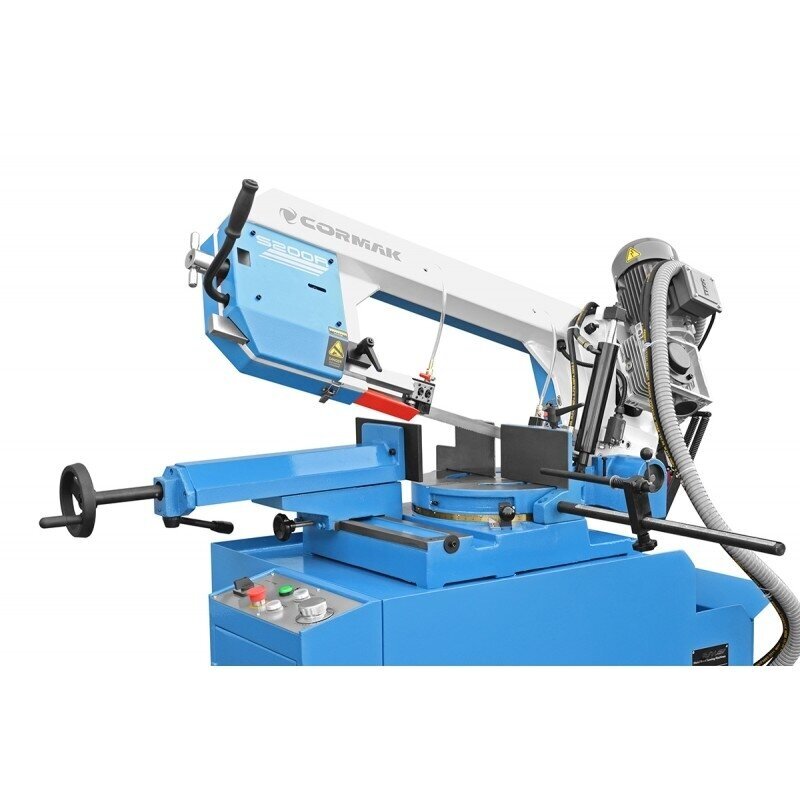

CORMAK S-200R MANUAL band saw with EC declaration, provides cutting metal at any angle from -45° to + 60°. The element cut can be fed manually or by any feeding device. The feed during cutting is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Appropriate arm lowering speed is ensured by a valve controlling oil flow between the chambers.

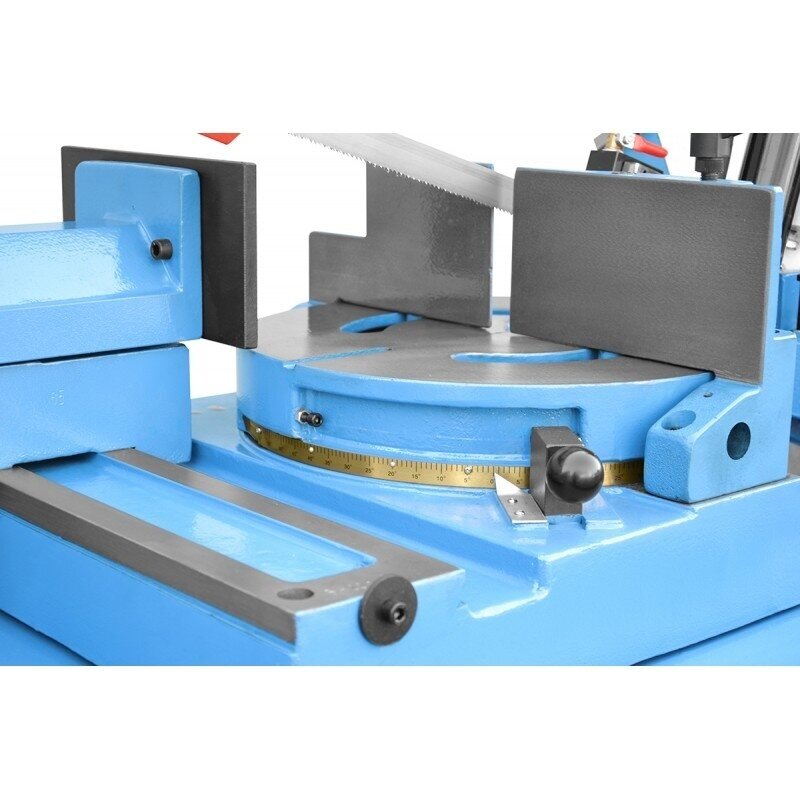

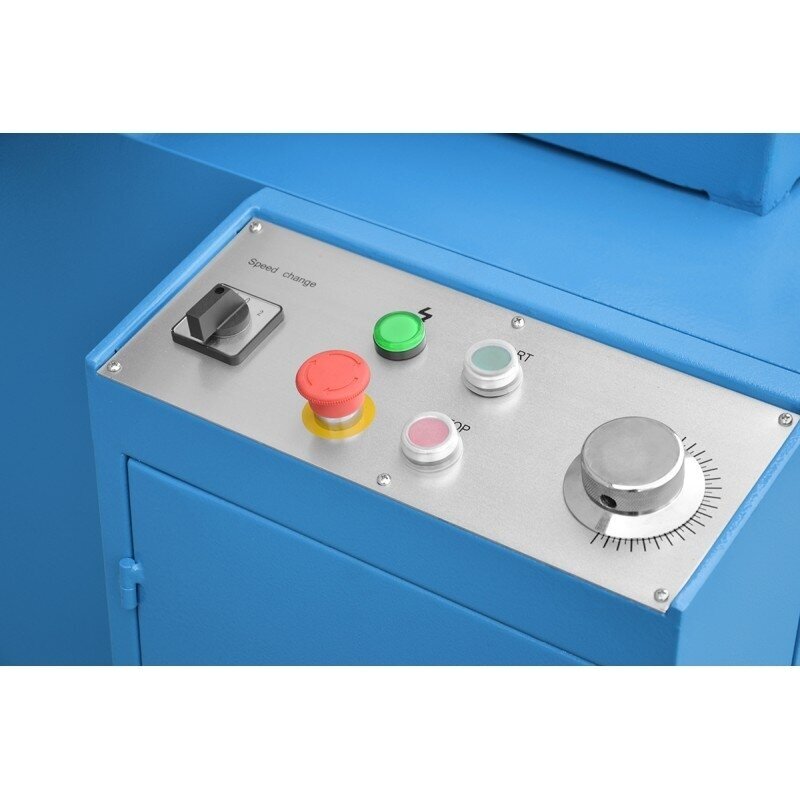

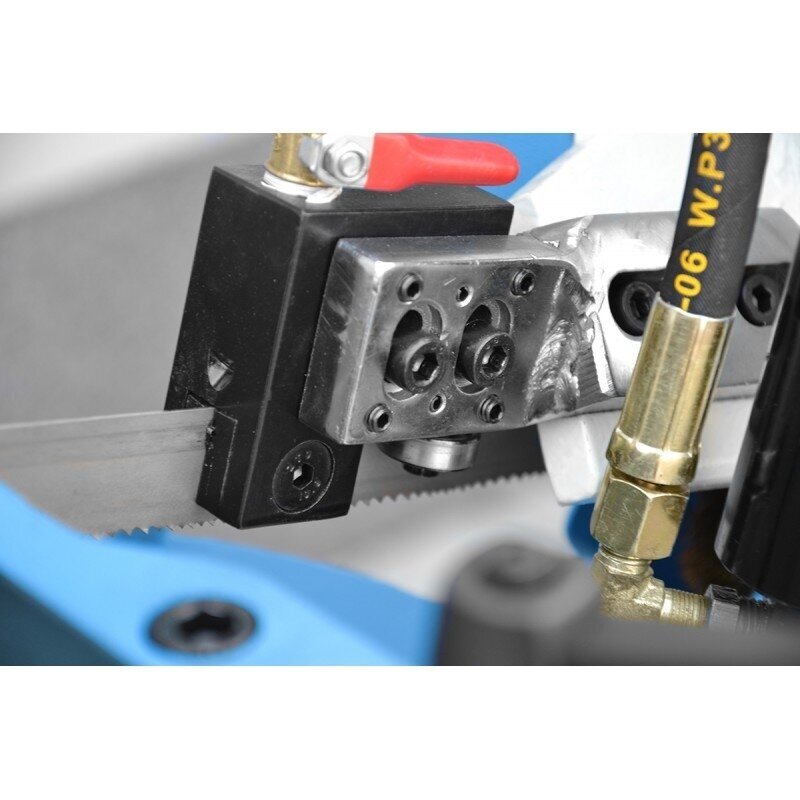

Operator starts the machine by pressing the START button and sets cutting speed. After the cycle is finished the machine automatically stops and the operator lifts the arm to the starting position. Material is fed manually. This model is used in both low and high quantity production, and due to its solid construction allows for cutting various materials, including stainless steel, tool steel and profiles. The machine provides cutting at an angle due to rotary arm. The band saw arm is made of uniform cast iron, and together with 27 mm wide cutting band enables high quantity cutting of various materials. The vice is located in an adjustable bed and equipped with a quick clamp. Blade guides are equipped with a ball bearings system and cemented carbides, ensuring excellent cutting precision and straight cut. The arm is equipped with an automatic blade tension sensor, at a 25° angle, thus increasing blade's durability.

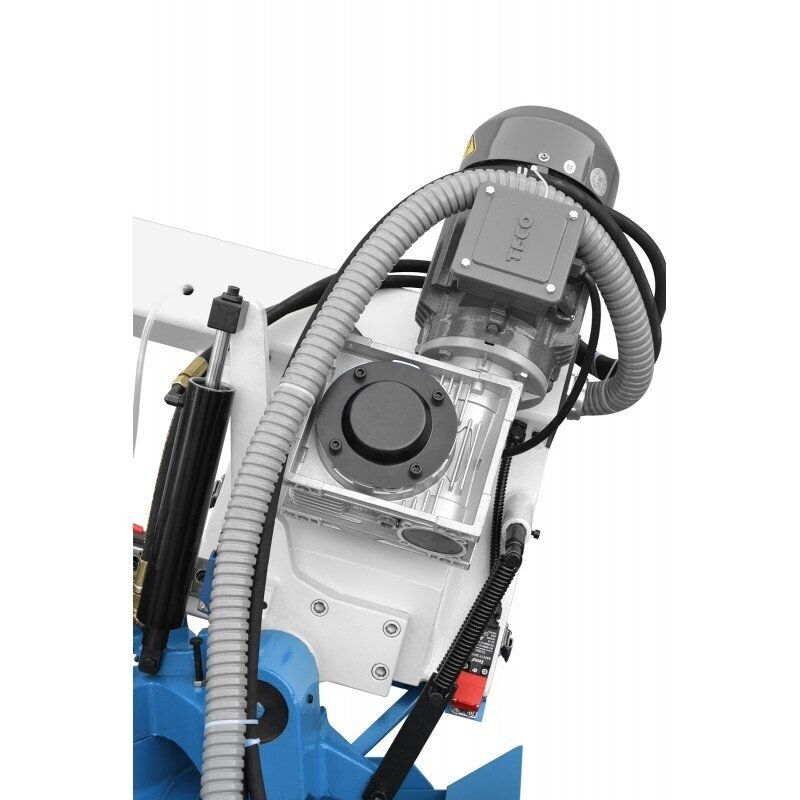

There is a blade cleaning brush attached to the bottom of the arm. Machine drive is transmitted through a worm drive filled with gear oil. The machine is equipped with a three-phase motor with double winding and two cutting speeds. The motor is thermally protected.
Two cutting band speeds: 35 and 70 m/min. The construction: the arm, the vice and the rotating table are iron castings. Closed cooling system. The machine is equipped with a bumper with a ruler for setting the length of material cut. The base of the machine is a rigid cuboid made of steel sheets in which a fluid container with a flood coolant pump is located. Safety during cutting ensures an electrical system that meets all EC requirements. The machine is equipped with a limit switch which stops the machine after a cutting process is finished, an emergency button, and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened
Technical data
Cutting band size
|
2910×27×0,9 mm |
Band tension
|
mechanical (manual)
|
|
Band speed |
36 / 70 m/min |
Arm lowering control
|
stepless – hydraulic cylinder |
Power supply
|
3-phase, 400 V
|
|
Total power |
2,1 kW |
Dimensions with base
|
1600x800x1400 mm
|
|
Weight |
500 kg
|
|
Angle |
 |
 |
 |
|
0º |
ø250 |
320x240 |
240x240 |
|
45º L |
ø200 |
220x120 |
190x190 |
|
45º R |
ø220 |
235x120 |
210x210 |
|
60º R |
ø110 |
155x110 |
100x100 |
