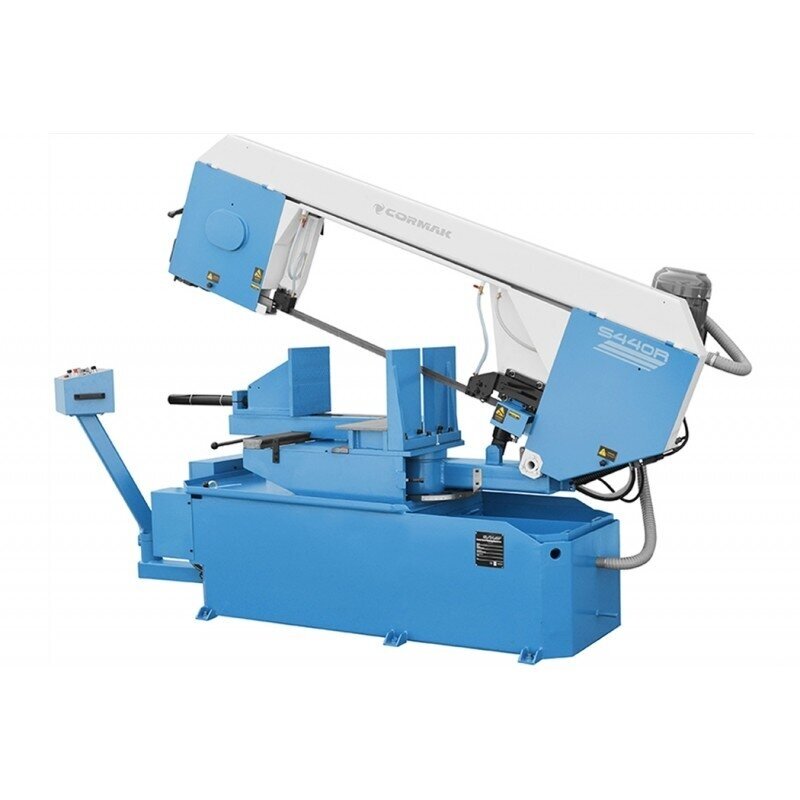

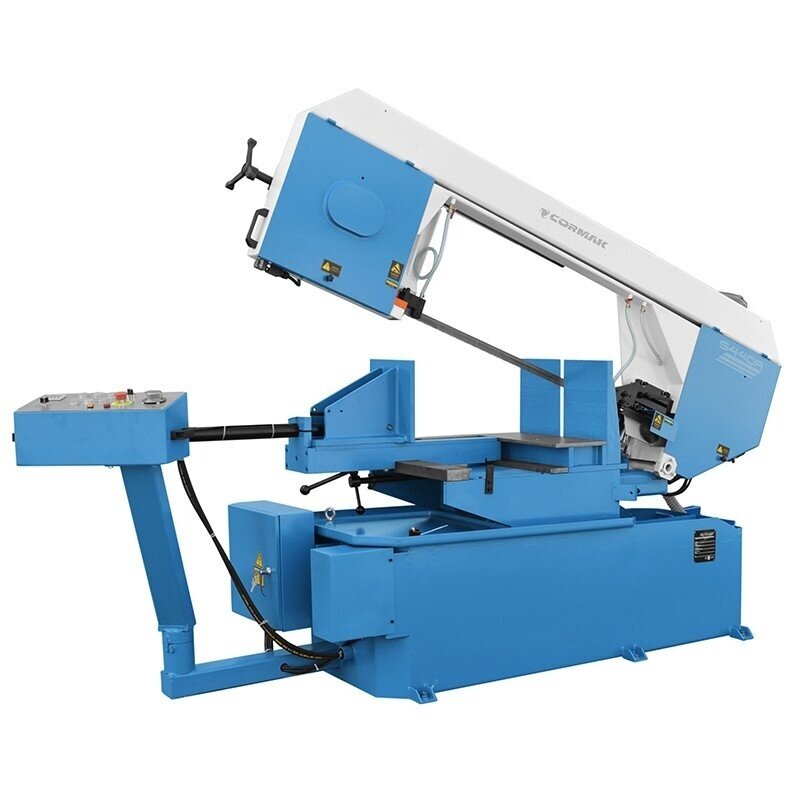

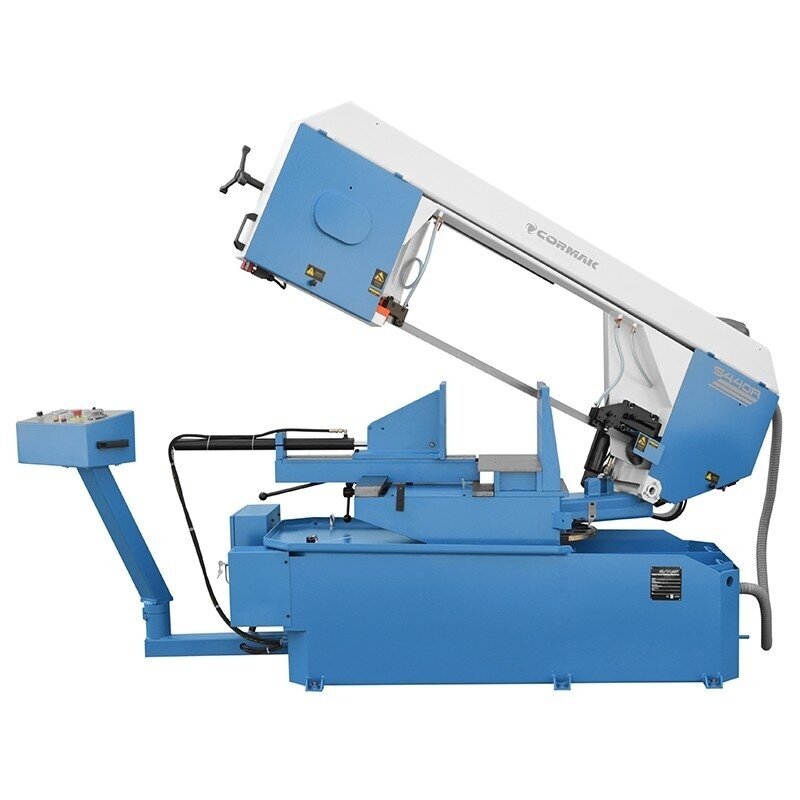

Cormak S 440 R Semi-Automatic Band Saw
-
Cormak S 440 R Semi-Automatic Band Saw
-
Most important advantages:

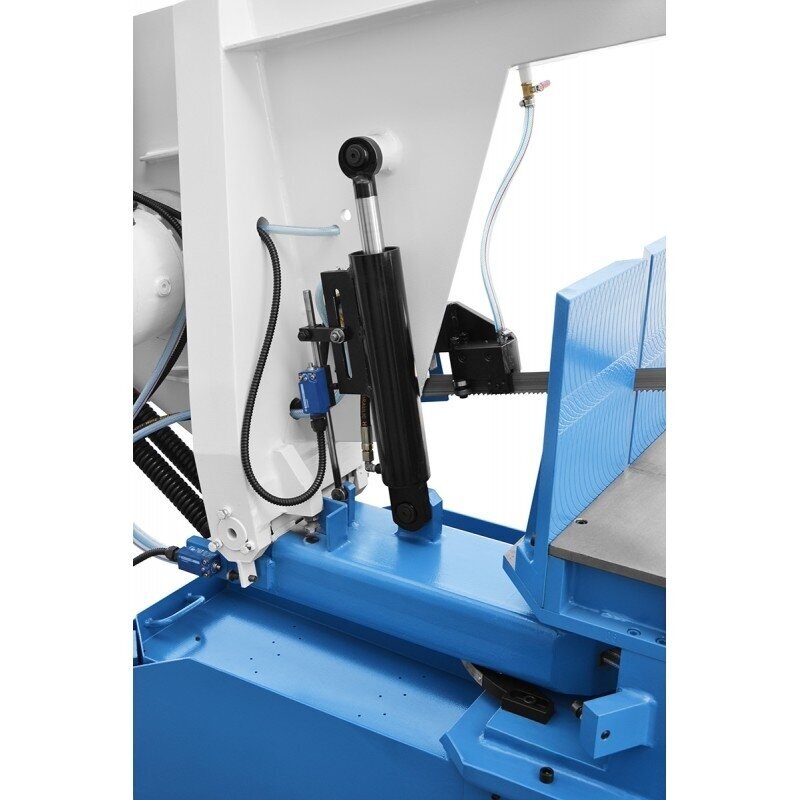

Semi-automatic band saws, after being switched, do the whole cutting cycle automatically, i.e. clamp the cut material in the hydraulic vice, switch on the cutting band, lower the cutting arm (adjustable speed), stop the machine after cutting, raise the arm up (adjustable arm height) and switch the hydraulic vice off. Machine's arm is made of uniform cast iron and, together with a 34 mm wide cutting band, it enables cutting various profiles and shapes. The band saw uses a vice and a hydraulically raised and lowered arm.
Technical data
Type
|
semi-automatic
|
Cutting band size
|
5200×34×11 mm |
|
Minimum material length in vice |
30 mm
|
|
Band speed |
20 / 90 m/min |
Minimum cutting diameter
|
Ø 5 mm
|
|
Minimum material length in vice |
30 mm
|
|
Vice base height |
780 mm
|
Power supply
|
3-phase, 400 V
|
|
Total power |
4,4 kW |
Dimensions with base
|
2500x1900x1450 mm
|
|
Weight |
1100 kg
|
|

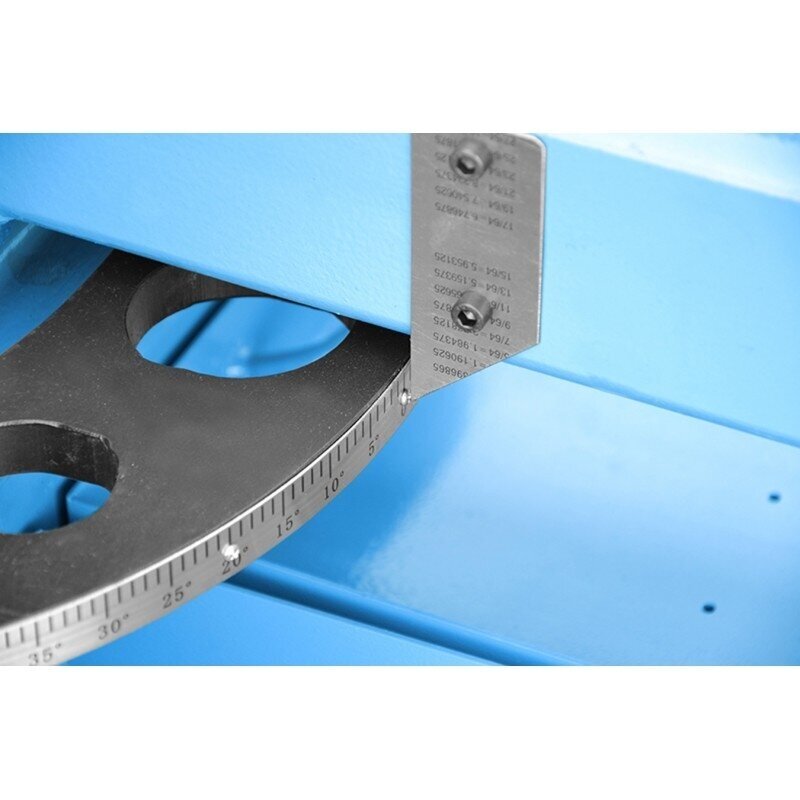

Angle |
 |
 |
 |
|
|
0º |
ø450 |
620x440 |
610x440 |
450x450 |
|
45º R |
ø440 |
500x190 |
360x440 |
420x420 |
|
45º L |
ø440 |
510x180 |
460x390 |
390x390 |
|
60º R |
ø330 |
330x170 |
170x440 |
300x300 |
|
60º L |
ø350 |
350x170 |
330x310 |
310x310 |
-
-
