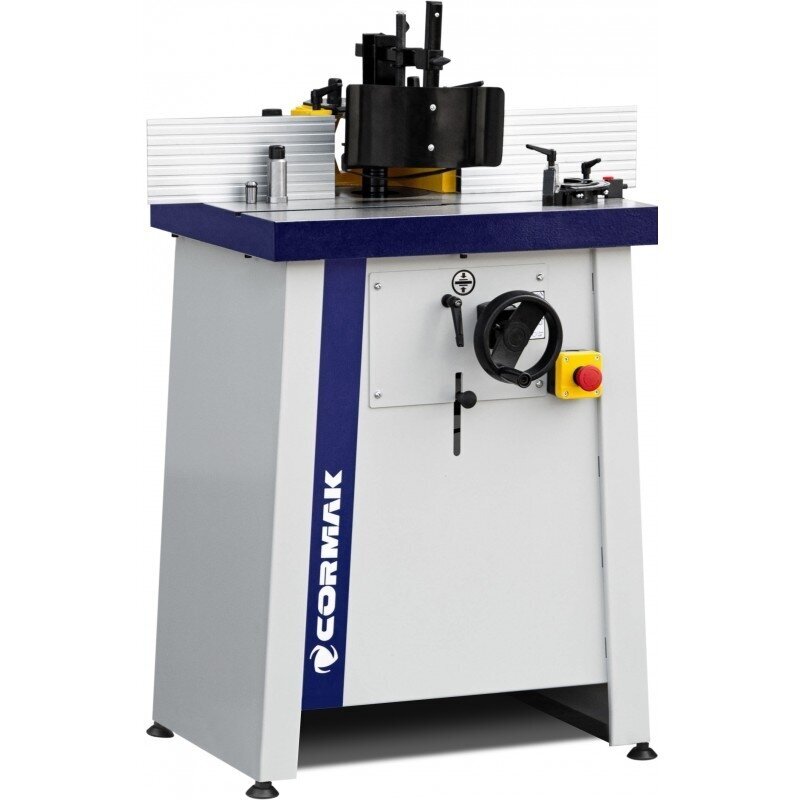

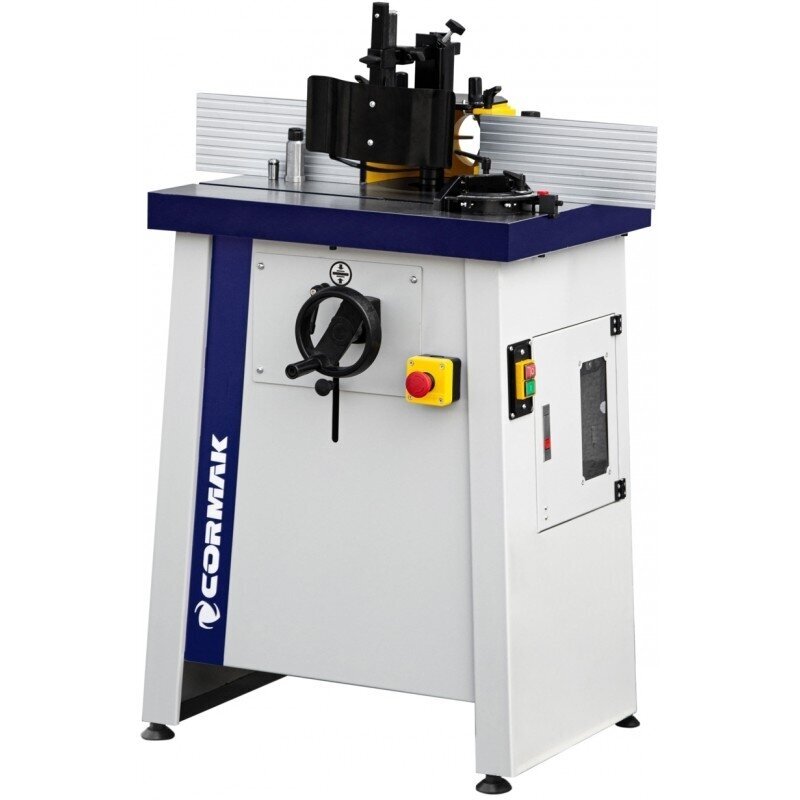

Cormak SH 30 S 400V Spindle Moulder
-
Cormak SH 30 S 400V Spindle Moulder
-
Most important advantages:
Heavy, stable spindle moulder with interchangeable spindle and collet!

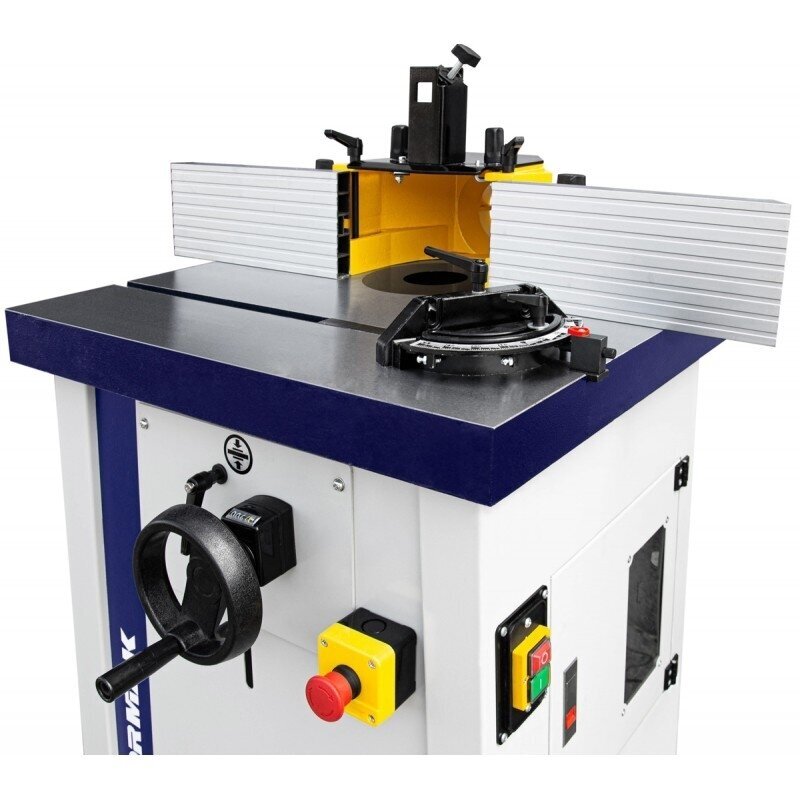

The milling table made of cast iron, ground guarantees optimal sliding of the workpiece
Included : workpiece holder, tilting stop 60 ° left / right, workpiece stop
REINFORCED balanced spindle for perfect milling during machining.
Standard height adjustment with scale!

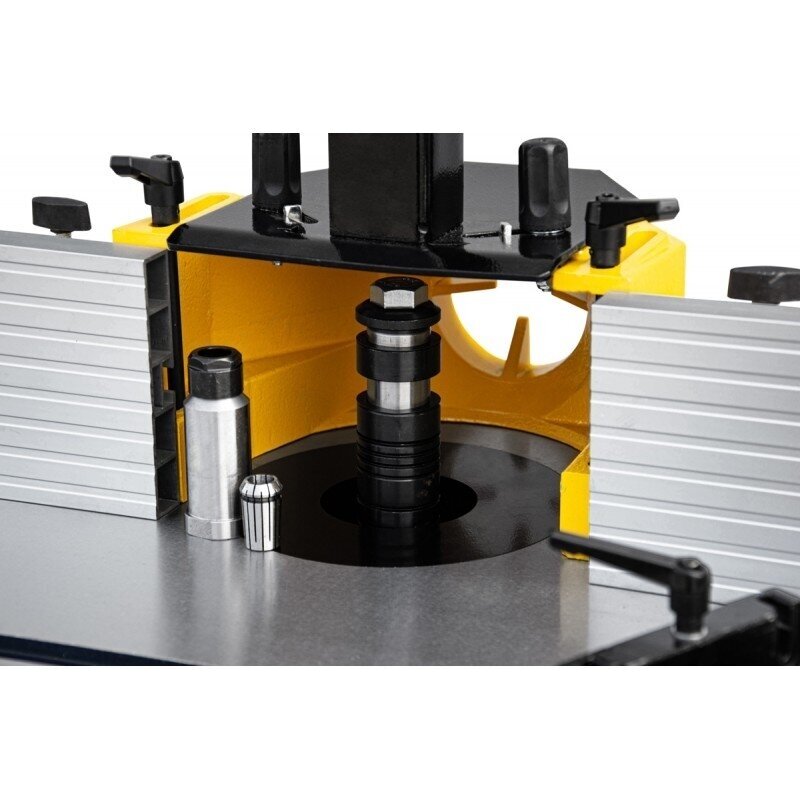

Interchangeable spindle with collet (1/2 "), angle stop, clamp, Clamping tool
Spindle speed 1400 / 4000 / 6000 / 9000 rpm /min.
The machine has non-slip feet (work without vibrations)
Intended for processing the edges of rectilinear elements
Technical data
|
Engine power |
2200 W |
|
Voltage |
400 V |
|
Table dimensions |
620 x 510 mm |
|
Table height |
860 mm |
|
Dust port |
100 mm |
|
Spindle pitch |
100 mm |
|
Max. mounting height |
105 mm |
|
Table hole |
160 mm |
|
Max. diameter of tools under the table |
150 mm |
|
Spindle speed |
1400 / 4000 / 6000 / 9000 rpm /min. |
|
Spindle diameter |
30 mm |
|
Gross weight |
126 kg |
|
Overall dimensions |
640 x 660 x 1250 mm |
-
-
