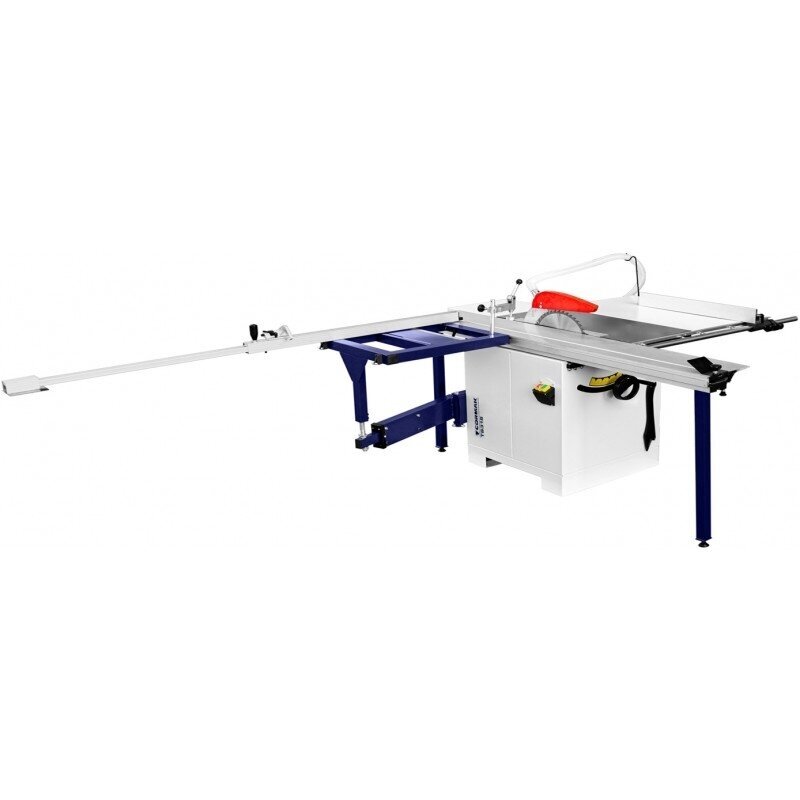

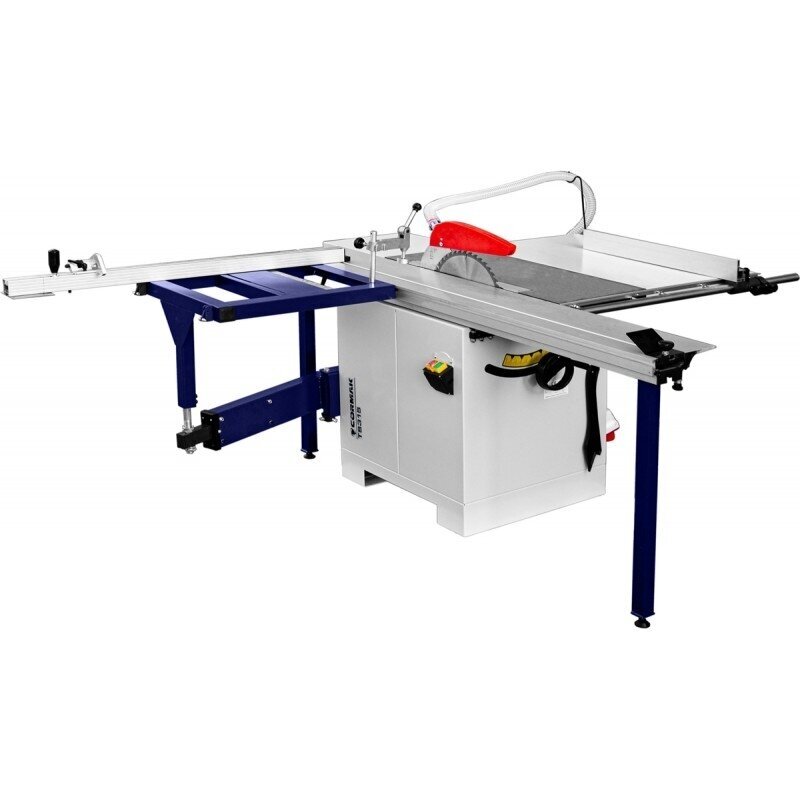

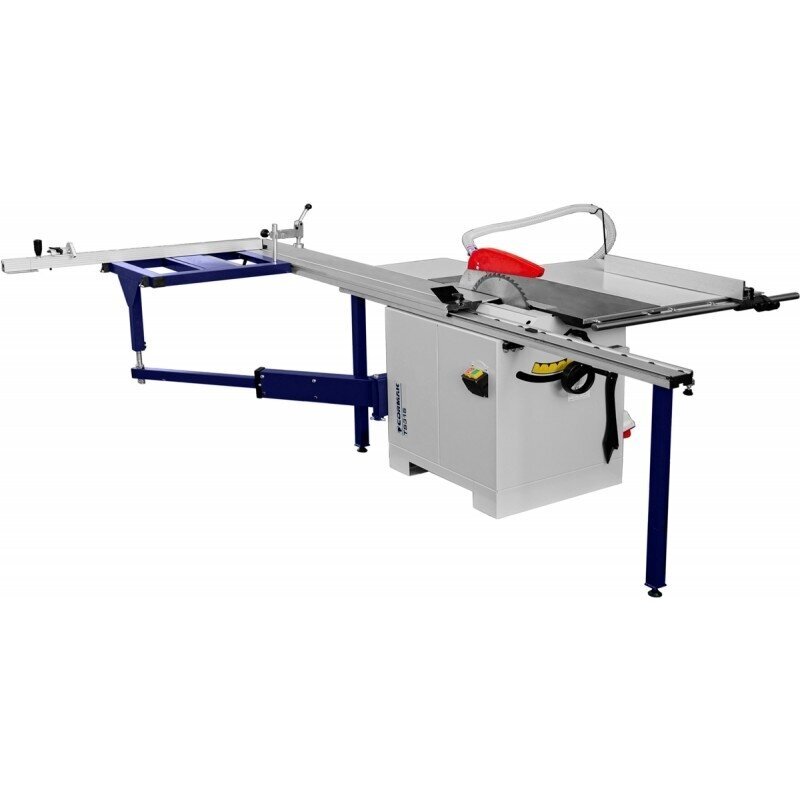

Cormak TS 315 400V table saw
-
Cormak TS 315 400V table saw
-
Most important advantages:
The TS 315 industrial circular saw for solid wood is an innovative combination of a powerful, precise, universal and compact machine!
It was created for carpentry workshops, hobbyists, furniture manufacturers and craftsmen
This machine uses many solutions used in much more expensive machines of this type!
Excellent price-performance ratio has been achieved without compromising on quality or versatility!
The machine is also used to process high-density boards, MDF boards, ABS panels, PVC, solid wood and other materials based on wood or with a similar structure and hardness.

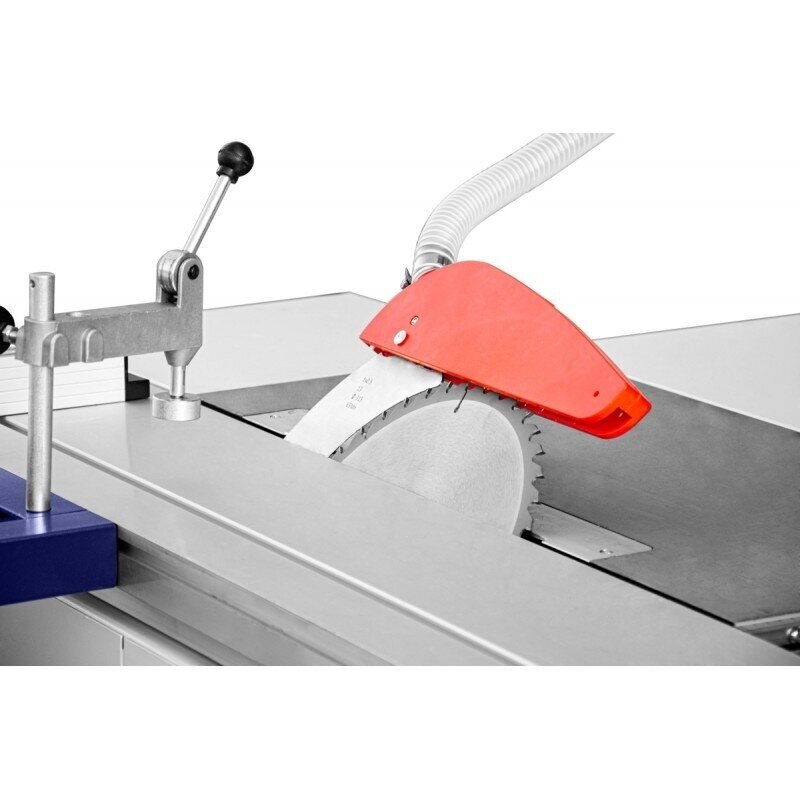

Smooth and precise adjustment of height and angle using a knob
Stable, heavy, high-quality machine body.
Broadening and extending the table allows for comfortable work.
Smooth aluminum reinforced sliding table.

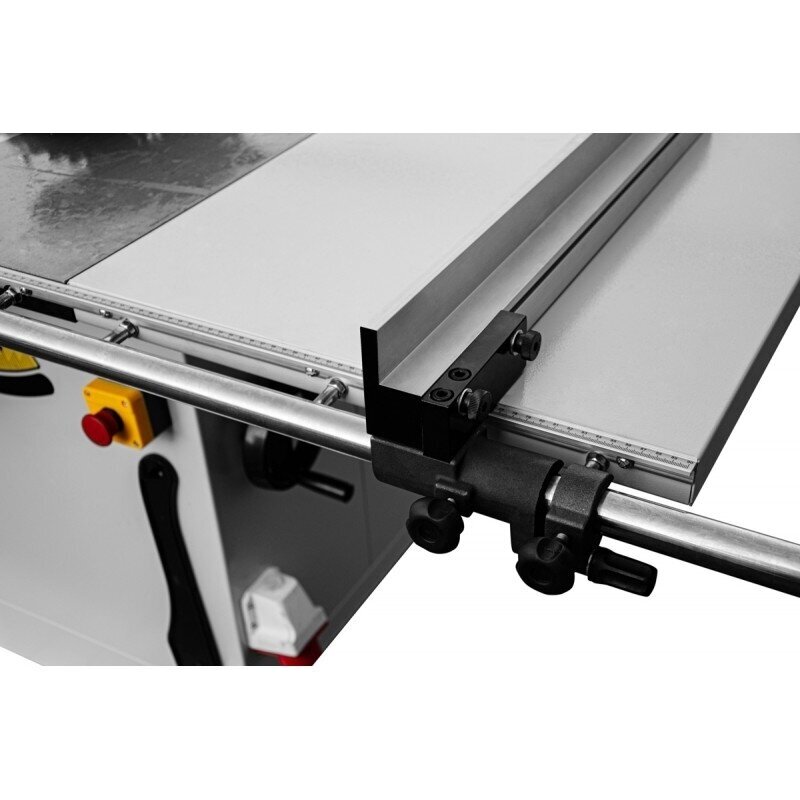

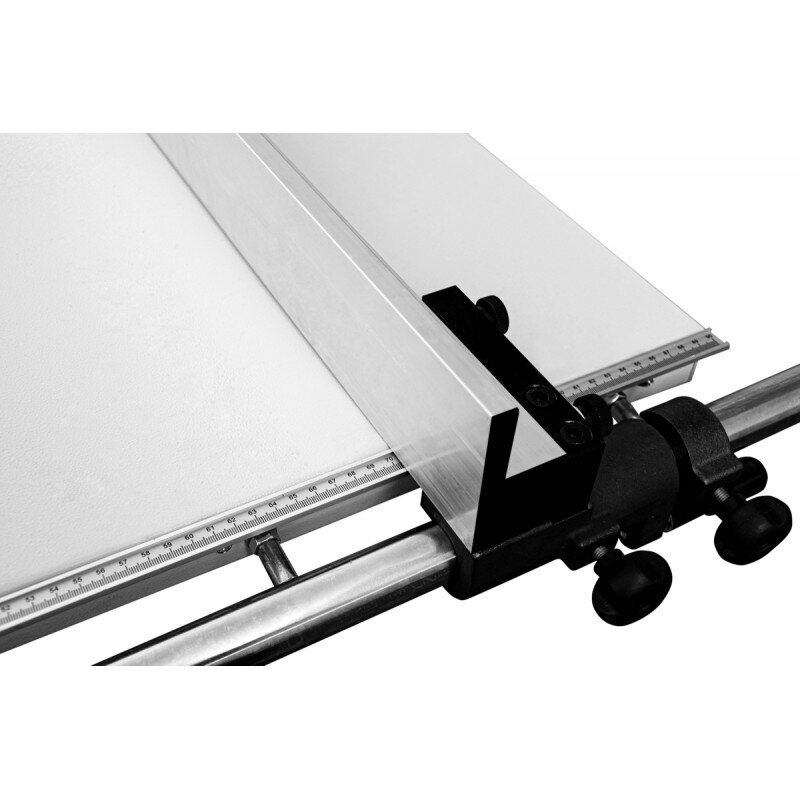

Precision parallel stop with fine adjustment.

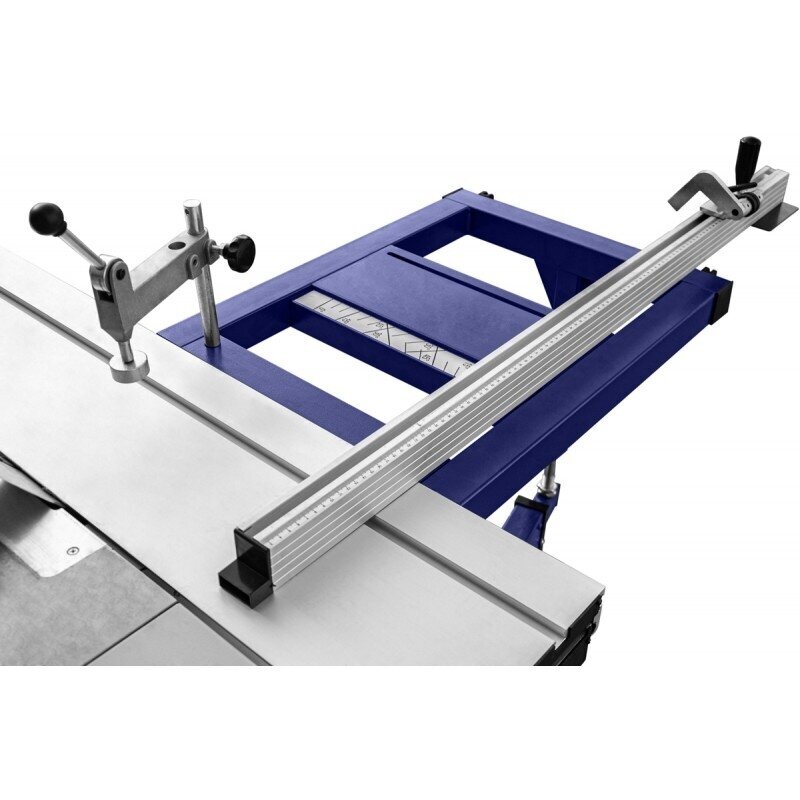

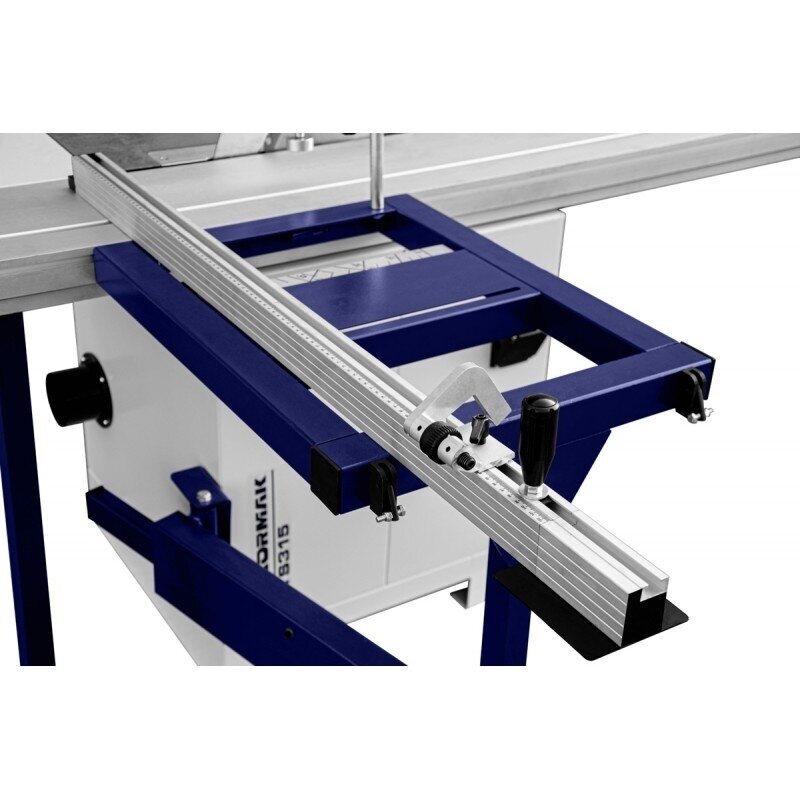

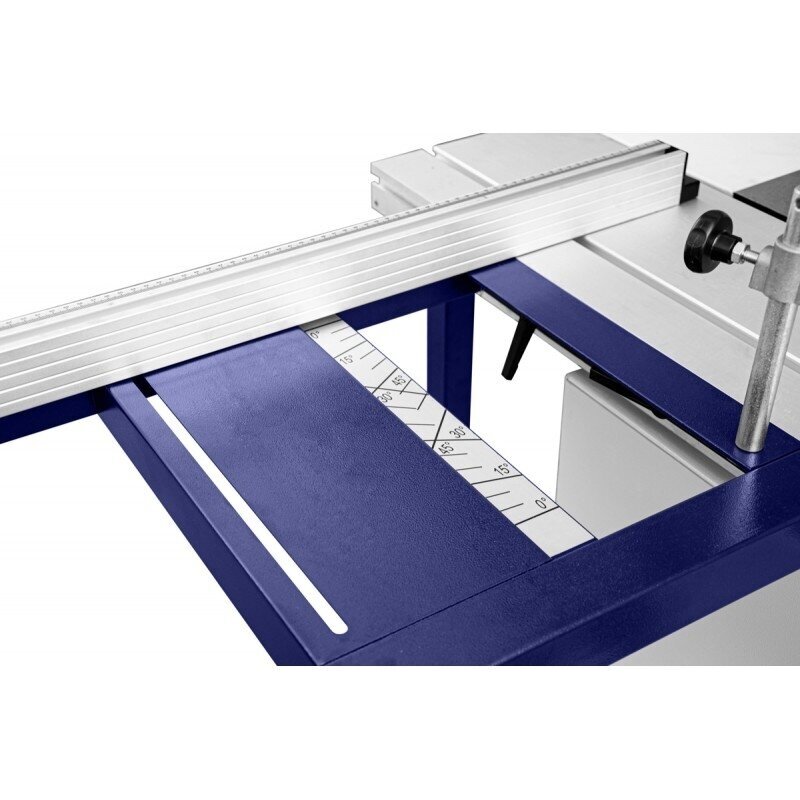

Sturdy telescopic arm and extendable extension table
Large drive motor guarantees consistent cutting speed, even at a cutting height of 100 mm
Technical data
Shield dimensions |
315x30x3.2mm |
Saw speed |
4250 rpm |
Max. cutting height 90/45 degrees |
100/75mm |
Max. cutting width on the guide |
940 mm |
Workbench dimensions |
800 x 365 mm |
Table extension |
760 x 600 mm |
Expanding the table |
500 x 350 mm |
Sliding table |
1600 x 238 mm |

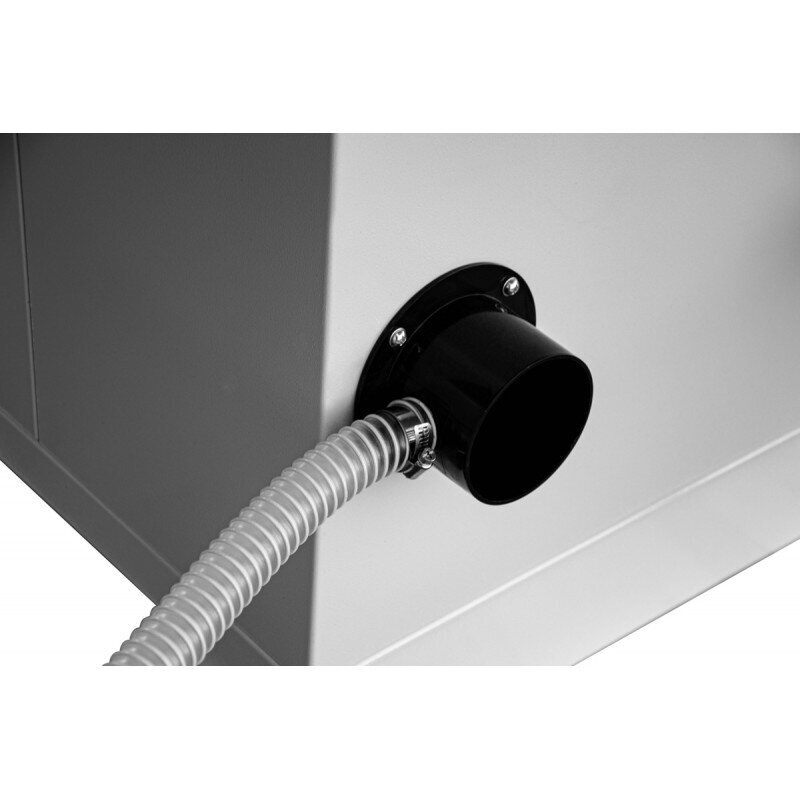

Suction port diameter |
100 mm |
Motor power |
2.8 kW |
Supply voltage |
400 V |
Weight |
245 kg |
Machine dimensions |
1540 x 2400 x 1300mm |
-
-
