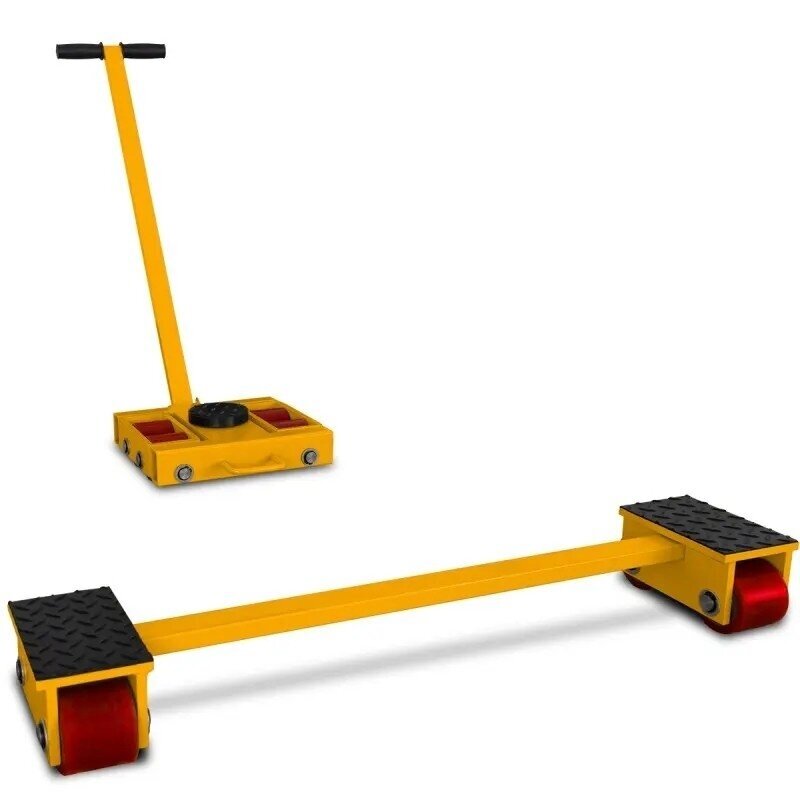

Cormak WL3+WF3 Heavy load moving system skate set 6 TON
-
Cormak WL3+WF3 Heavy load moving system skate set 6 TON
-
Description
Transport rollers allow safety and easy transport of heavy items. Thanks to the use the polyurethane tread rollers, the transported machine and floor are not damaged.
Technical data
|

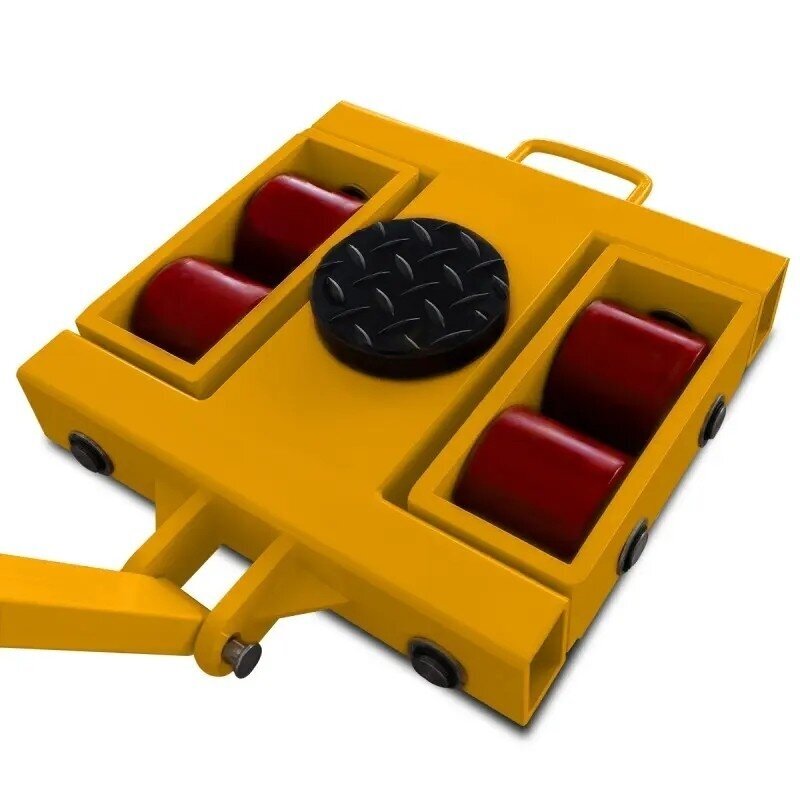

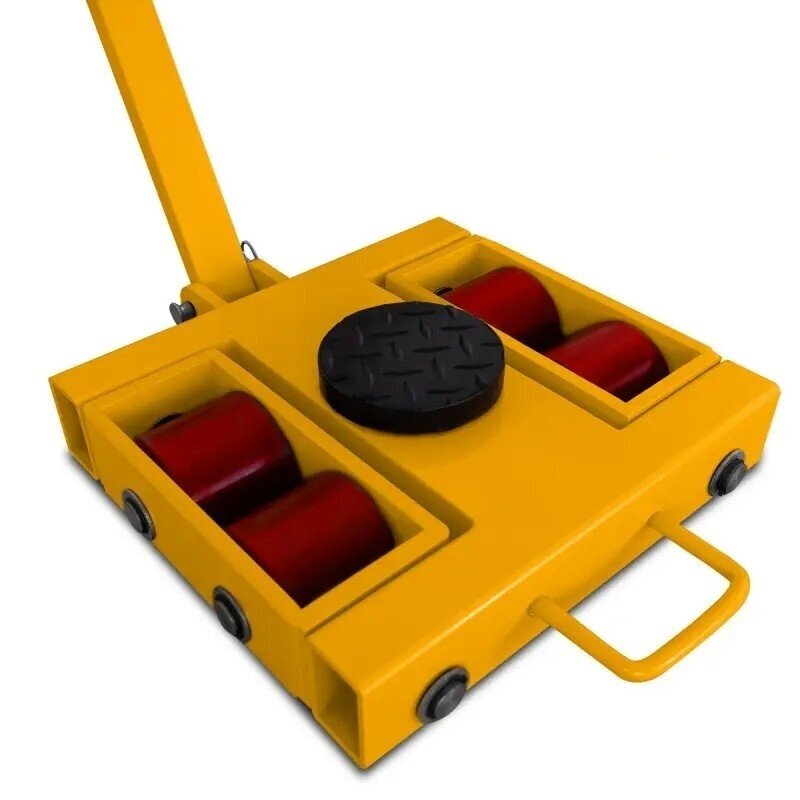

Technical parameters WL3
|
|
|
Size of rollers
|
85x85 mm
|
|
Number of rollers
|
4
|
|
Loading weight
|
3000 kg
|
|
Loading height
|
110 mm
|
|
Bearing surface for the element
|
Ø170 mm
|
|
Support points
|
1
|
|
Lenght of shaft
|
950 mm
|
|
Turning angle of shaft
|
± 90 o
|
|
Dimensions (L x W)
|
270x230 mm
|
|
Weight
|
12 kg
|
|

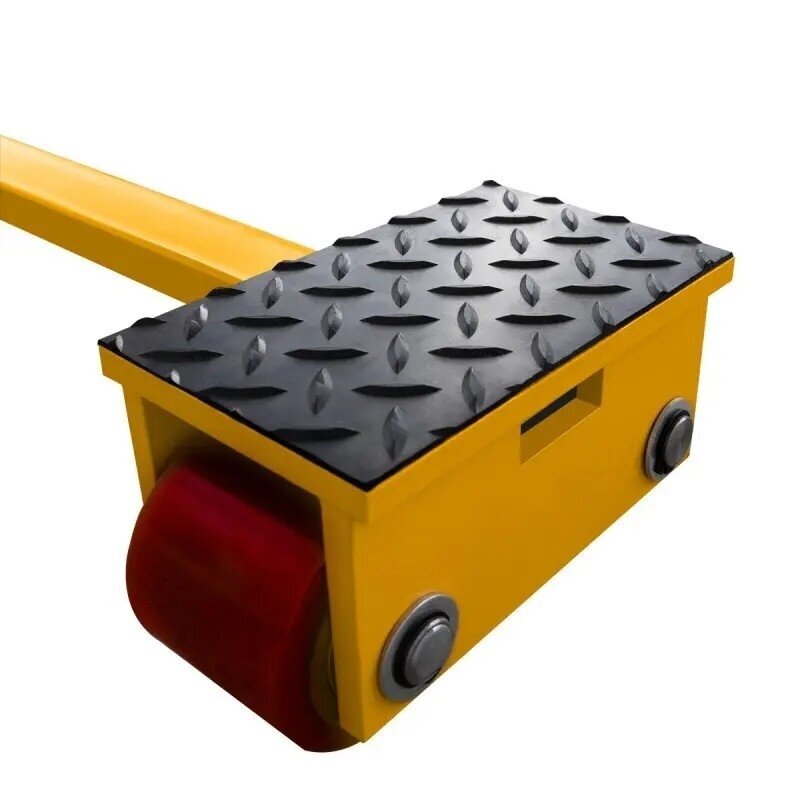

Technical parameters WF3
|
|
|
Size of rollers
|
85x85 mm
|
|
Number of rollers
|
4
|
|
Loading weight
|
3000 kg
|
|
Loading height
|
110 mm
|
|
Supporting surface for the elements
|
150x150 mm
|
|
Support points
|
2
|
|
Connector lenght
|
1000 mm
|
|
Spacing width between rollers
|
300 - 1000 mm
|
|
Weight
|
15 kg
|
