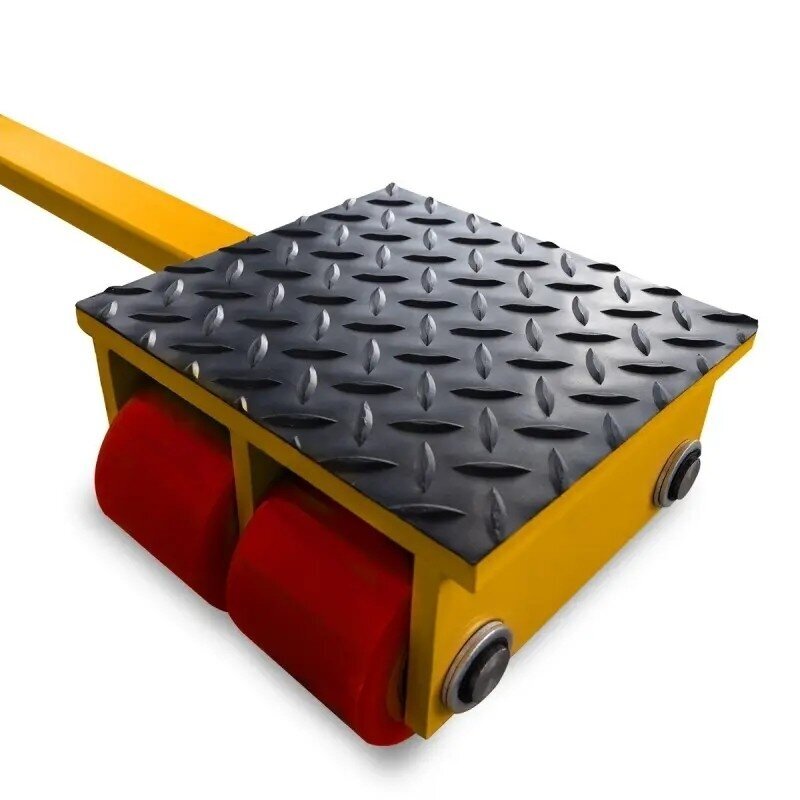

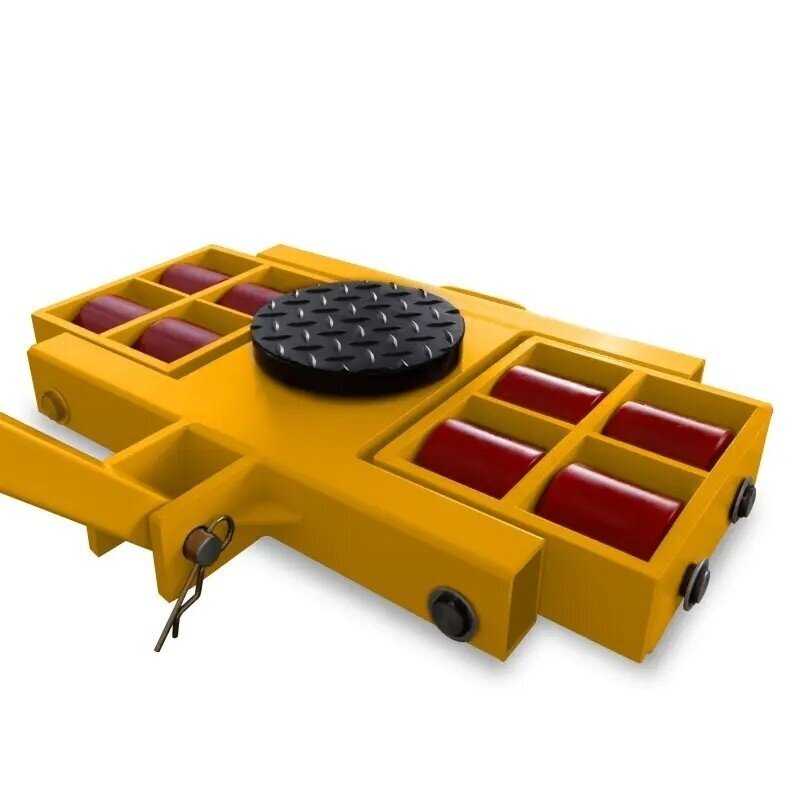

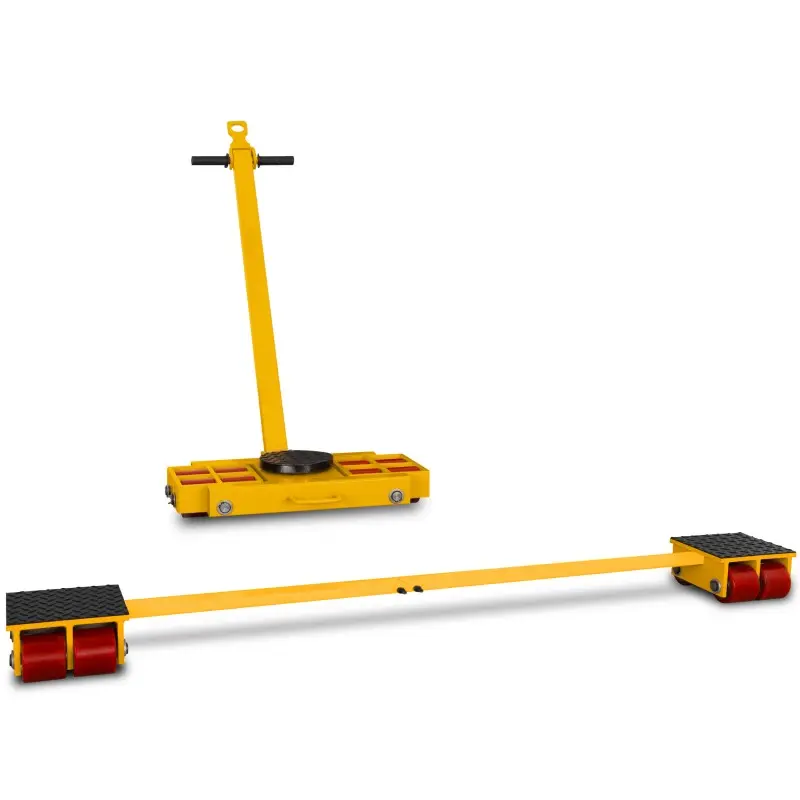

Cormak WL9+WF9 Heavy load moving system skate set 18 TON
-
Cormak WL9+WF9 Heavy load moving system skate set 18 TON
-
Description
Transport rollers allow safety and easy transport of heavy items. Thanks to the use the polyurethane tread rollers, the transported machine and floor are not damaged.
Technical data
|
Technical parameters WL9
|
|
|
Size of rollers
|
85x85 mm
|
|
Number of rollers
|
12
|
|
Loading weight
|
9000 kg
|
|
Loading height
|
110 mm
|
|
Bearing surface for the element
|
Ø170 mm
|
|
Support points
|
1
|
|
Lenght of shaft
|
1080 mm
|
|
Turning angle of shaft
|
± 90 o
|
|
Dimensions (L x W)
|
840x583 mm
|
|
Weight
|
59 kg
|
|
Technical parameters WF9
|
|
|
Size of rollers
|
85x85 mm
|
|
Number of rollers
|
12
|
|
Loading weight
|
9000 kg
|
|
Loading height
|
110 mm
|
|
Supporting surface for the elements
|
320x200 mm
|
|
Support points
|
2
|
|
Connector lenght
|
1000 mm
|
|
Spacing width between rollers
|
840-1230 mm
|
|
Weight
|
34 kg
|
