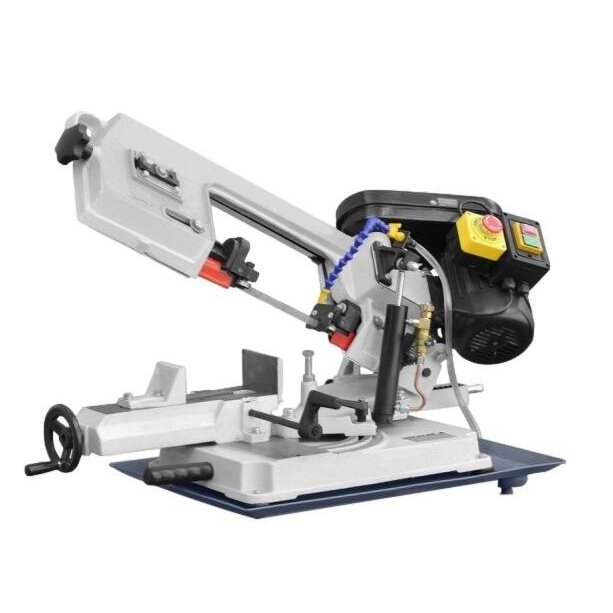

ESSLO BS 128 HDRC 400V Band Saw
-
ESSLO BS 128 HDRC 400V Band Saw
-
Most important advantages:

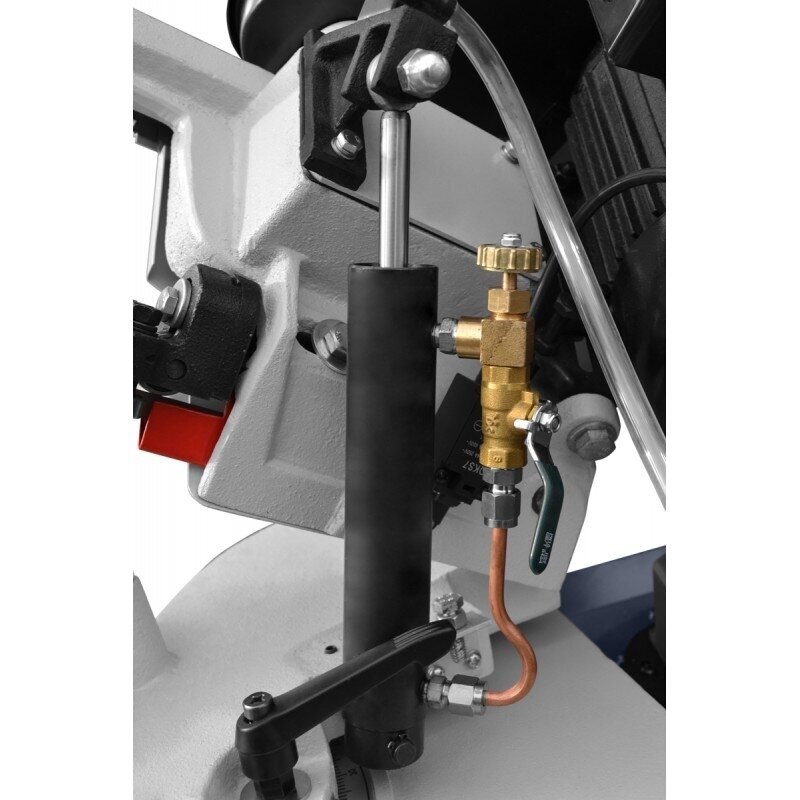

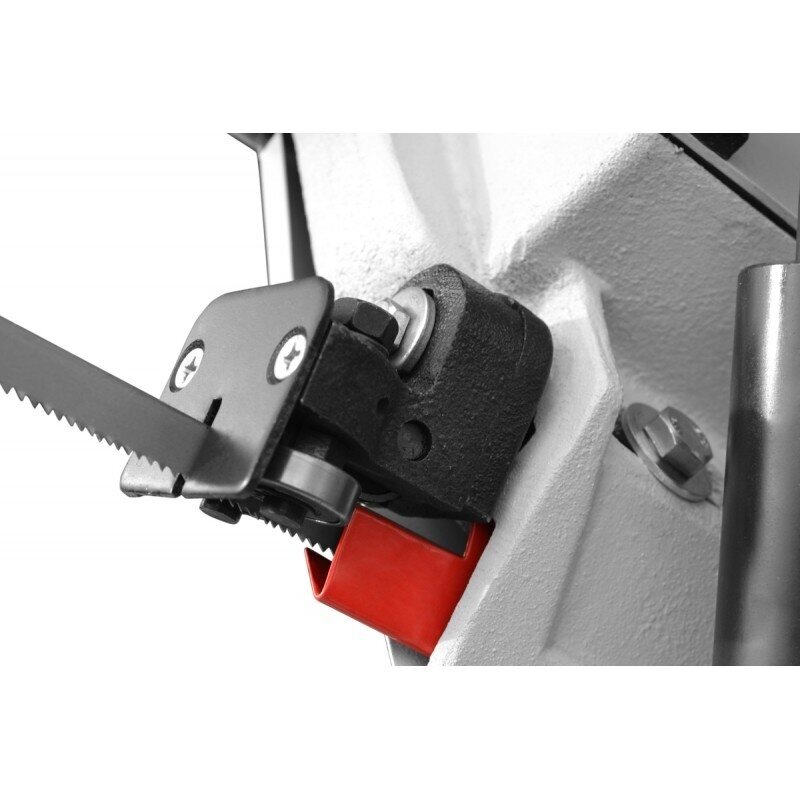

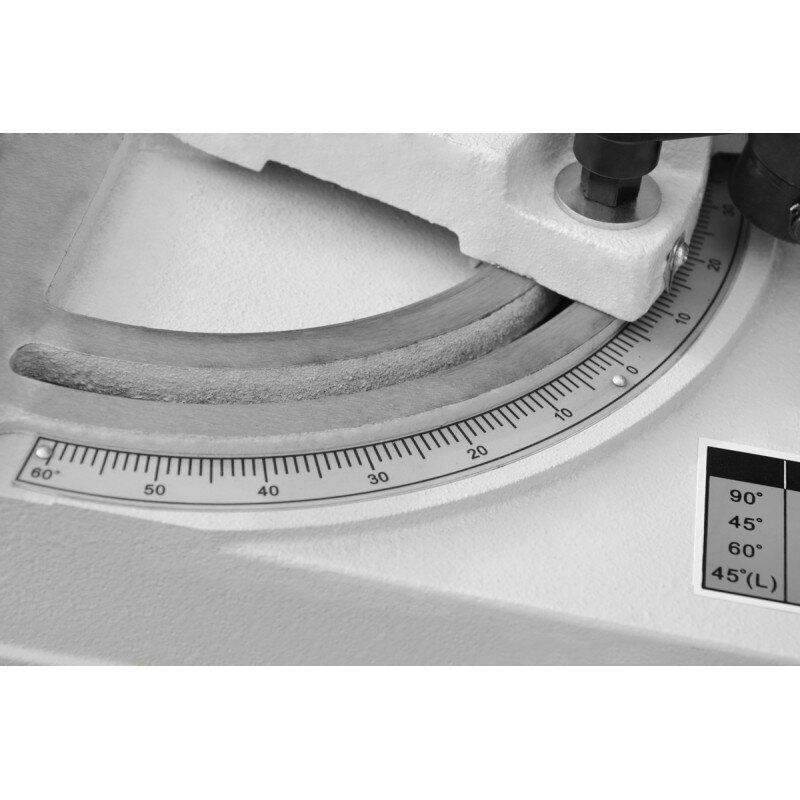

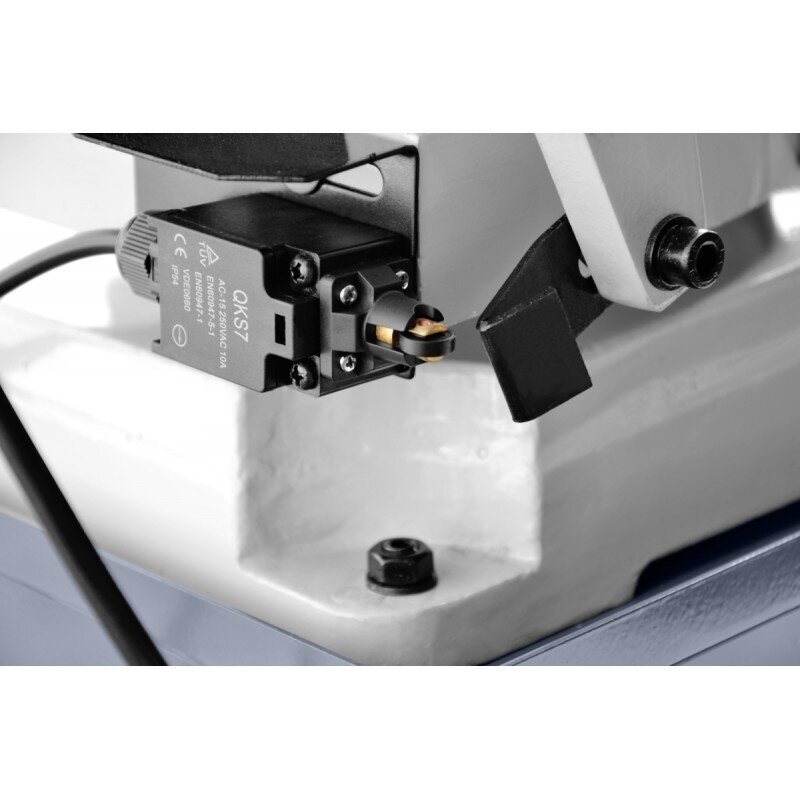

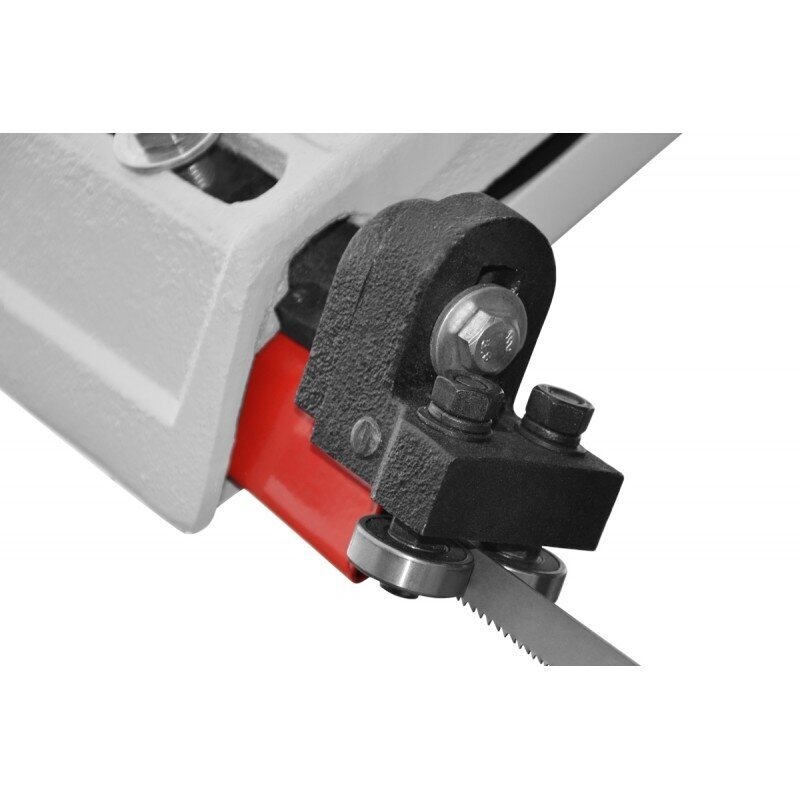

ESSLO BS 128 400V band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its weight makes it stable and vibration-free during cutting materials. Element cut can be fed manually or via feeding machines. Feed during cutting is gravitational, with oil flow in a two-chamber hydraulic cylinder. Arm lowering control is ensured by a valve controlling oil flow between chambers of cylinder. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45o - + 60o.
Technical data
Cutting band size
|
1640×13×0,65 mm |
Band tension
|
mechanical (manual)
|
|
Band speed |
20/ 29 / 50 m/min |
Arm lowering control
|
stepless – hydraulic cylinder |
Power supply
|
3-phase, 400 V
|
|
Total power |
0,6 kW |
|
Weight |
78 kg
|
|
Angle |
 |
 |
 |
|
0º |
ø128 |
150x127 |
100x100 |
|
-45º |
ø95 |
95x75 |
90x90 |
|
+60º |
ø44 |
56x44 |
40x40 |
-
