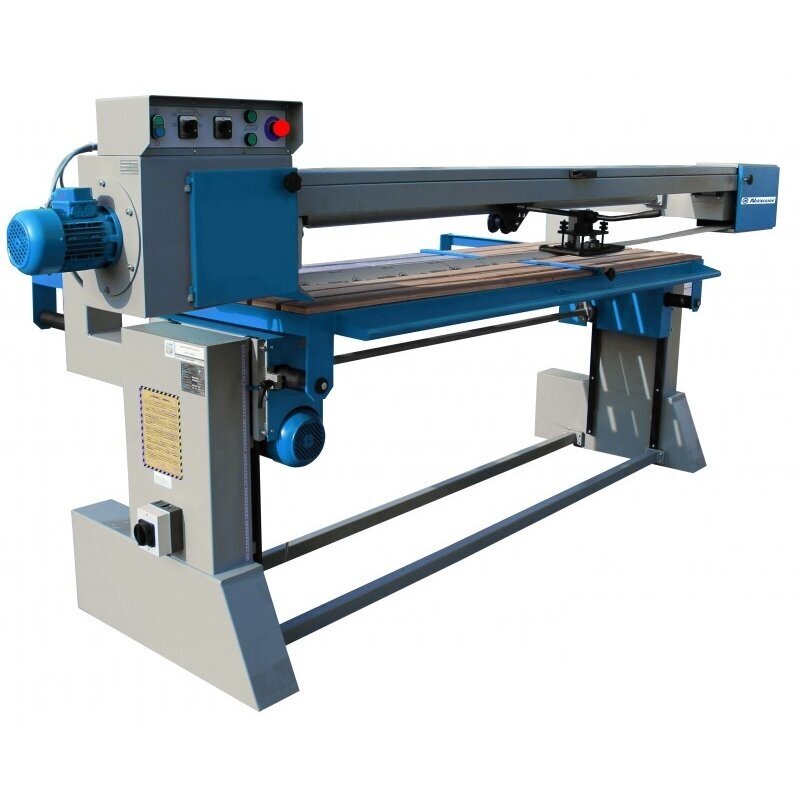

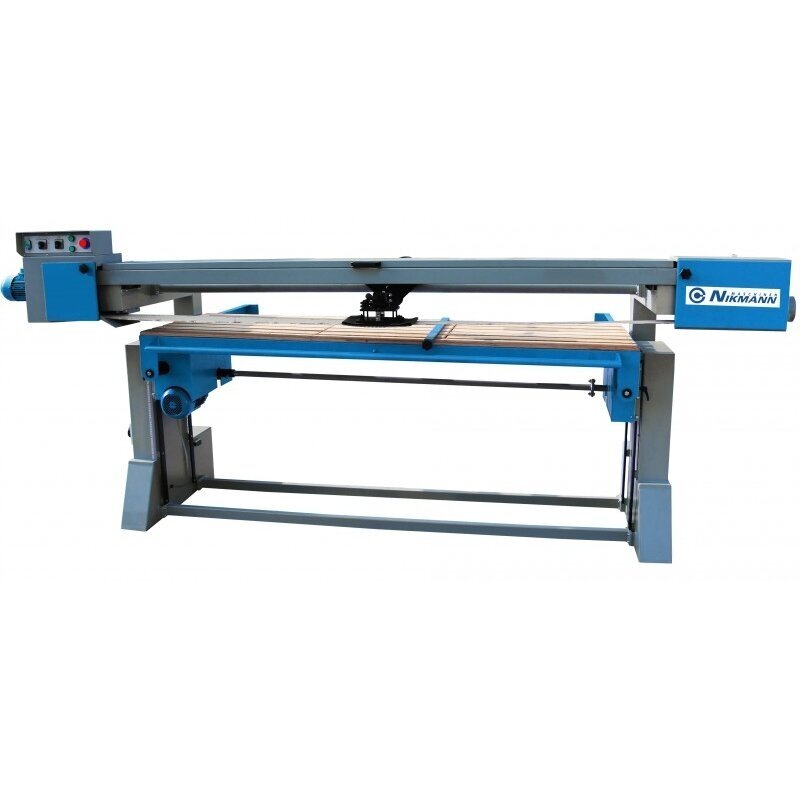

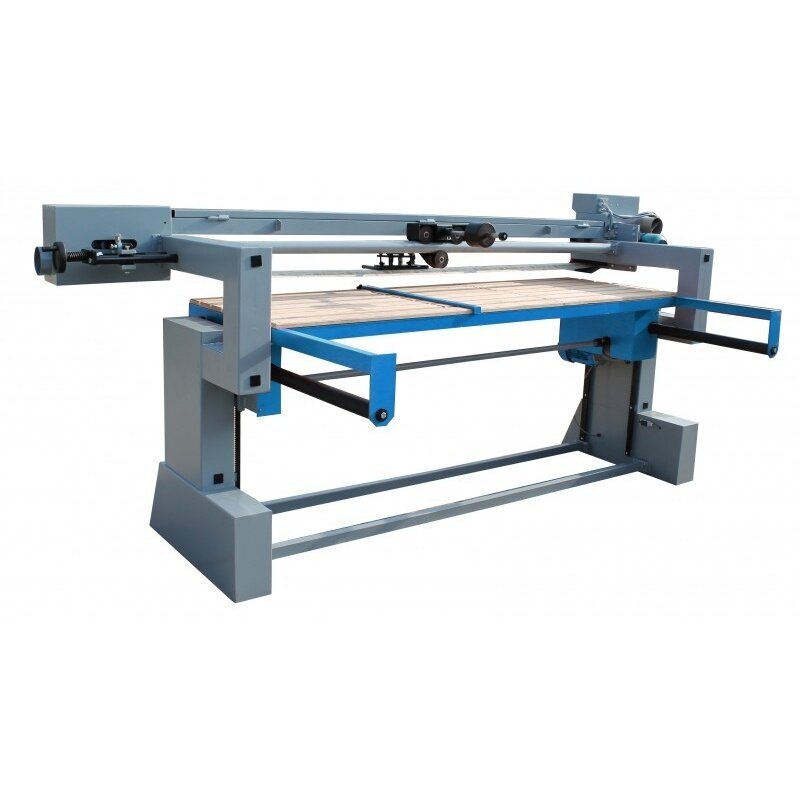

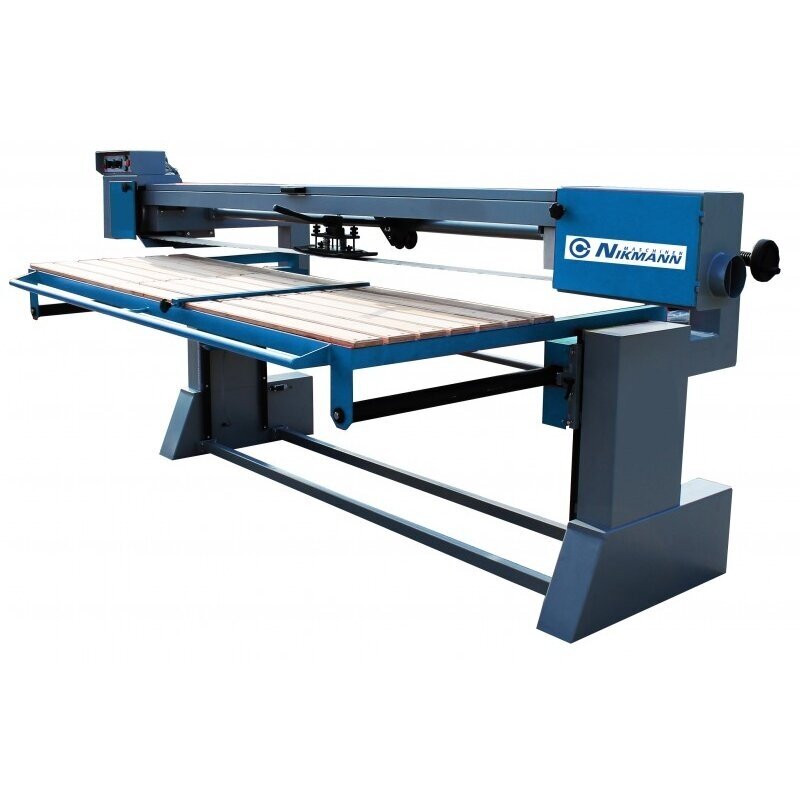

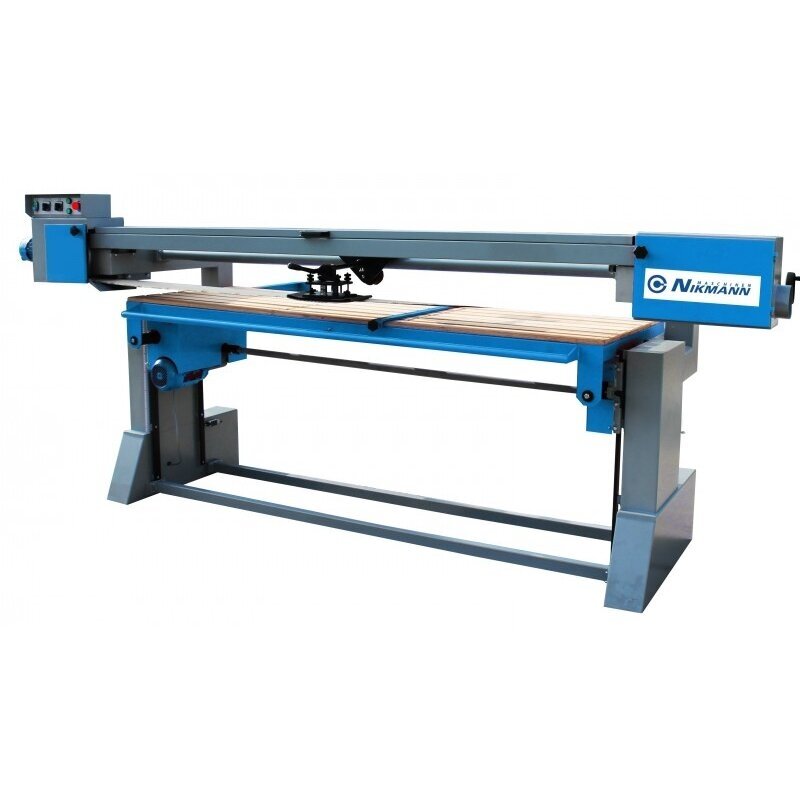

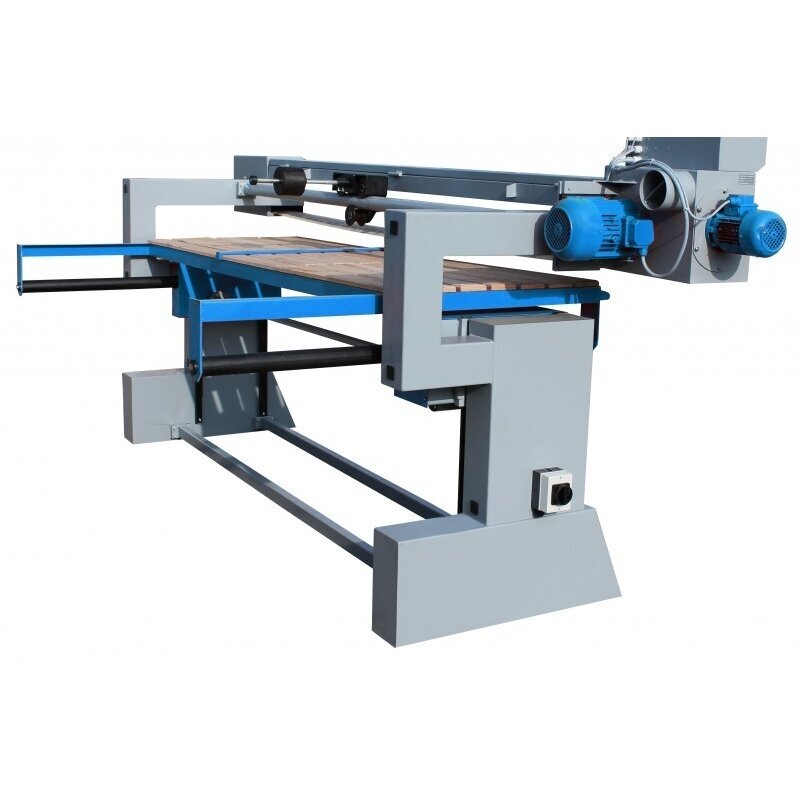

Long Belt Grinder STOMANA LBS 2500
-
Long Belt Grinder STOMANA LBS 2500
-
Technical data
|
Grinding length
|
2500 mm
|
|
Dimension of the table
|
2500 x 820 mm
|
|
Lifting the table
|
600 mm
|
|
Depth of the hole
|
600 mm
|
|
Length of the hole 210 mm
|
210 mm
|
|

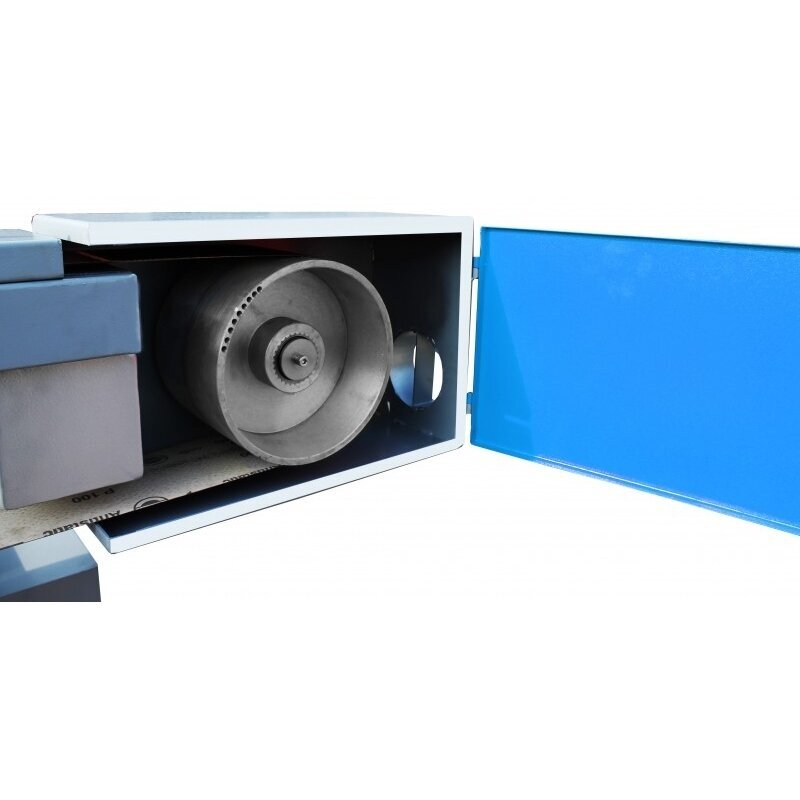

Diameter of rollers
|
240 mm
|
|
Electric set. Table height
|
|
|
Integrated extraction on a separate engine :
|
18 / 36 m/sec.
|
|
Turnover
|
right/left
|
|
Dimensions of the tape
|
150 x 7200 mm
|
|
Movement of the table top
|
700 mm
|
|
The removable inlet opening of the table (640x640mm) allows grinding of elements occupying a large area :
|
|
|

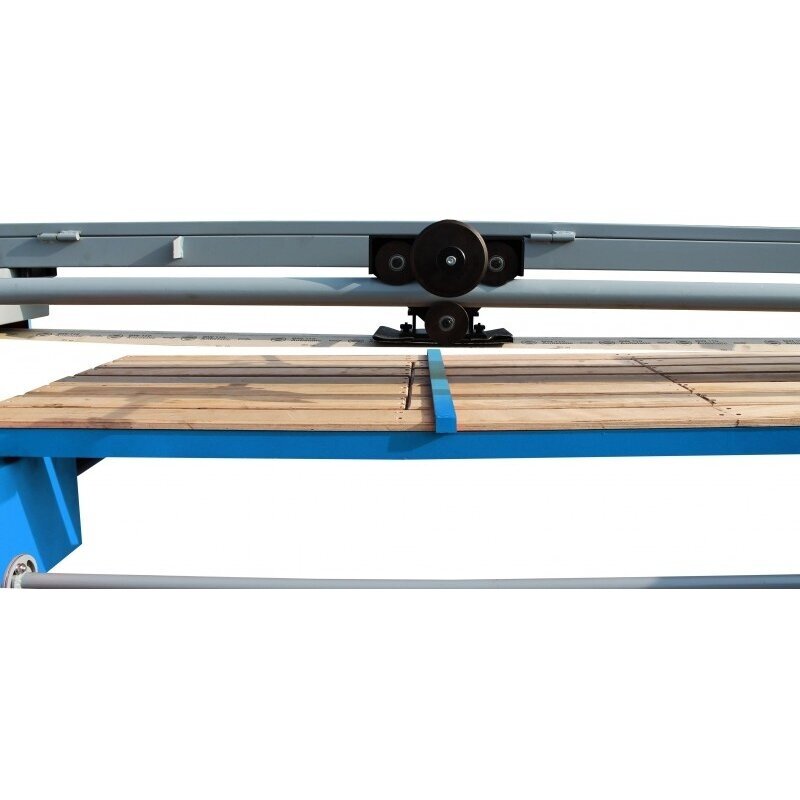

Graphite-coated grinding pad minimizes friction :
|
|
|
Engine
|
2.4 /3.0 kw / 400 v
|
|

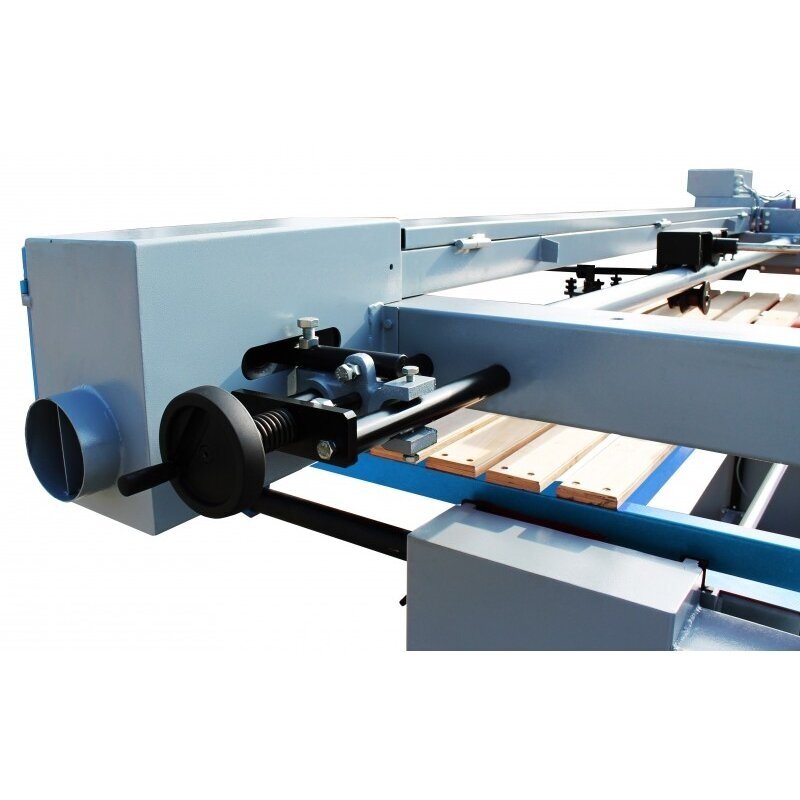

Extraction connector
|
2 x 120 mm
|
|
Dimensions the length. =4200,sz. =1600,h.=1500 mm
|
4200,sz. =1600,h.=1500 mm
|
|
Weight
|
540 kg
|
