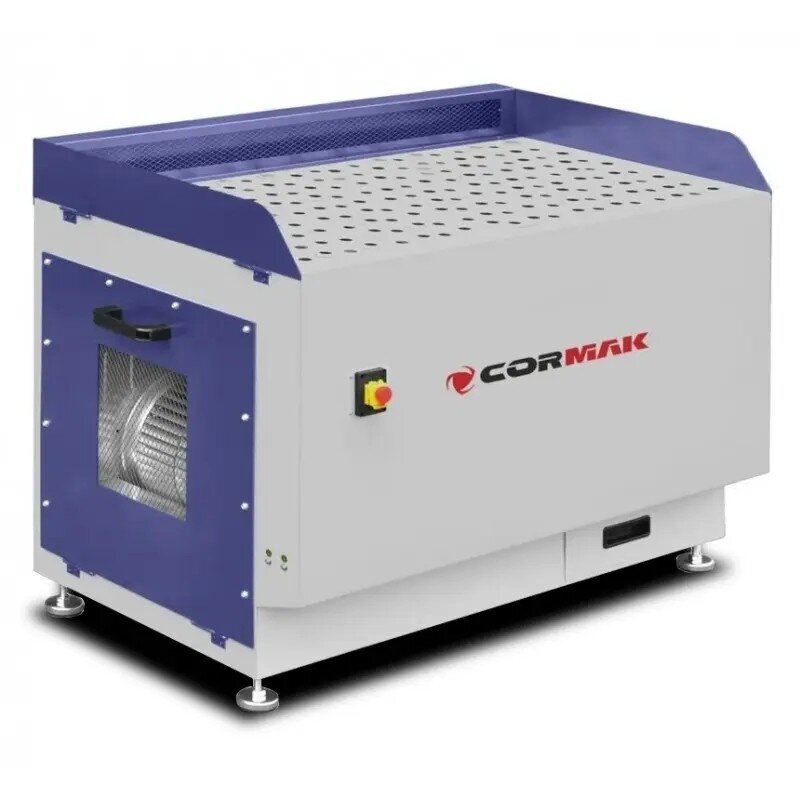

Grinding Table with Extraction DT1000M – efficient solution for metal grinding
The DT1000M grinding table is a professional workstation designed for intensive grinding operations in industrial environments. The device has been engineered to ensure operator safety and workplace cleanliness. With its efficient extraction system and robust construction, the DT1000M is perfect as a metal grinding table for paint shops, locksmith workshops, and production facilities.
Main advantages
High extraction efficiency – airflow capacity up to 4000 m³/h ensures effective removal of dust and debris.

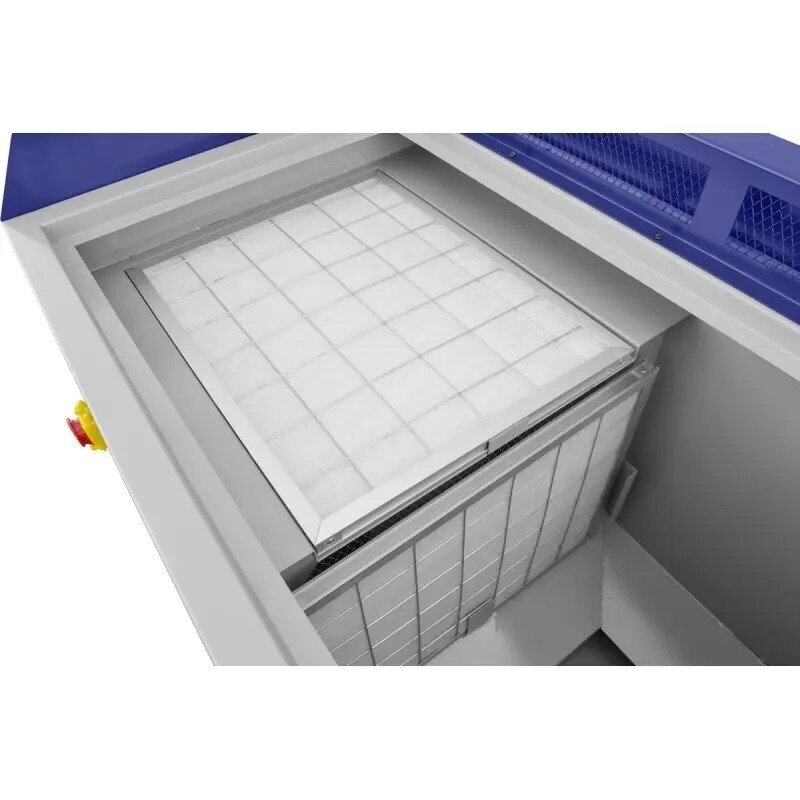

Integrated filtration system – an independent unit with a heat-resistant filter cleans the air from fine grinding dust and particles.

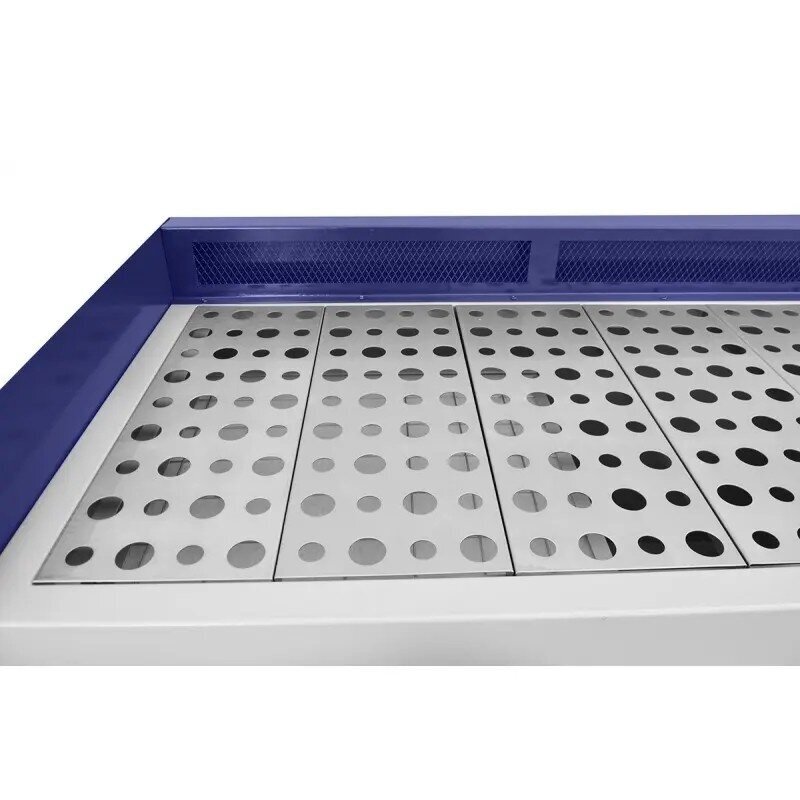

Segmented worktop – five-piece construction allows easy detail mounting and convenient filter access for cleaning and maintenance.
Multi-zone ventilation – suction from the lower and side sections increases dust collection efficiency.
High vacuum pressure – guarantees filtration efficiency exceeding 99.9%.

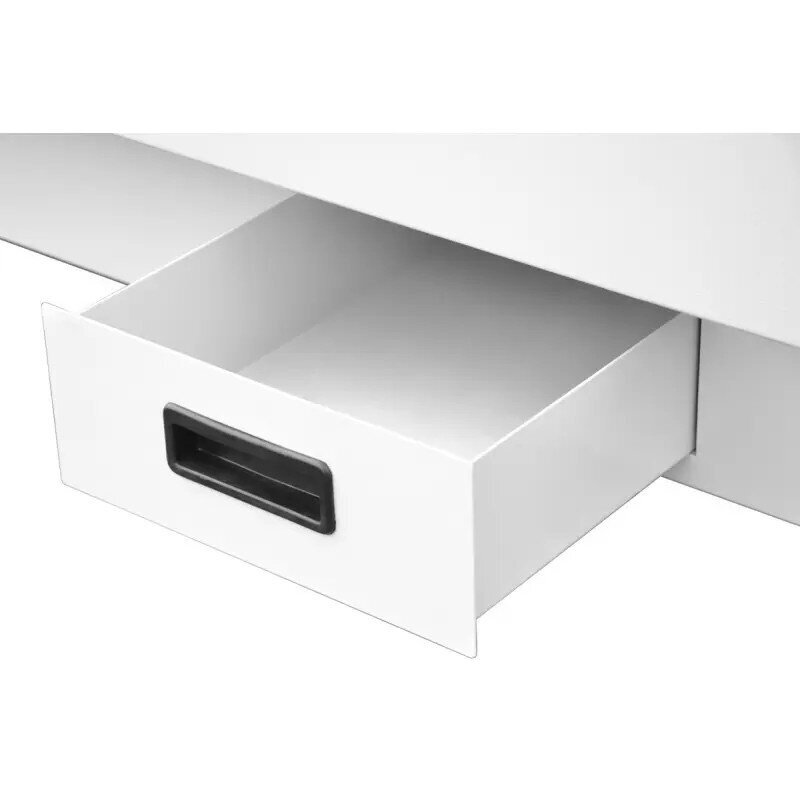

Large metal drawer – enables easy segregation of fine and coarse grinding residues.
Construction and technology

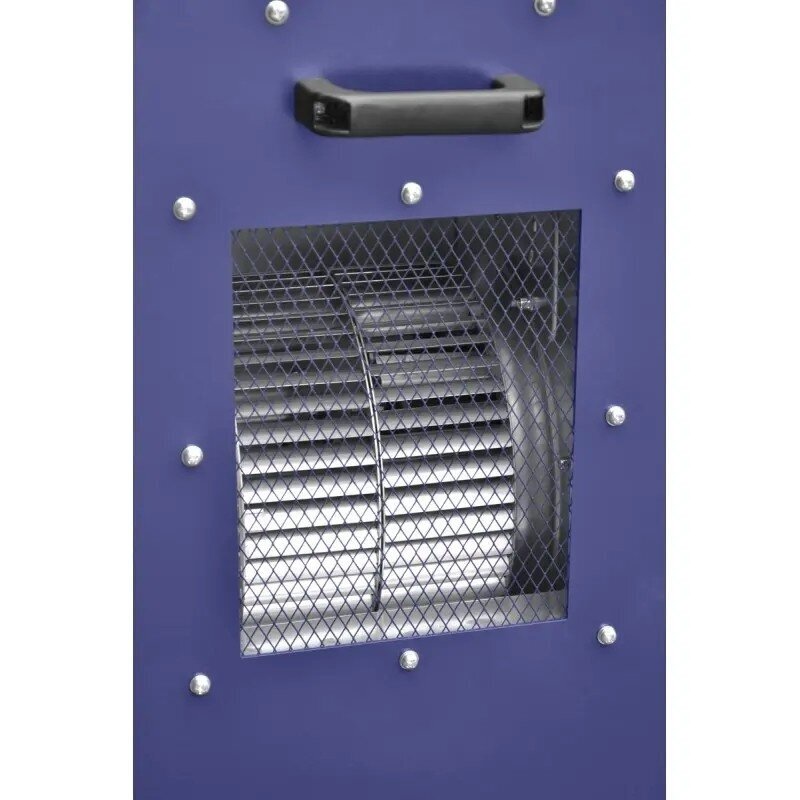

The DT1000M compact grinding table is built from durable components designed for demanding industrial use. The inclusion of a high-performance radial fan extends filter life and allows for long-term operation without frequent replacement of consumable parts. The tabletop design ensures easy mounting of workpieces and unrestricted service access to the filtration system.
Precision and performance
High extraction efficiency directly improves operator safety and comfort. The effective filtration system of the DT1000M maintains clean air in the workspace, protecting the operator’s respiratory system and preventing metallic dust accumulation. The ergonomic table height of 850 mm ensures comfortable operation during long working cycles.
Applications
Grinding and deburring of metal parts
Surface finishing in industrial paint shops
Manual finishing workstations in locksmith workshops
Production plants with high air quality requirements
Standard equipment
Integrated extraction and filtration system
Segmented worktop
Metal waste drawer
Technical data
|
Worktop dimensions |
1000x550 mm |
|
Working height |
850 mm |
|
Airflow capacity |
4000 m³/h |
|
Filter size |
2 x (395x495x24 mm) |
|
Motor power (S1) |
1.0 kW |
|
Voltage |
230 V |
|
Weight |
70 kg |
|
Dimensions |
1050 x 600 x 850 mm |
