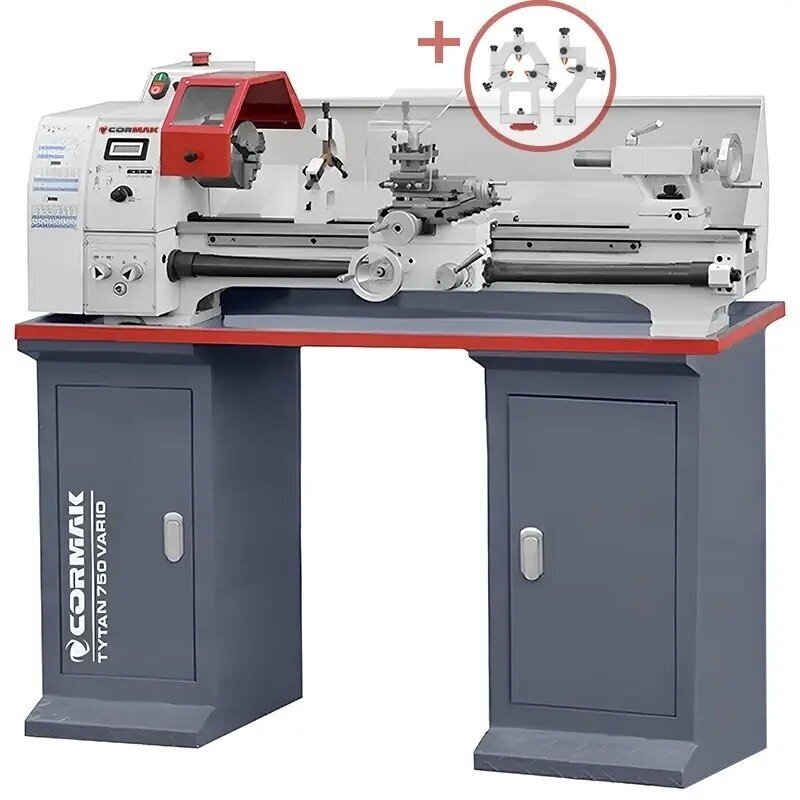

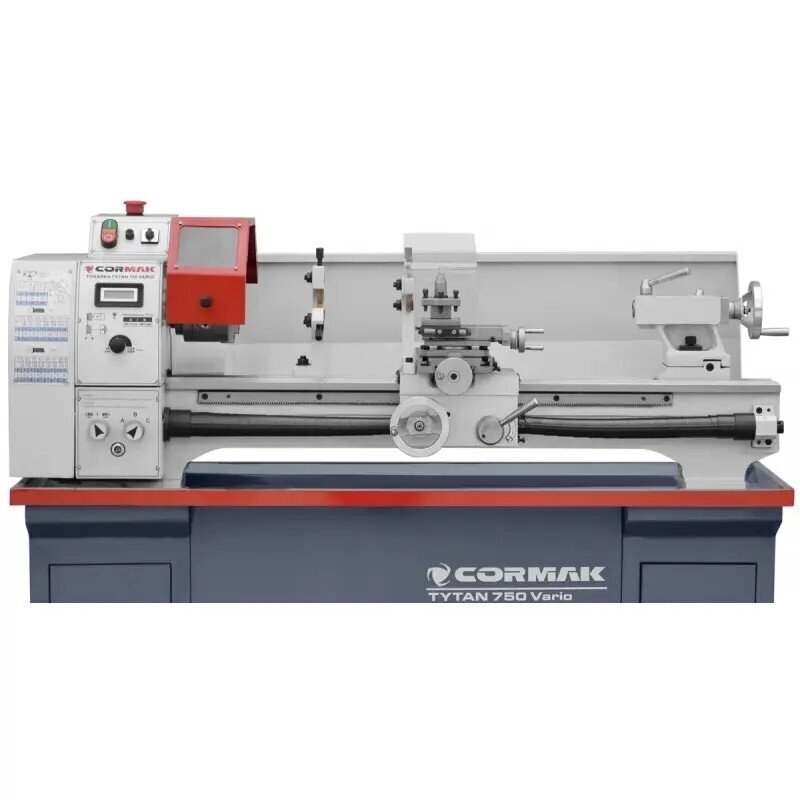

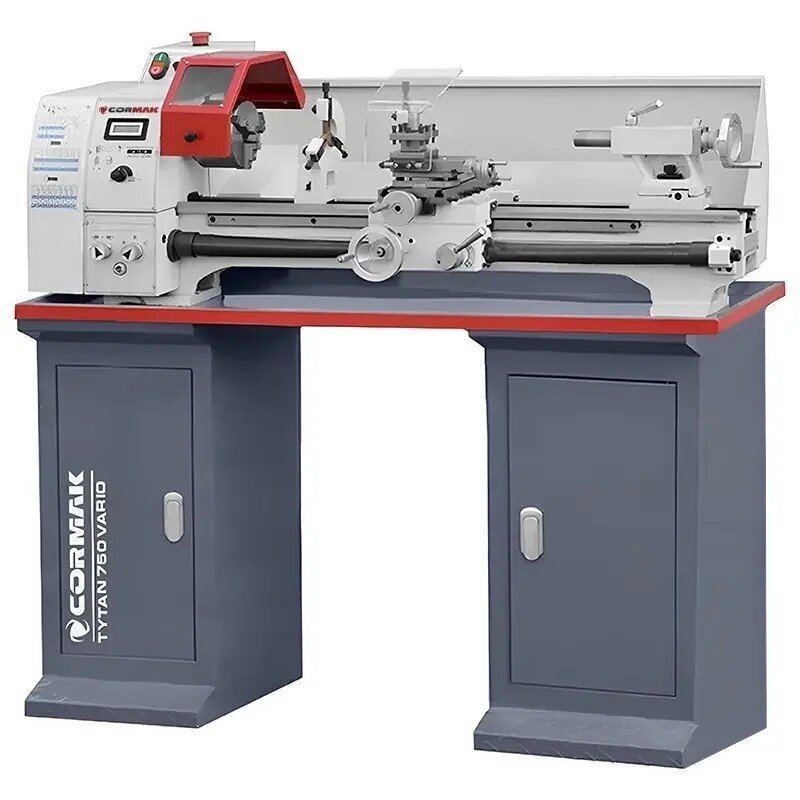

TYTAN 750 Vario Universal Lathe
TYTAN 750 Vario Universal Lathe
ManufacturerCormakBrandCormak-
Most important advantages:

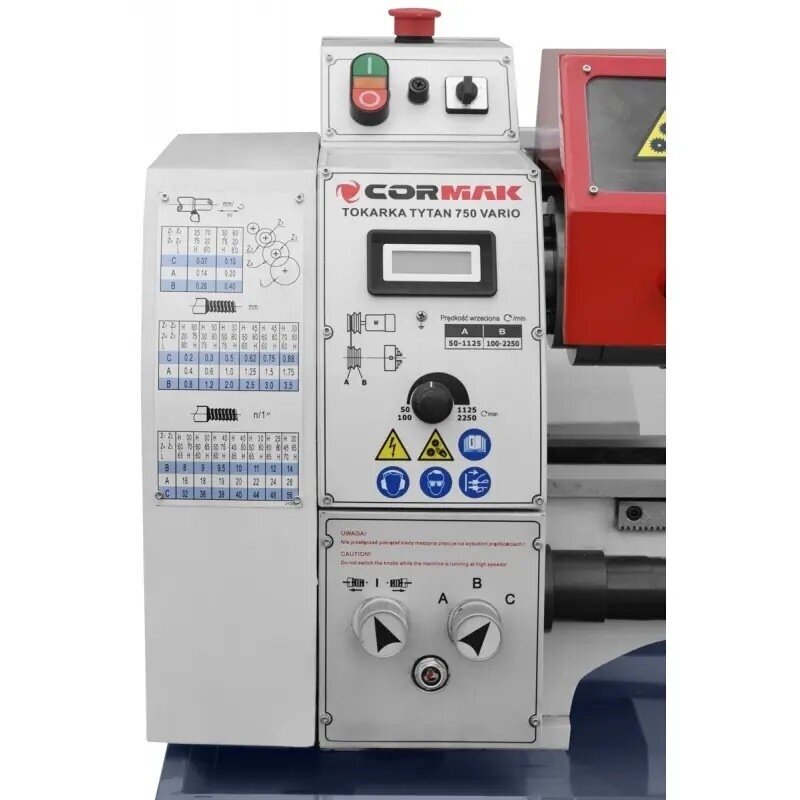

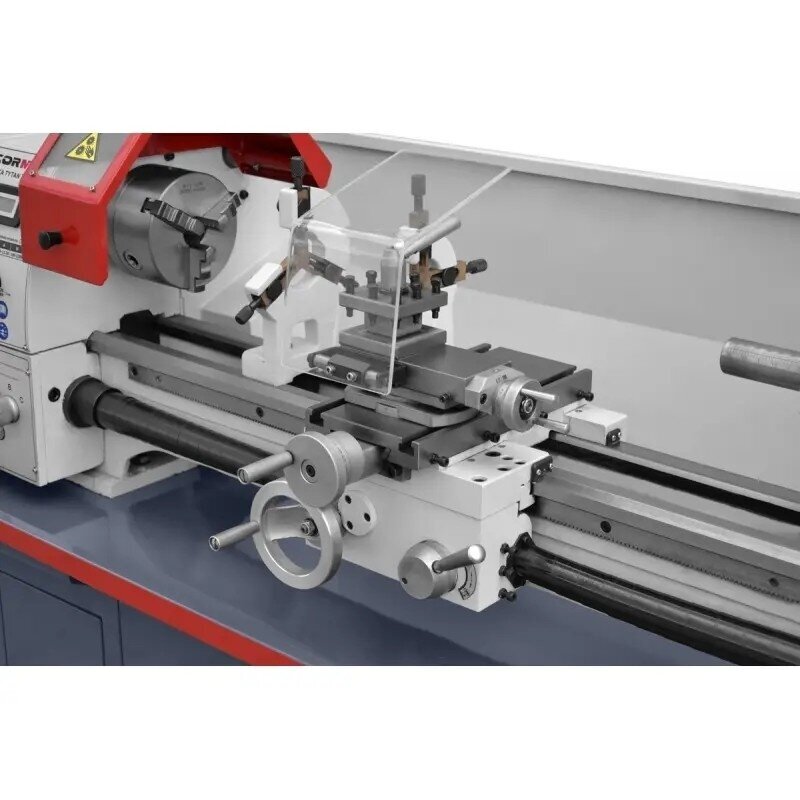

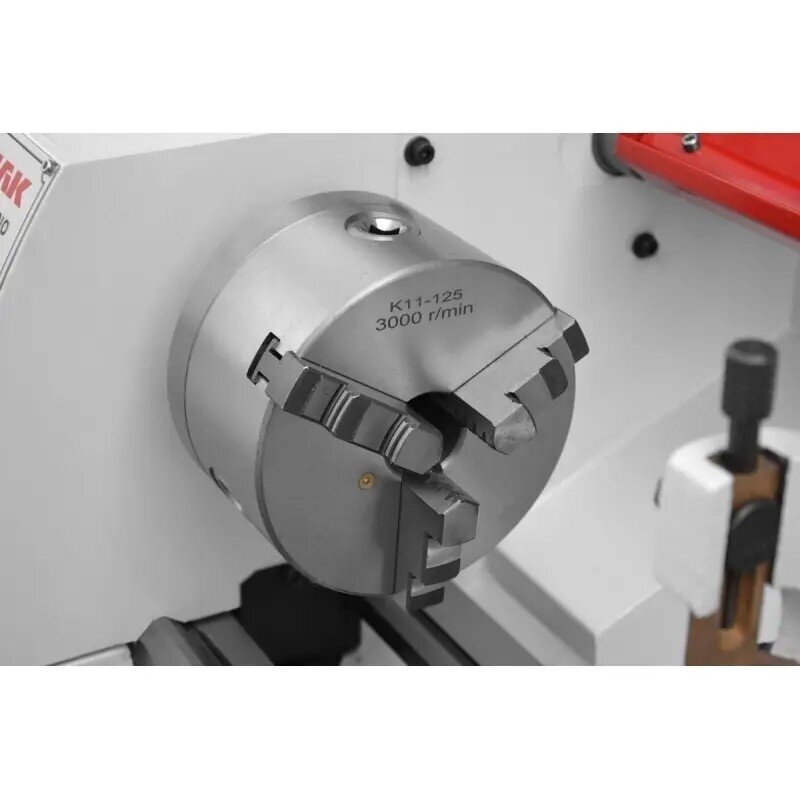

Equipped with multiple useful features, such as 250/750 mm turning, smooth spindle speed adjustment adjustable with a potentiometer, LCD displayed spindle speed, threading capability, bed and guides inductively hardened and ground, change gears made of metal, lead screw in a cover - in accordance with the newest safety and EC regulations.Also features longitudinal feeds, strong 1.1 kW motor, follow and steady rests, 3-jaw 125 mm self-centering chuck and a base with drawers for tools or any different items.
This lathe is compliant with all European regulations and standards.
Technical data
Swing over bed
250 mm Swing over support
150 mm
Centres width 750 mm Bed width
135 mm Spindle bore 26 mm
Spindle taper MK4 Spindle speed adjustment smooth
Spindle speed 50–2250 rpm
Metric threads (18) 0.2–3.5 mm / rev. Inch threads (21) 8–56 threads/inch Feeds 0.07–0.4 mm/rev. Cross support travel range 70 mm Transverse travel range 110 mm Longitudinal travel range 650 mm Tailstock quill diameter 30 mm Tailstock quill travel 60 mm Tailstock taper MK2 Chuck size 125 mm Spindle motor 1.1 kW / 230V Tool holder dimensions 12 x 12 mm Dimensions (LxWxH) 1350 x 560 x 1250 mm Weight 205 kg

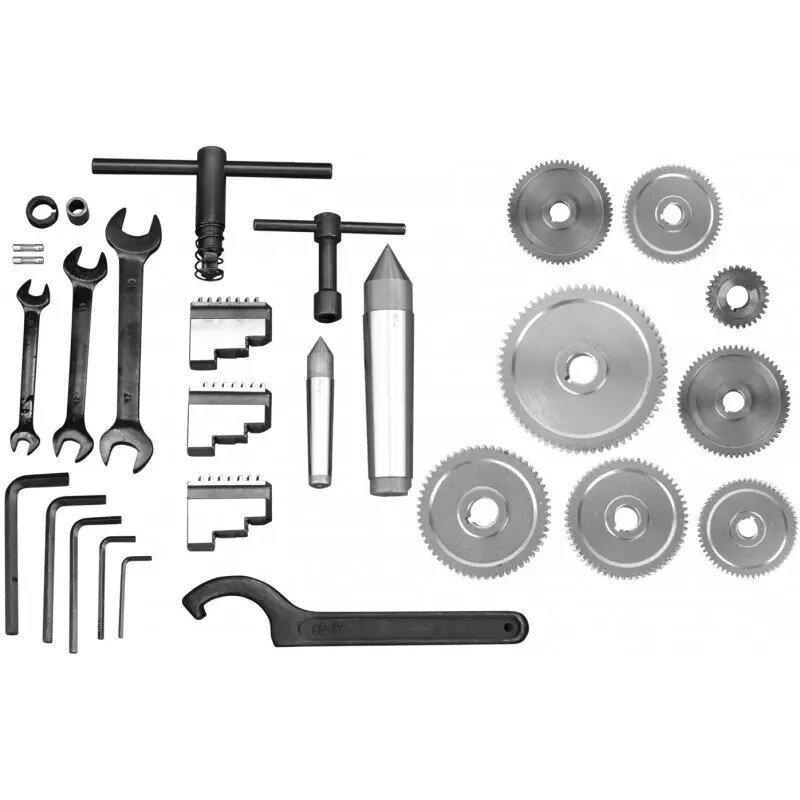

standard equipmentBase

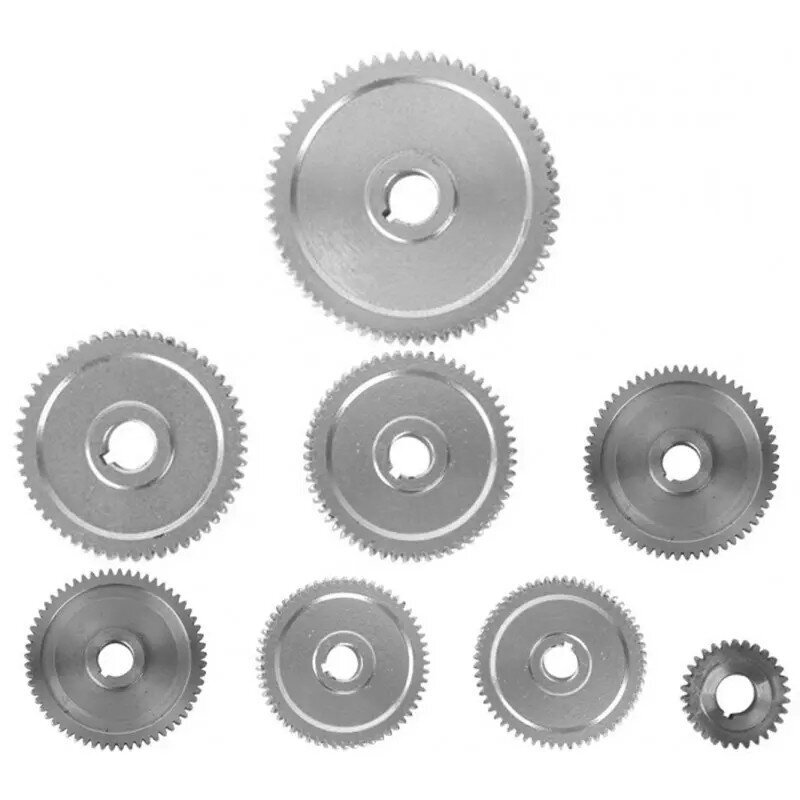

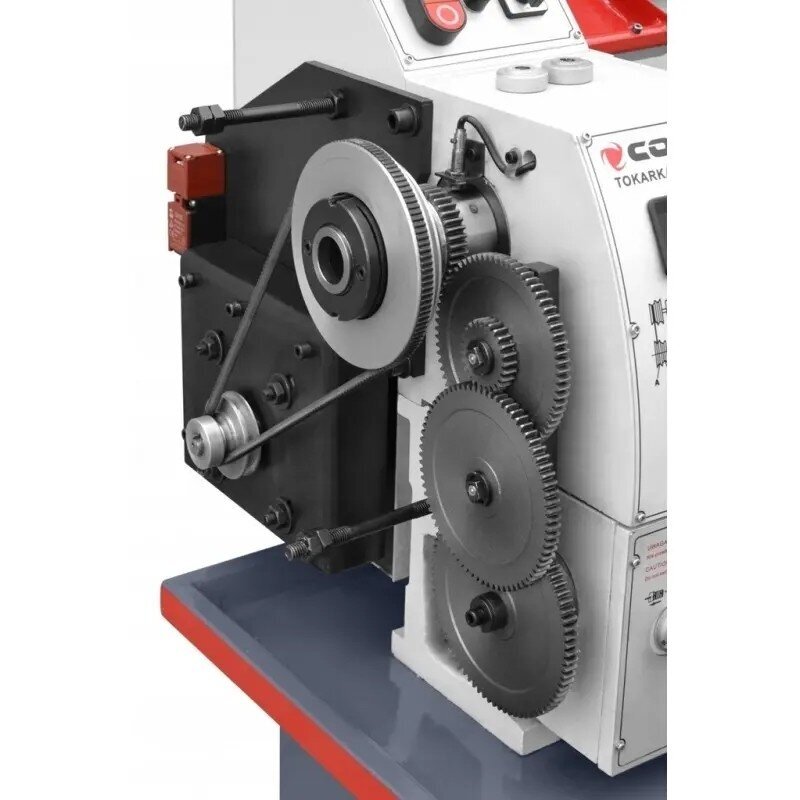

Change gears
MK4, MK2 dead centres
Set of jaws
Set of hex keys
Set of wrenches
Chuck key
Lubricator
Screwdrivers
