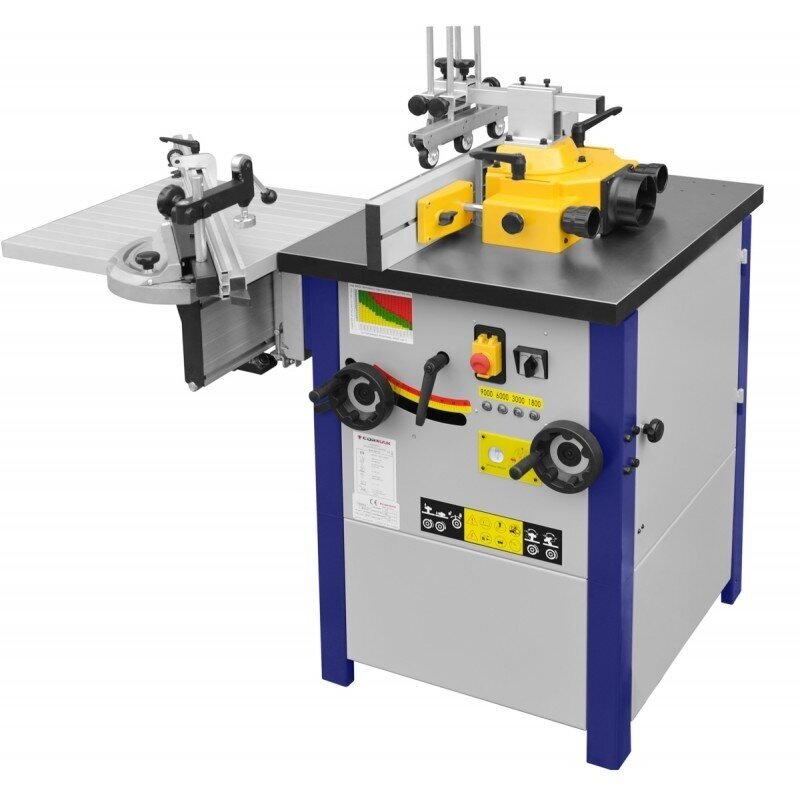

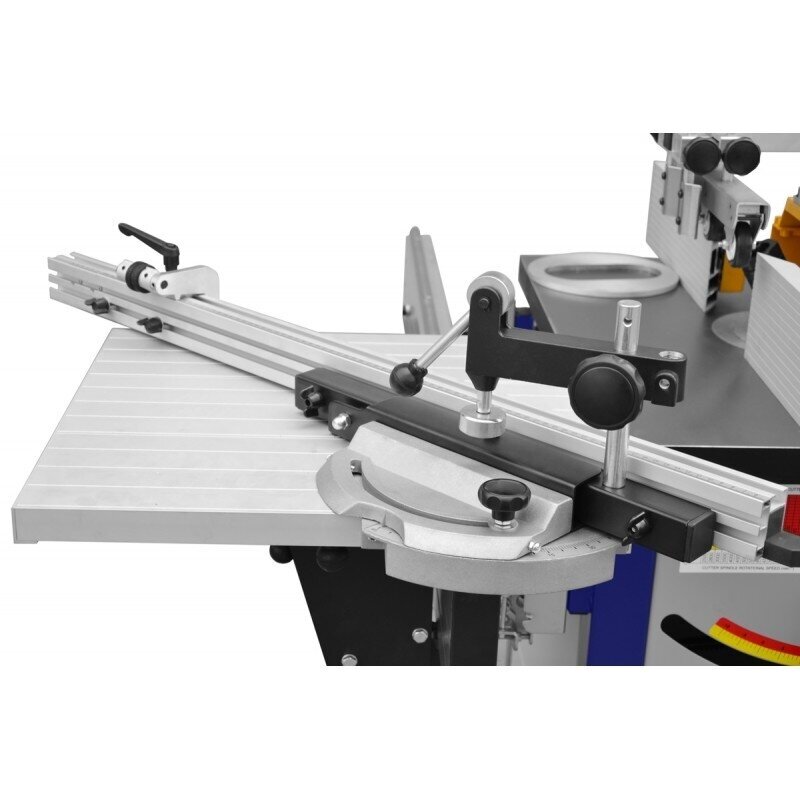

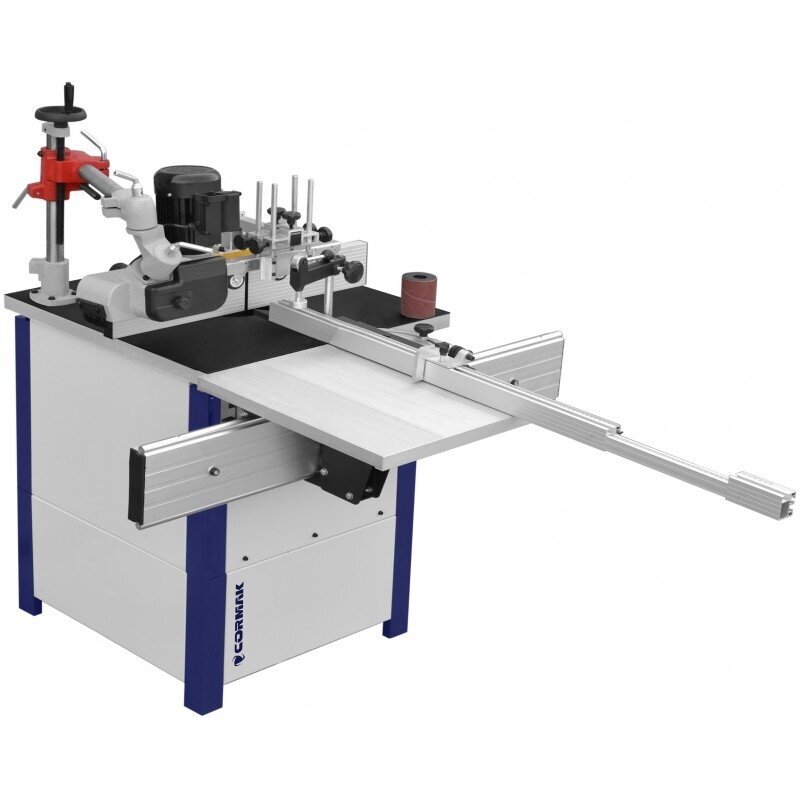

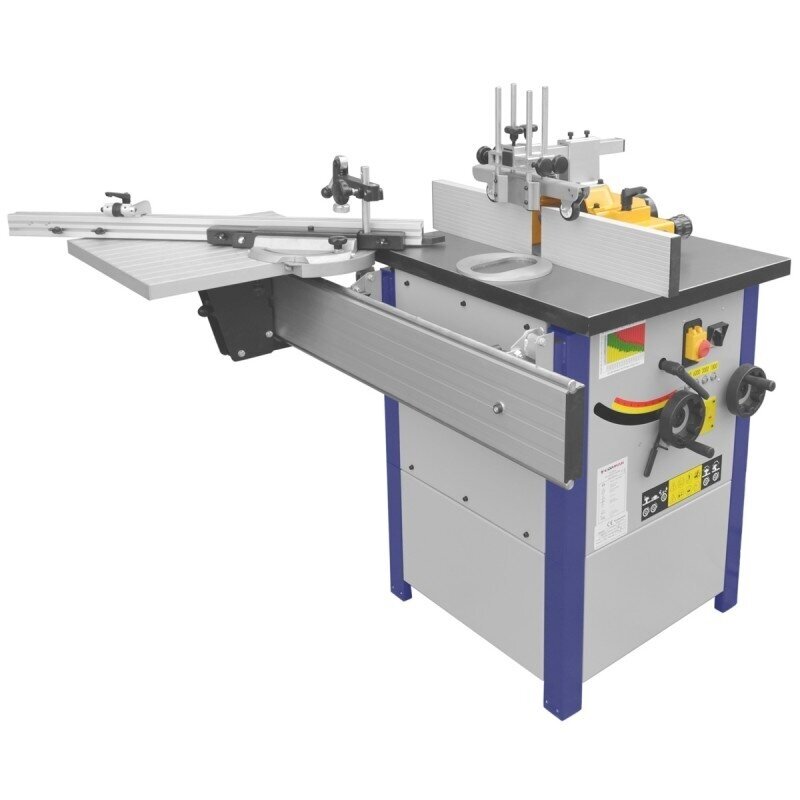

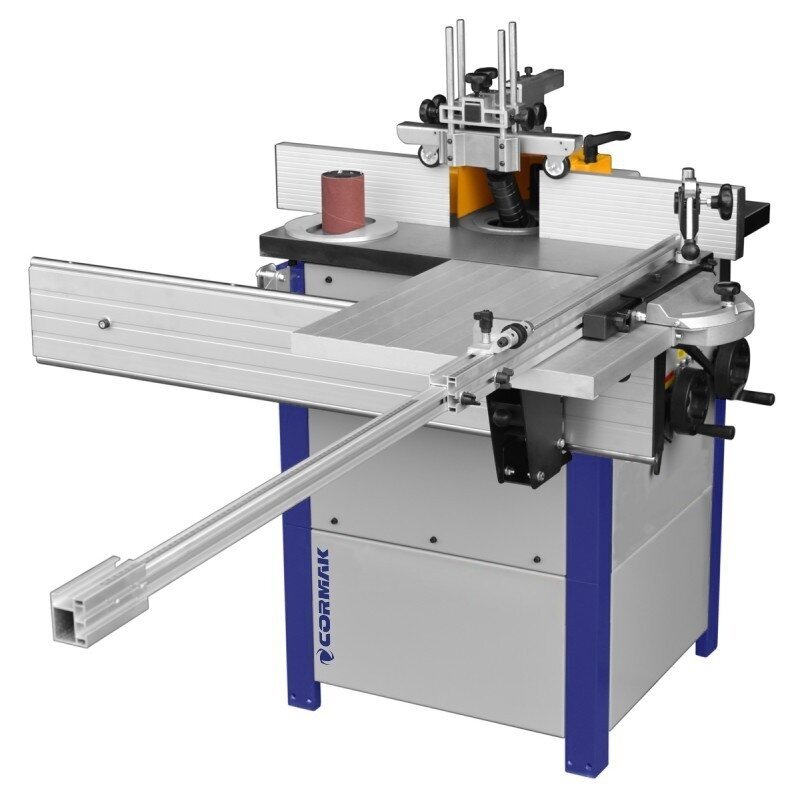

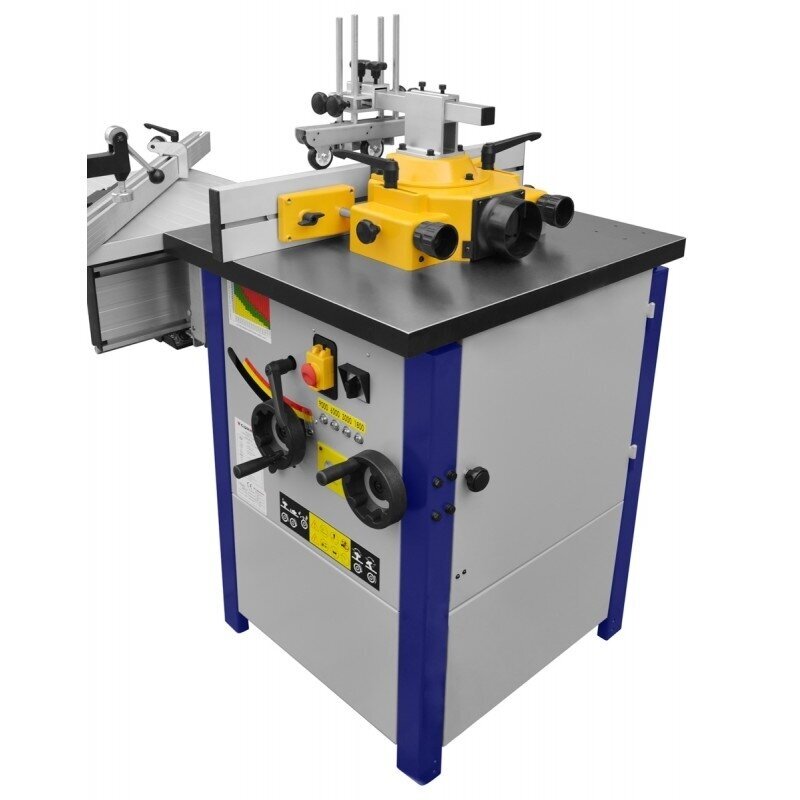

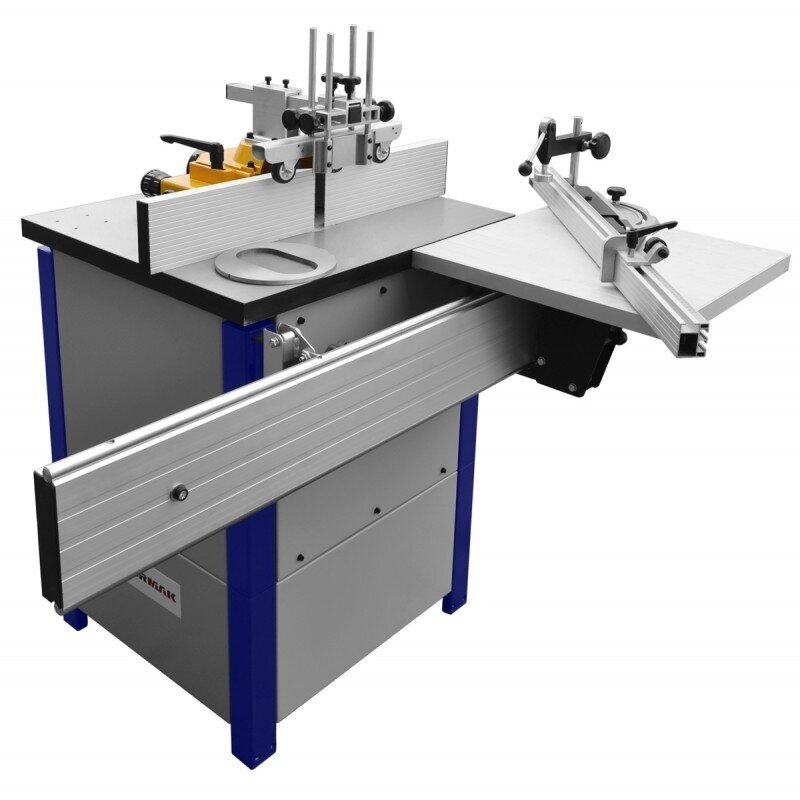

Cormak 5110 T milling machine + table for tenoning
-
Cormak 5110 T milling machine + table for tenoning
-
Most important advantages:

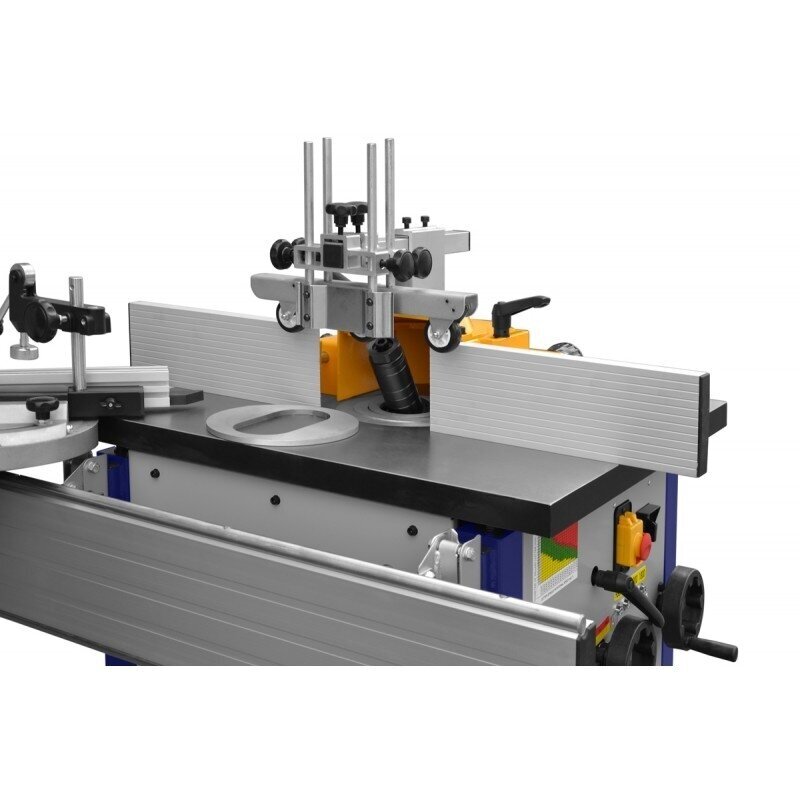

Large milling cast iron table, ground and polished.
Moulder base made of welded steel metal sheets
Precise spindle height adjustment through a big handwheel
Precise milling limiter adjustment
Stability of milling unit in bearings with column guide

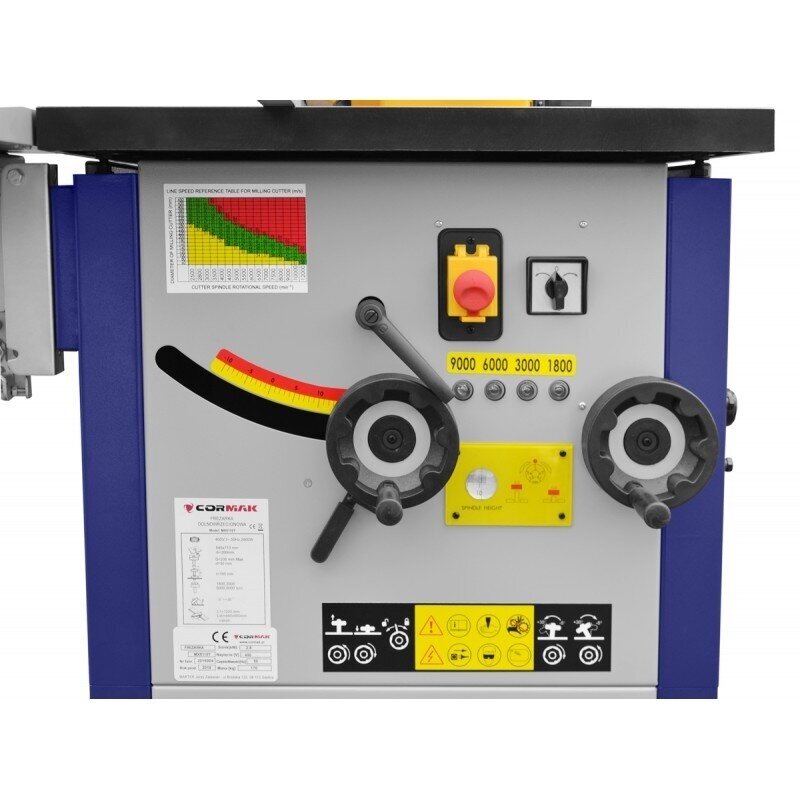

Easy switching between 4 speeds: 1800/3000/6000/9000 rpm
V-belt drive

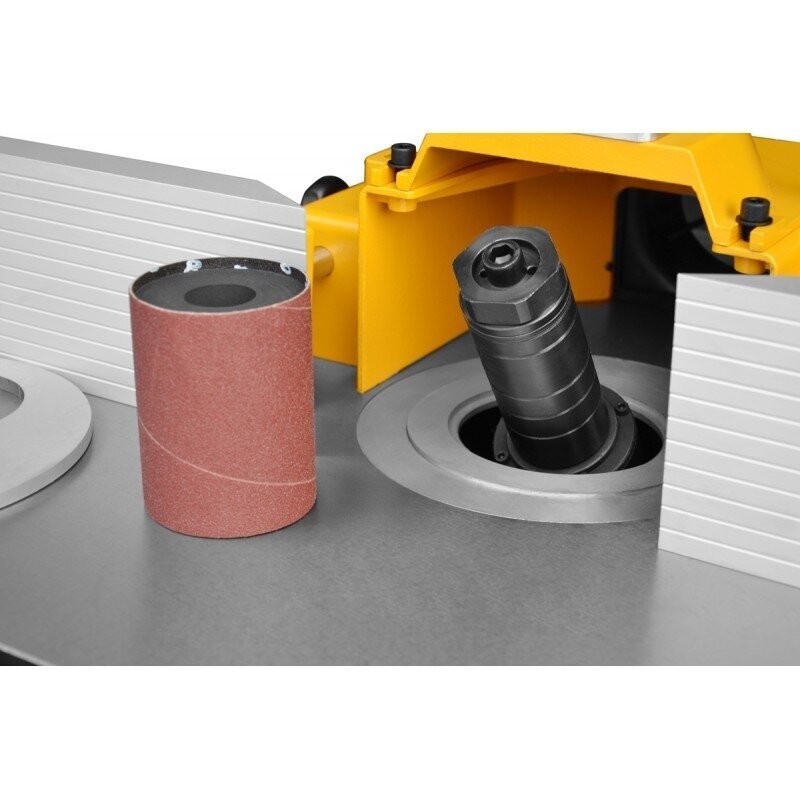

Easy exchange of milling cutter
Technical data
|
Table size
|
640×710 mm
|
|
Spindle stroke
|
100 mm
|
|
Spindle length
|
100 mm
|
|
Maximum machine diameter under table
|
80 mm
|
|
Max. machine diameter above table
|
200 mm
|
|

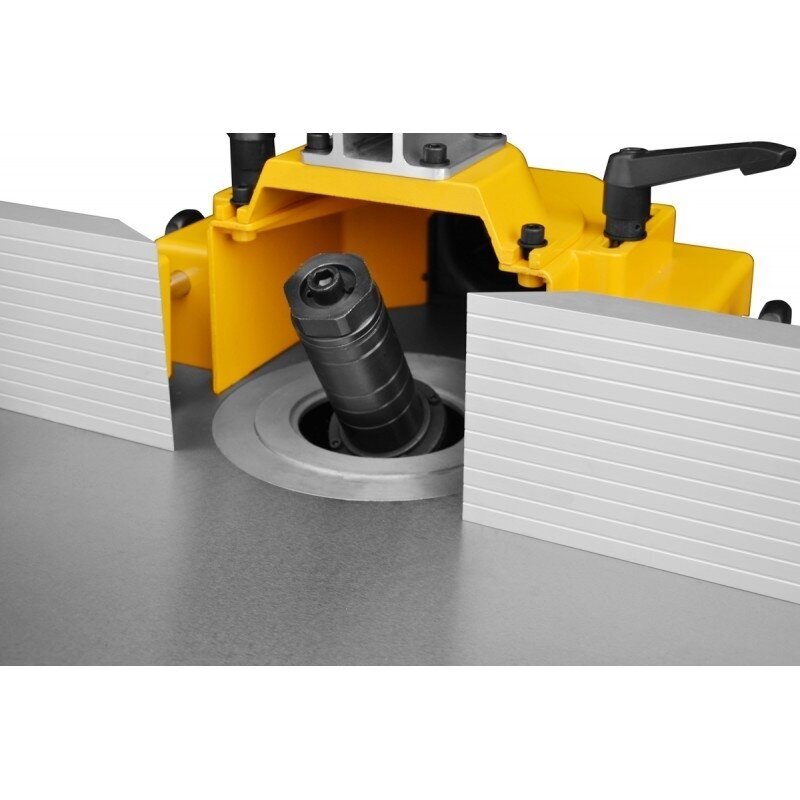

Spindle tilt
|
from 10° to 30°
|
|
Hole diameter in table
|
185 mm
|
|
Spindle diameter
|
30 mm
|
|
Spindle speeds
|
1800, 3000, 6000, 9000 rpm
|
|
Motor power
|
S1 2.8 kW, S6 4 kW
|
|
Power supply
|
400V
|
|
Weight
|
170 kg
|
-
-
