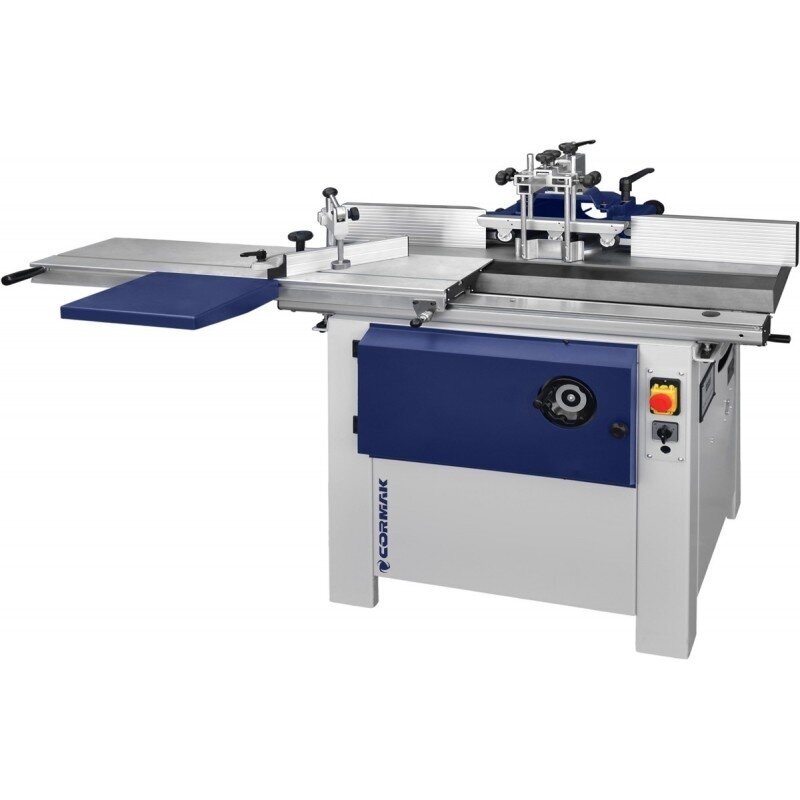

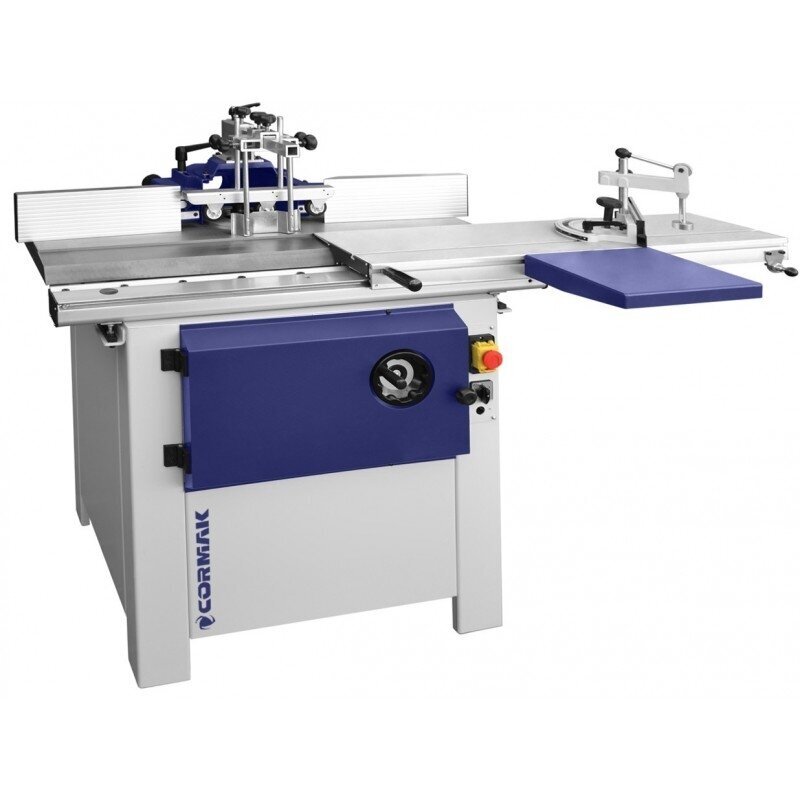

Cormak WS1000TA Spindle Moulder
-
Cormak WS1000TA Spindle Moulder
-
Most important advantages:
Large milling cast iron table, ground and polished.
Moulder base made of welded steel metal sheets
Precise spindle height adjustment through a big handwheel
Precise milling limiter adjustment
Stability of milling unit in bearings with column guide
Easy switching between 4 speeds: 1800/3000/6000/9000 rpm
V-belt drive
Easy exchange of milling cutter
Technical data
|
Spindle diameter
|
30 mm
|
|
Spindle speed
|
1800, 3000, 6000, 9000 rpm
|
|
Spindle stroke
|
100 mm
|
|
Table dimensions (length×width)
|
1000×360 mm
|
|
Movable table dimensions (length×width)
|
1000×240 mm
|
|
Table height
|
900 mm
|
|
Maximum cutter diameter
|
180 mm
|
|
Spindle tilt
|
+5/-45°
|
|
Motor power
|
2.8 kW
|
|
Weight
|
270 kg
|
-
-
